Not crashed, but repainted. Paint thickness heatmap

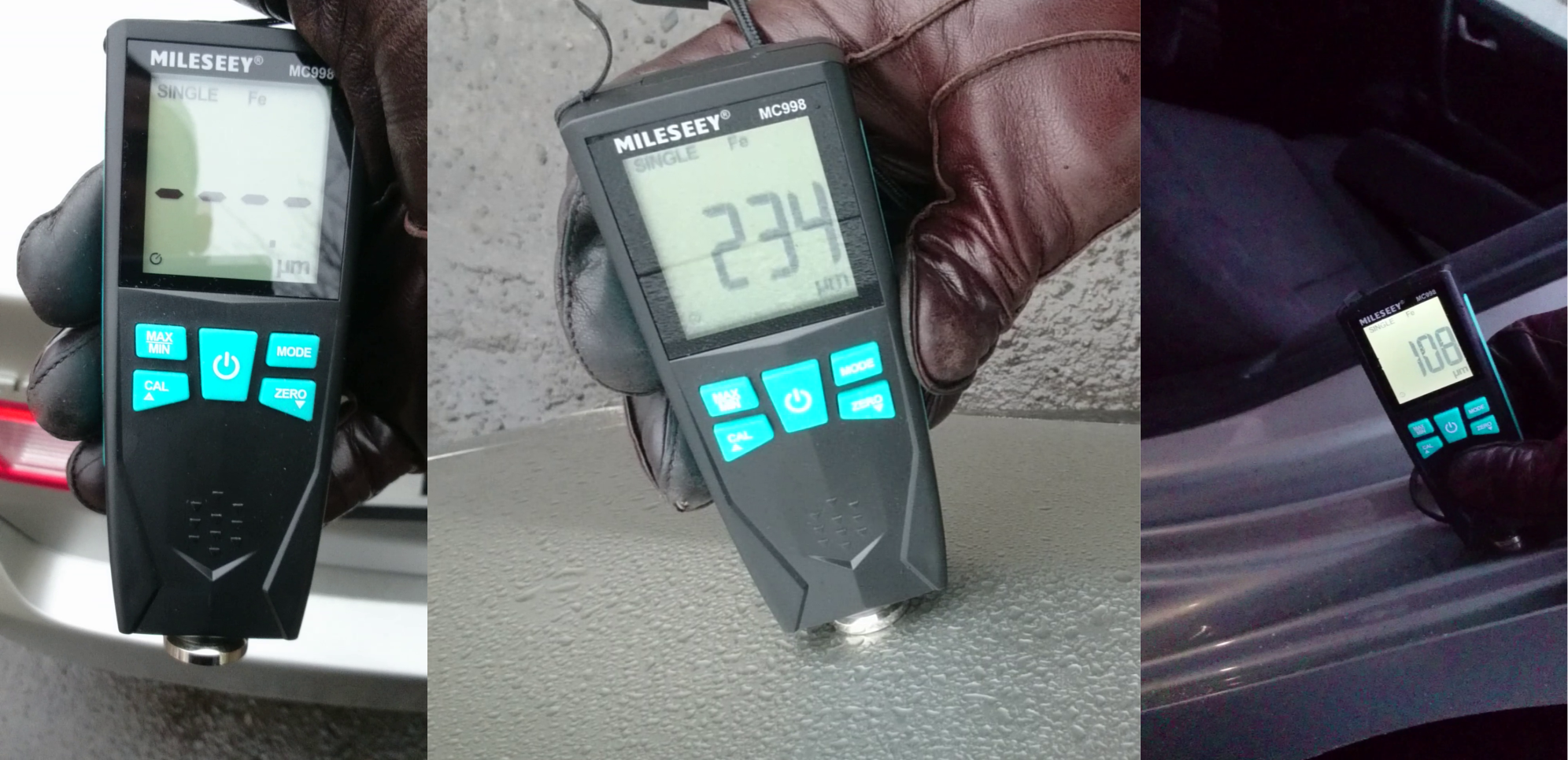

The measurements were taken with the Mileseey MC998 thickness gauge.

/posts/car/037/02.png

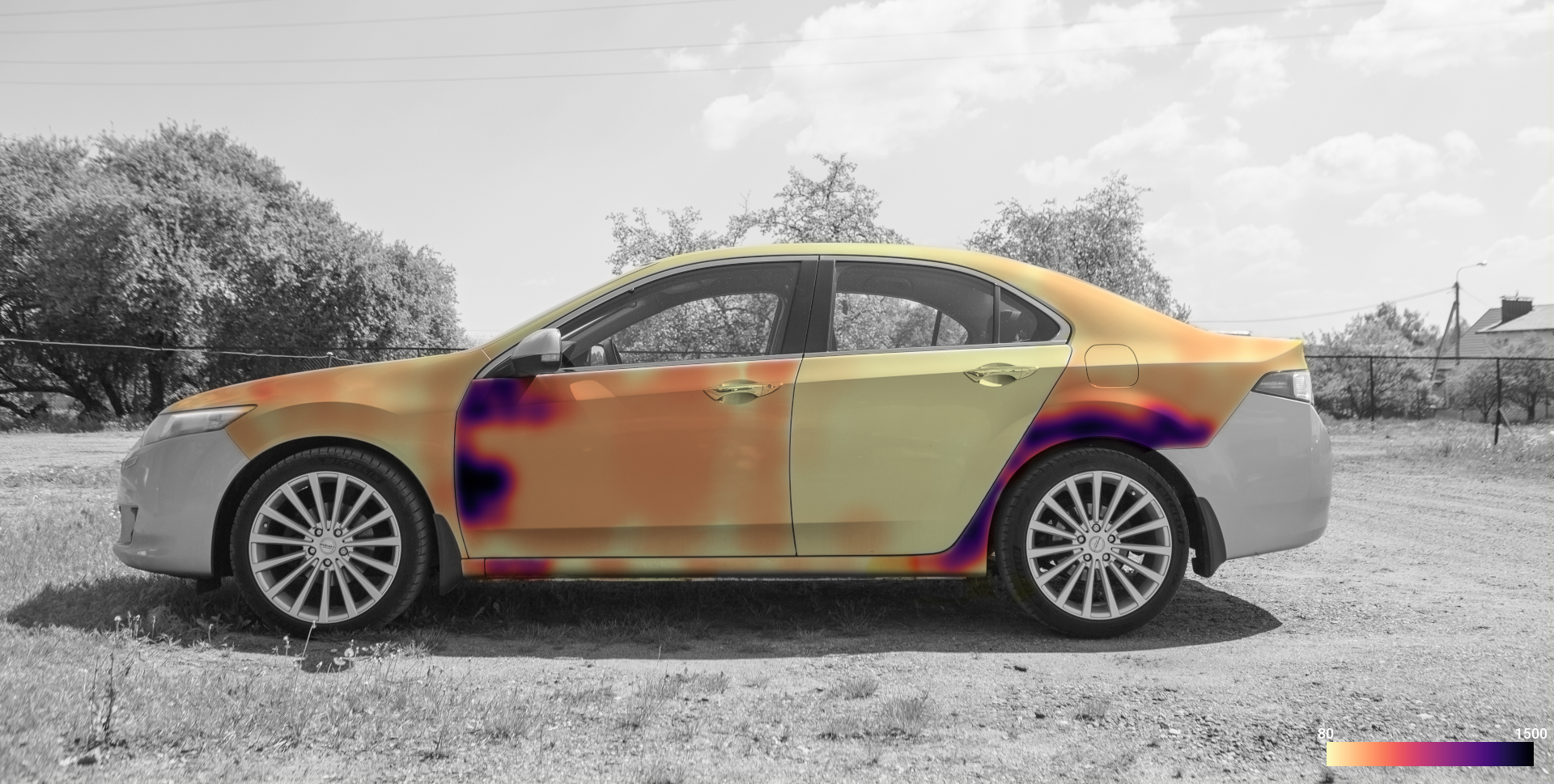

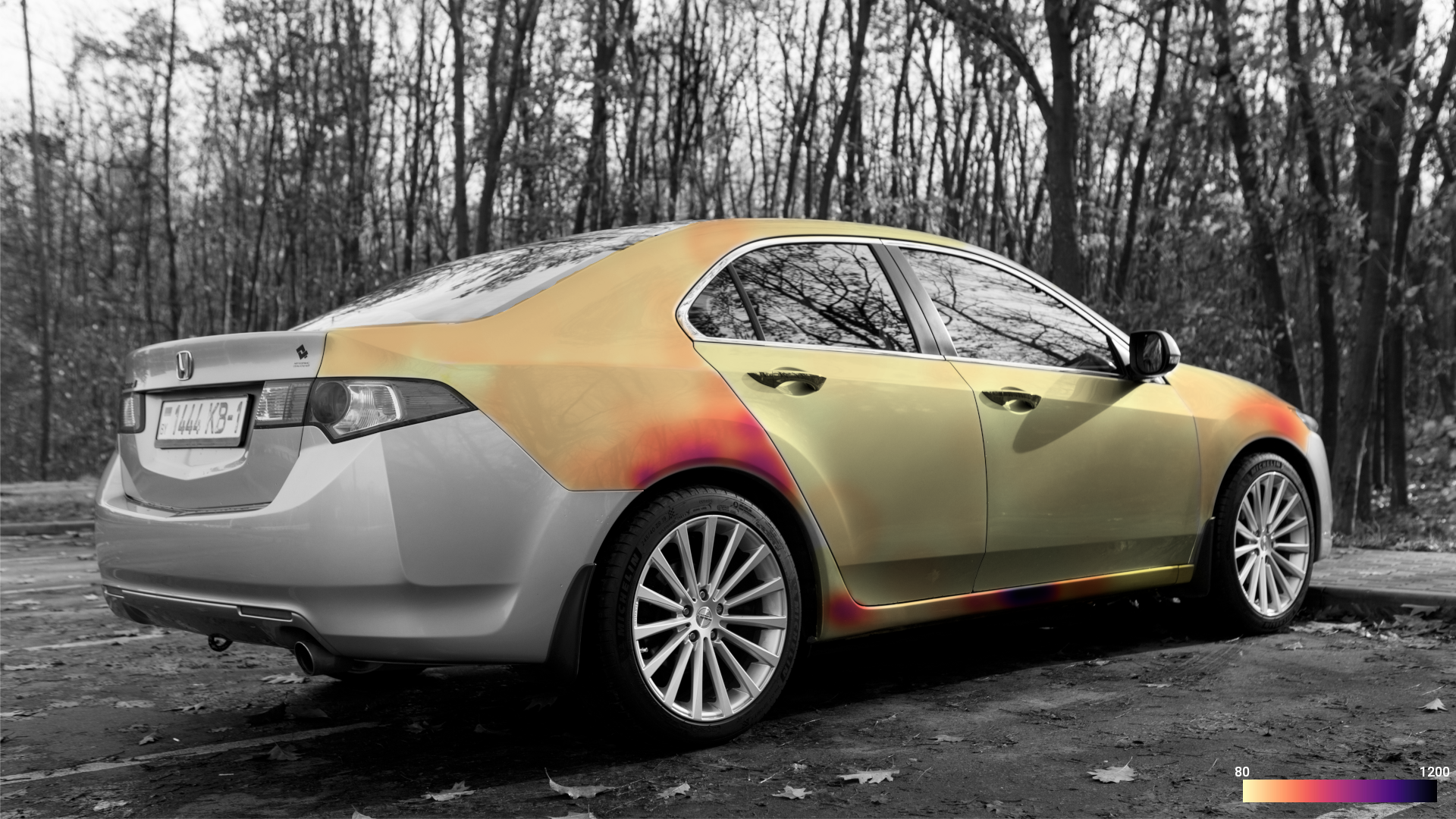

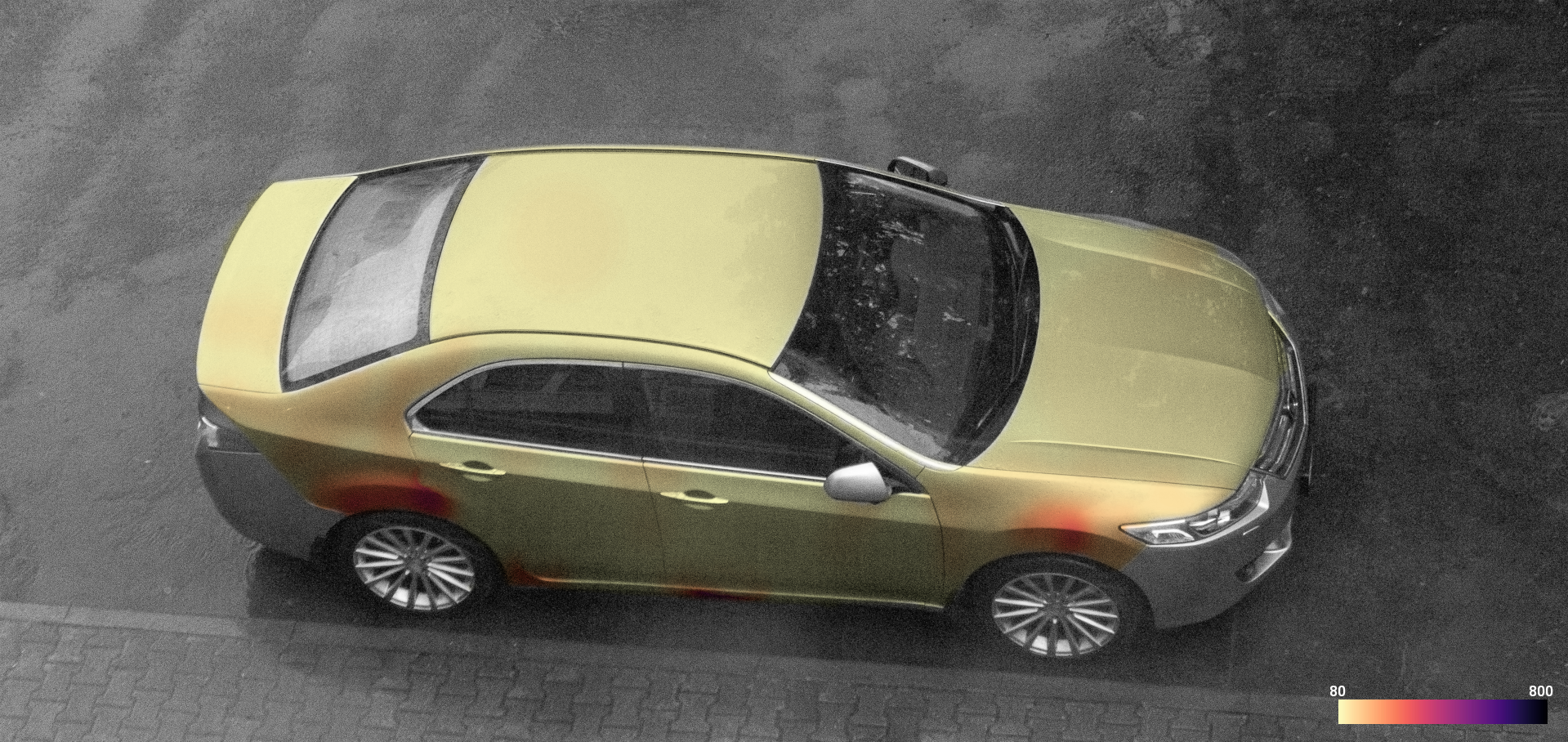

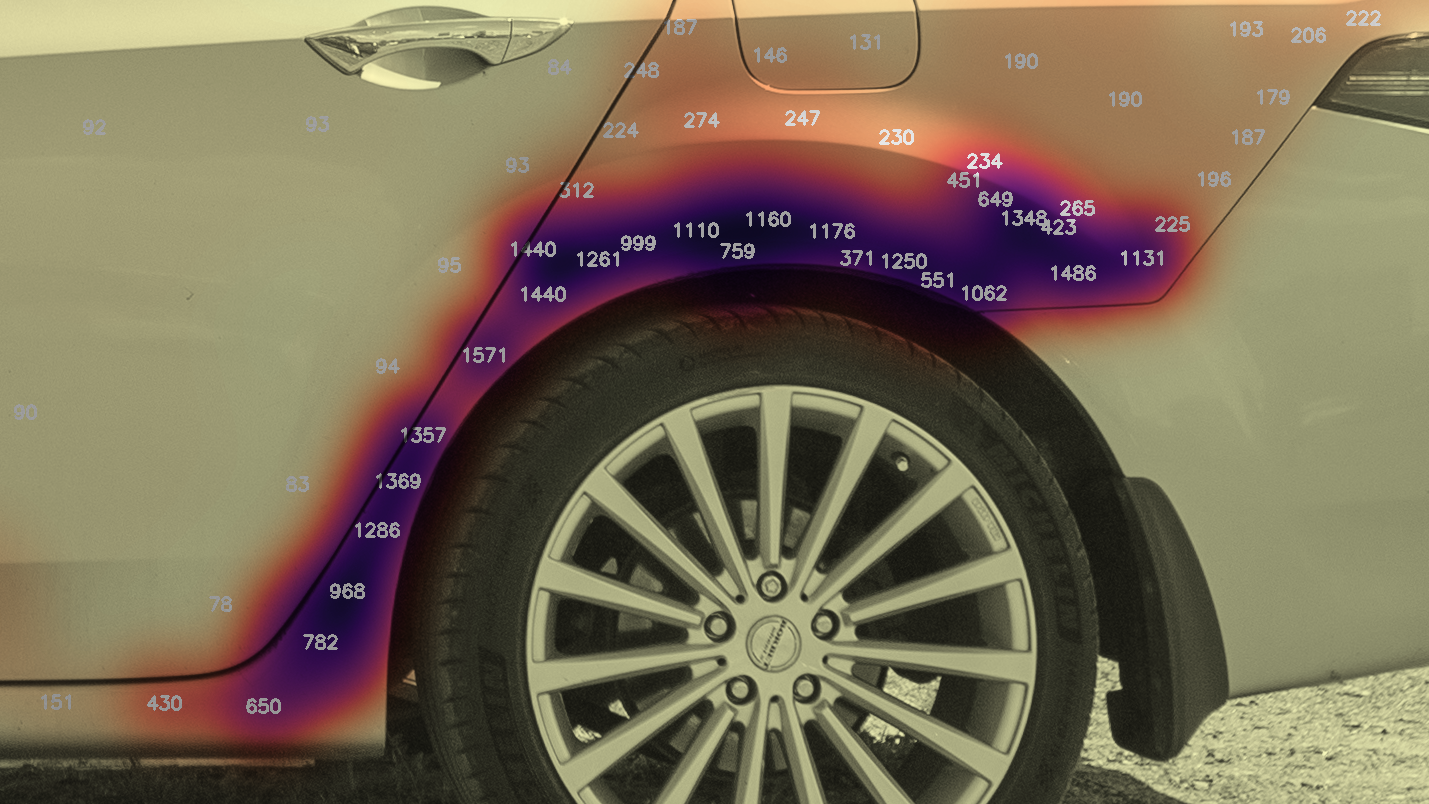

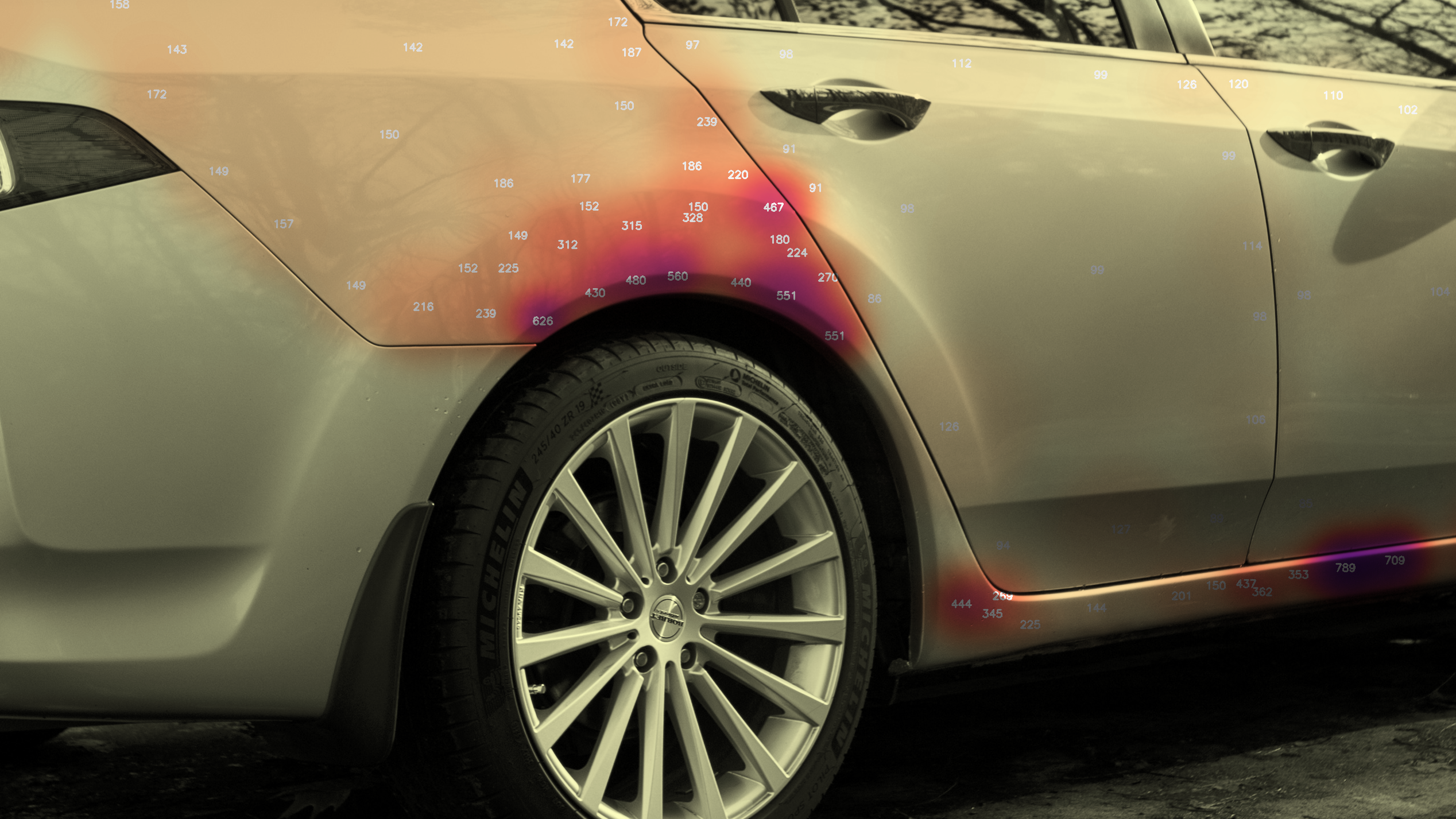

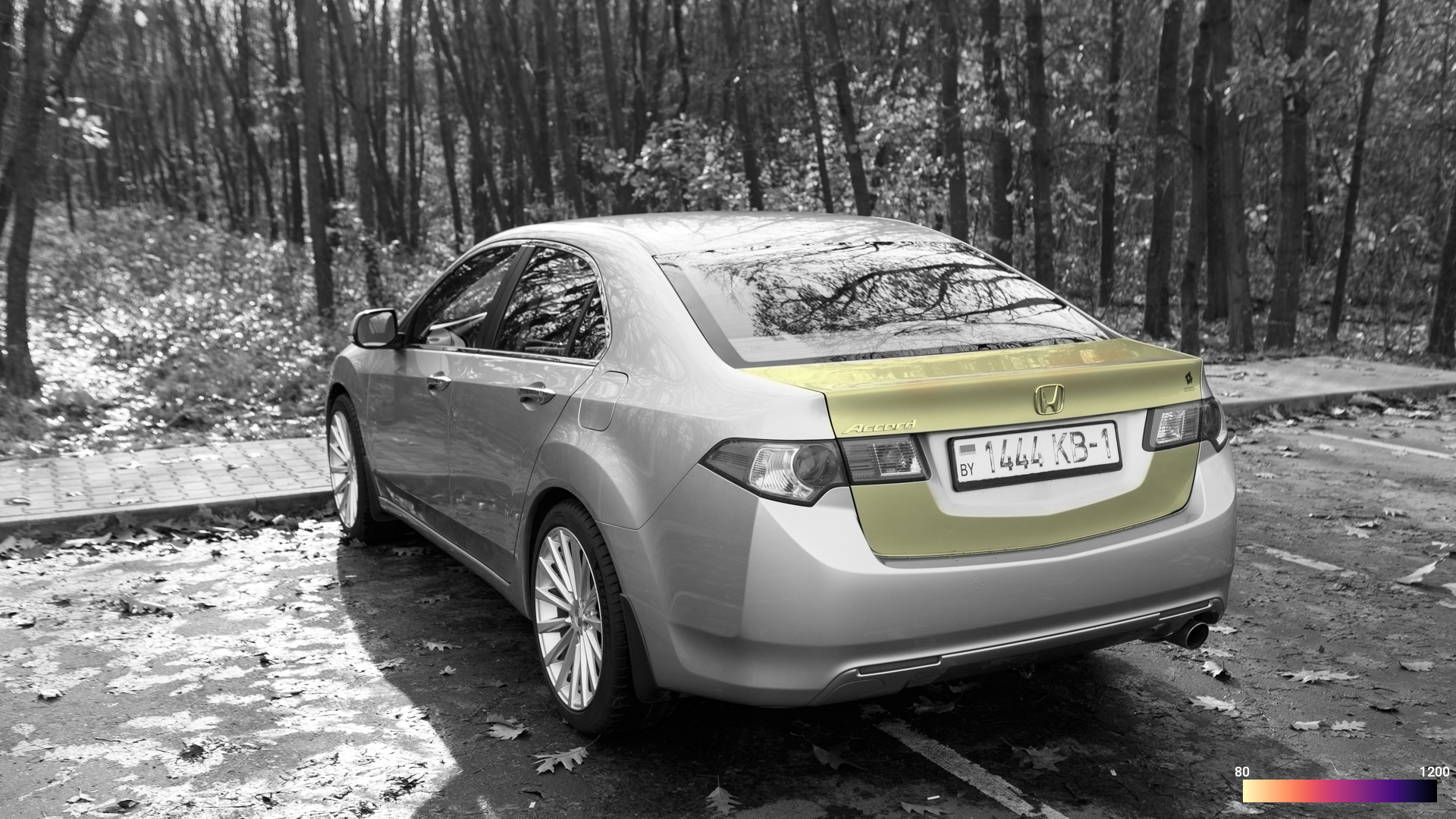

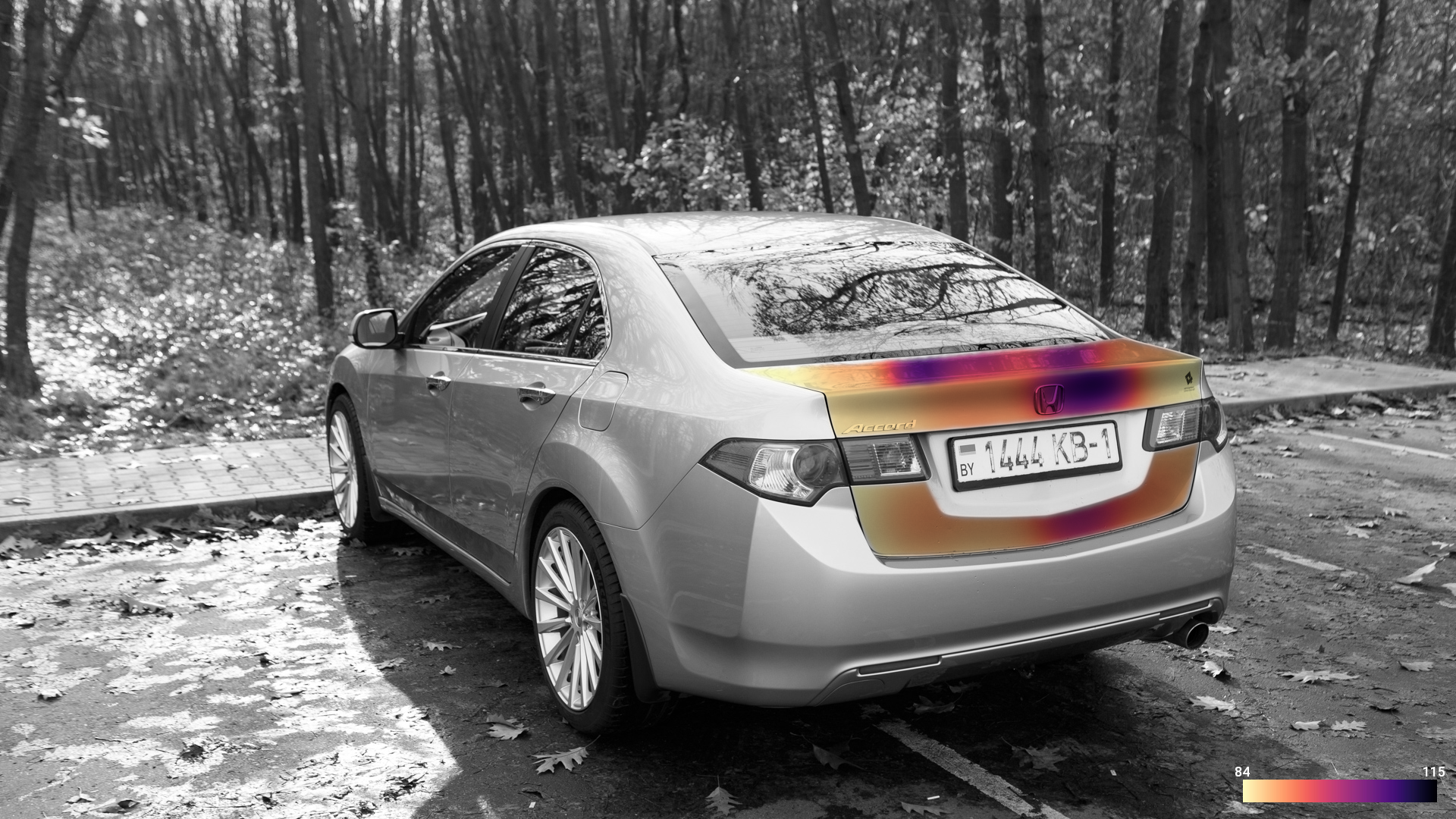

The processing of the measurements and the creation of a thermal map of the paint thickness were done using specialized software not widely available.

/posts/car/037/01.png /posts/car/037/03.png /posts/car/037/04.png /posts/car/037/05.png /posts/car/037/06.png /posts/car/037/07.png /posts/car/037/08.png

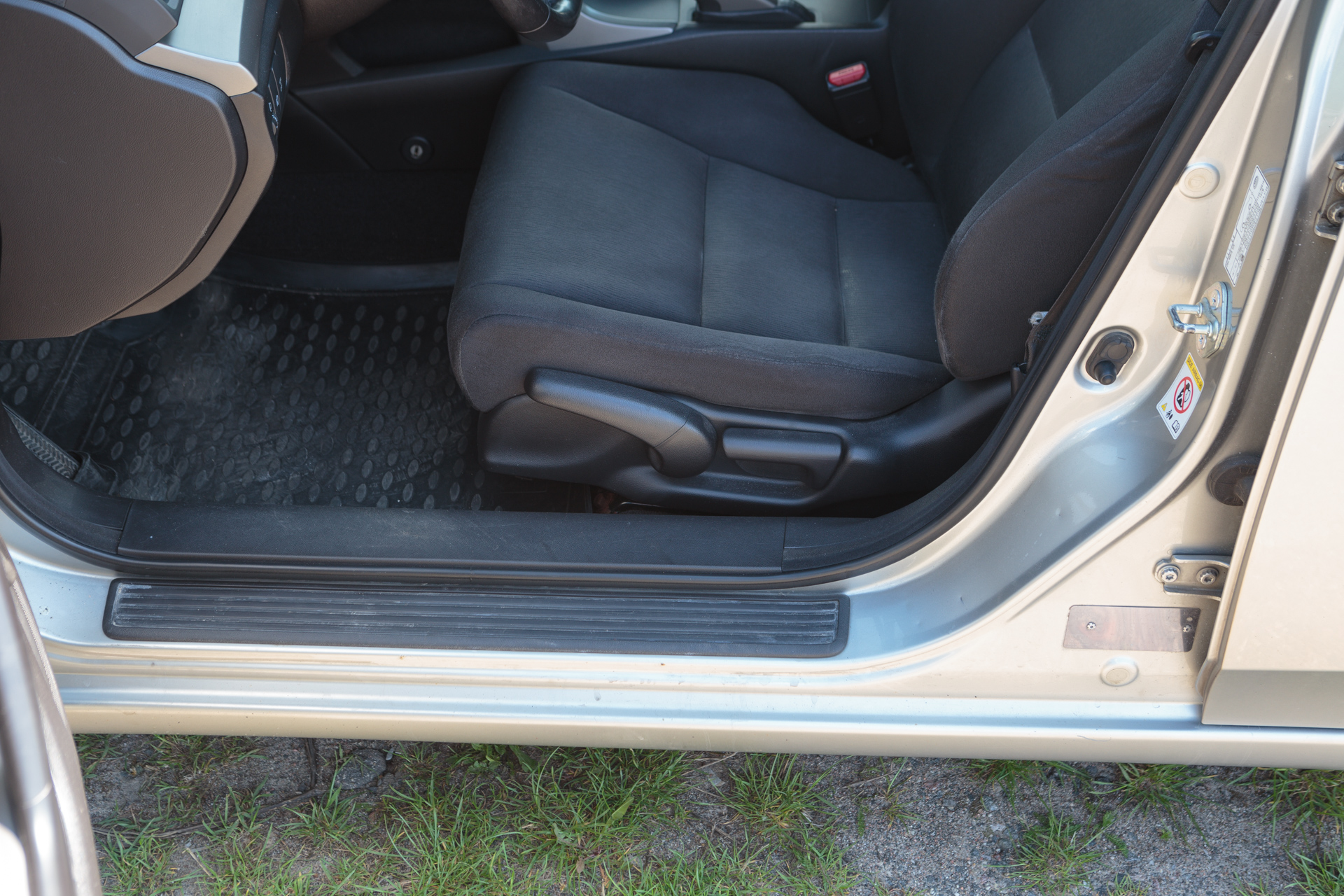

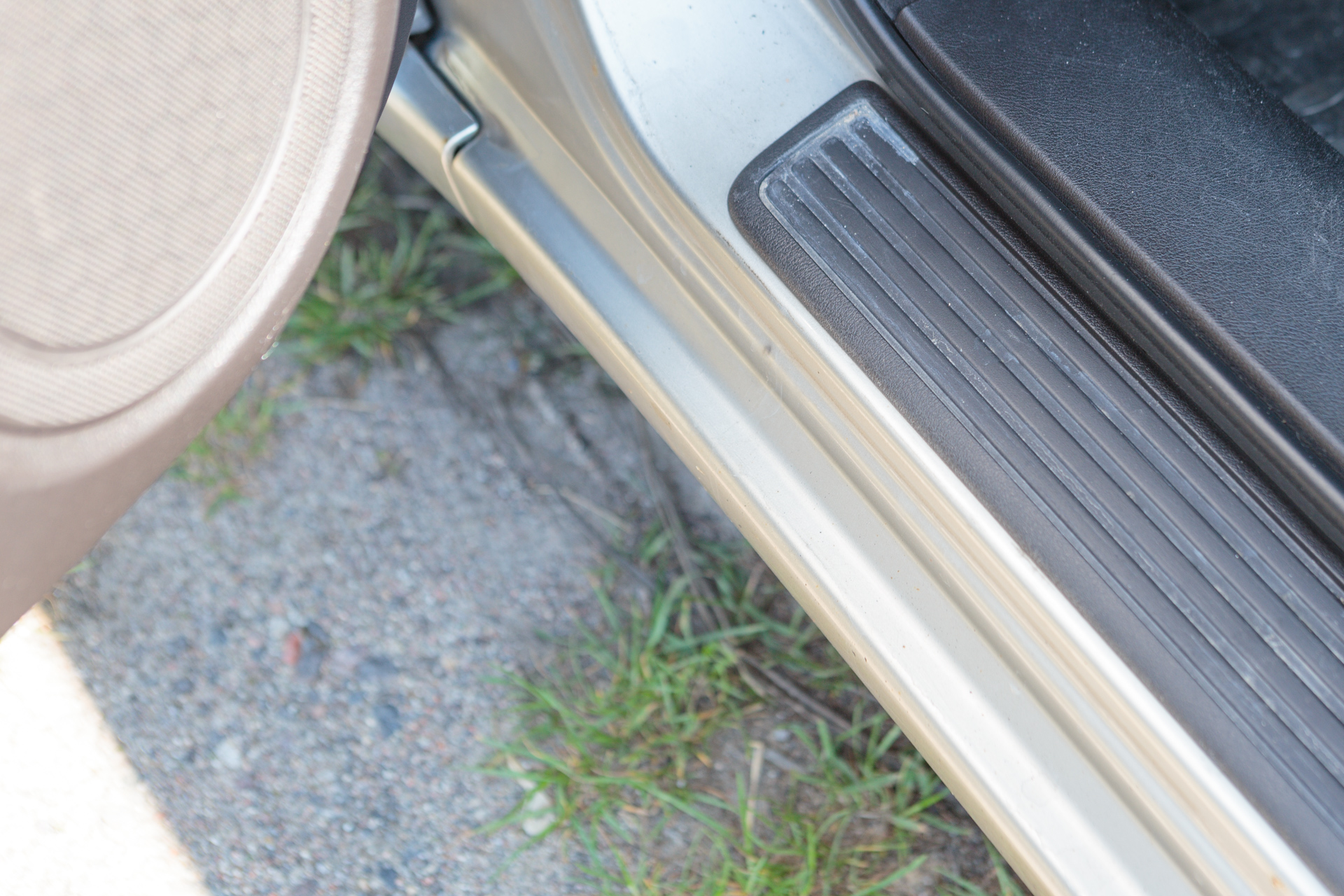

Door sills and thresholds ranged from 54-112 µm.

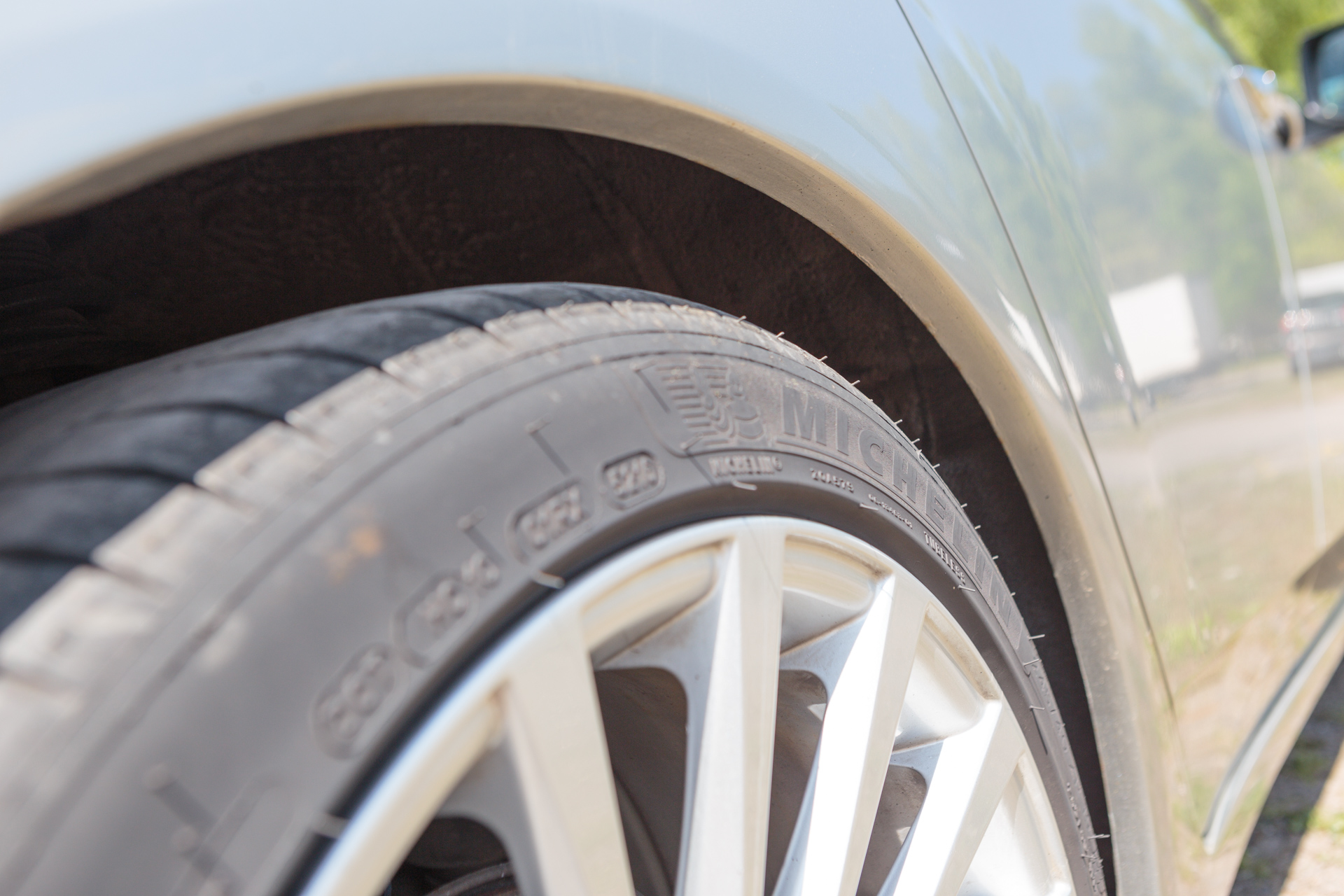

  • Both left and right fenders had parking chips, likely from doors.

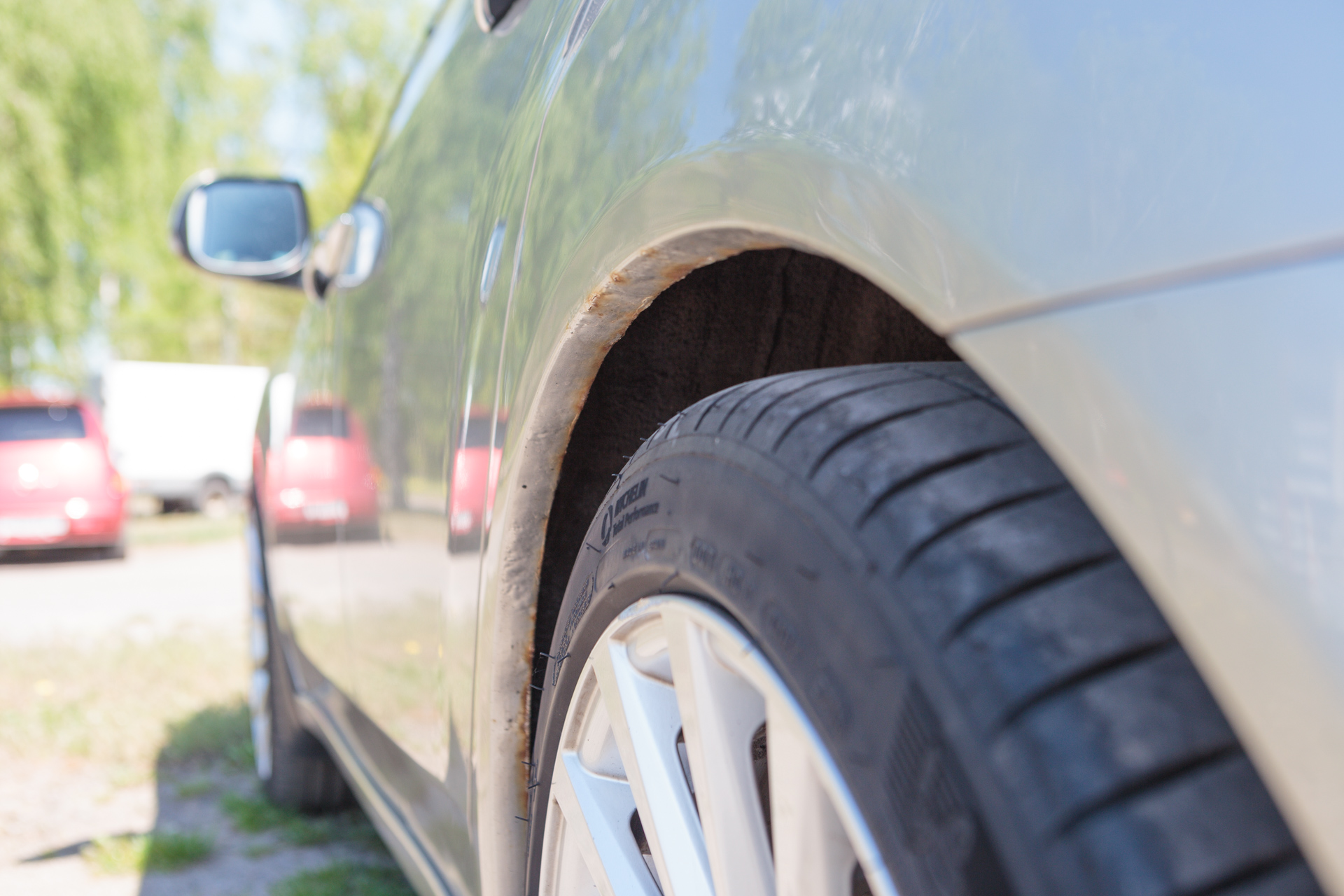

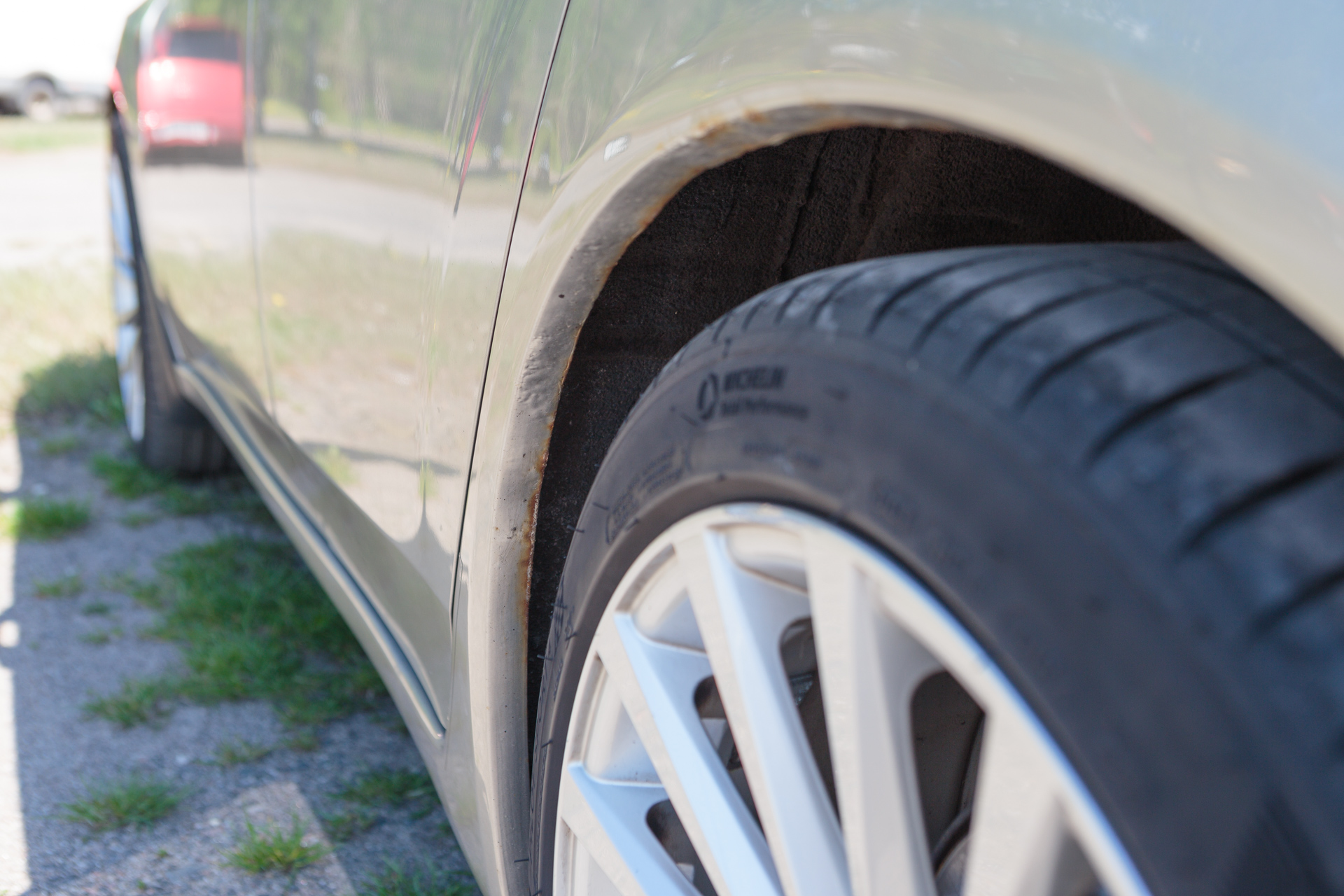

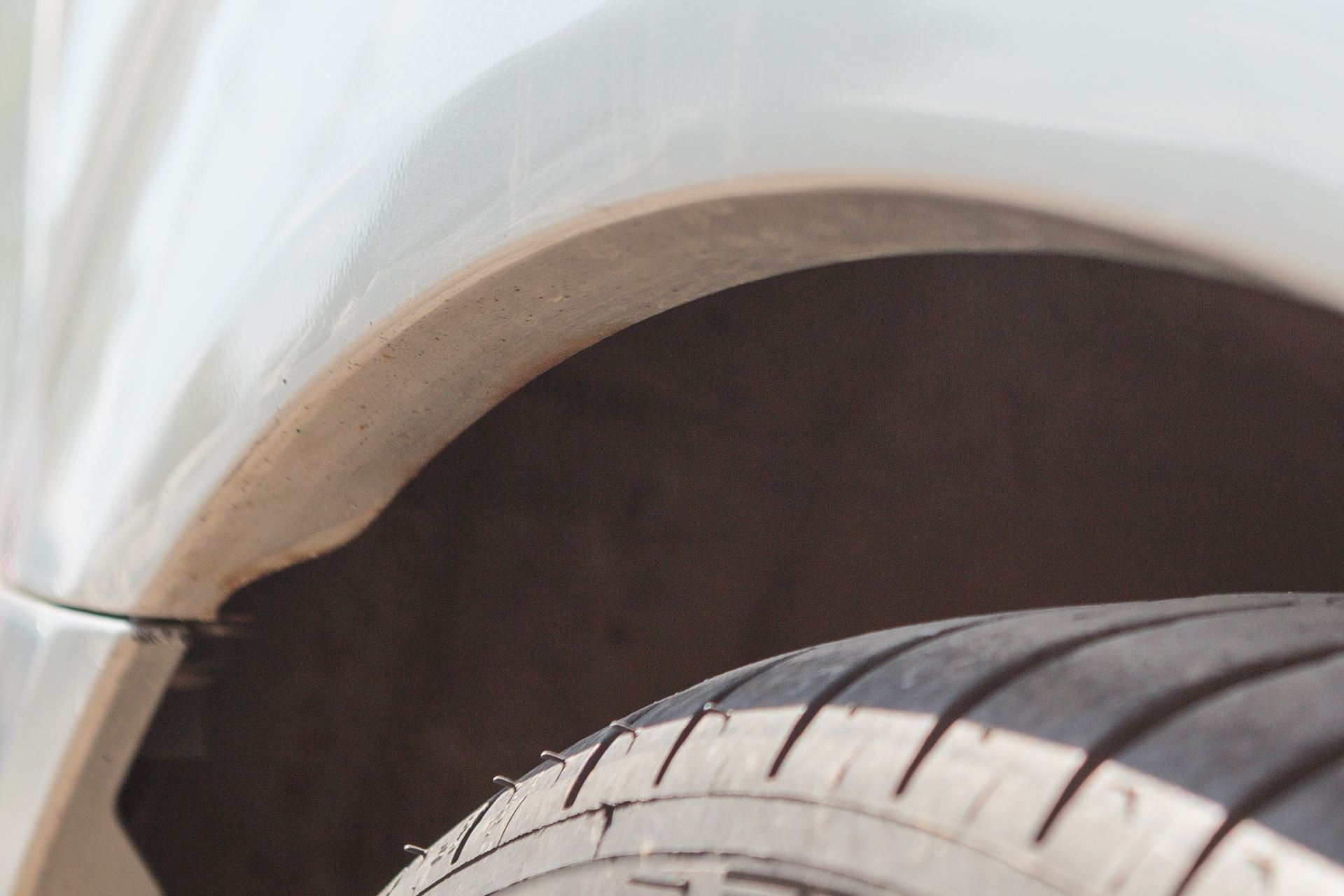

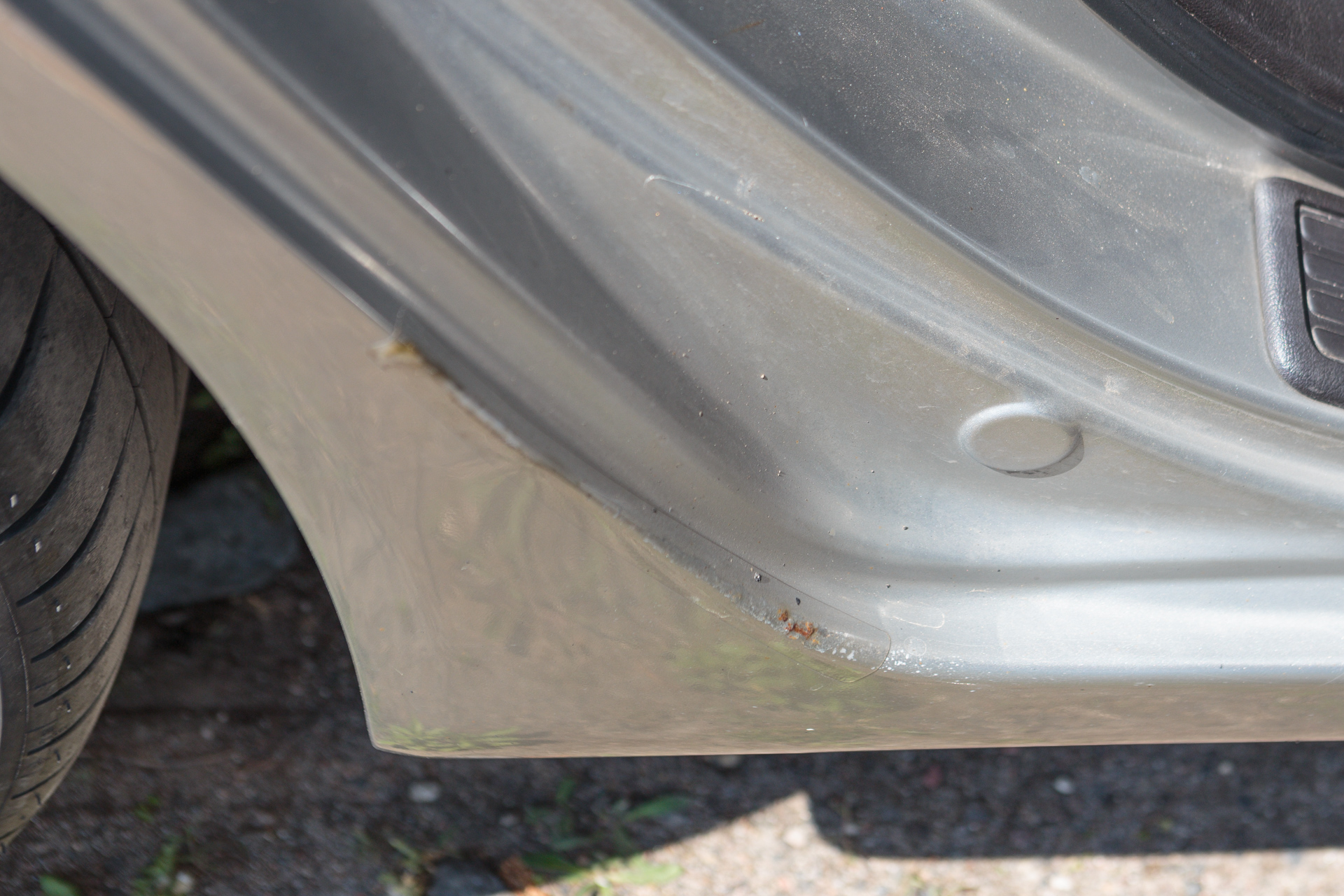

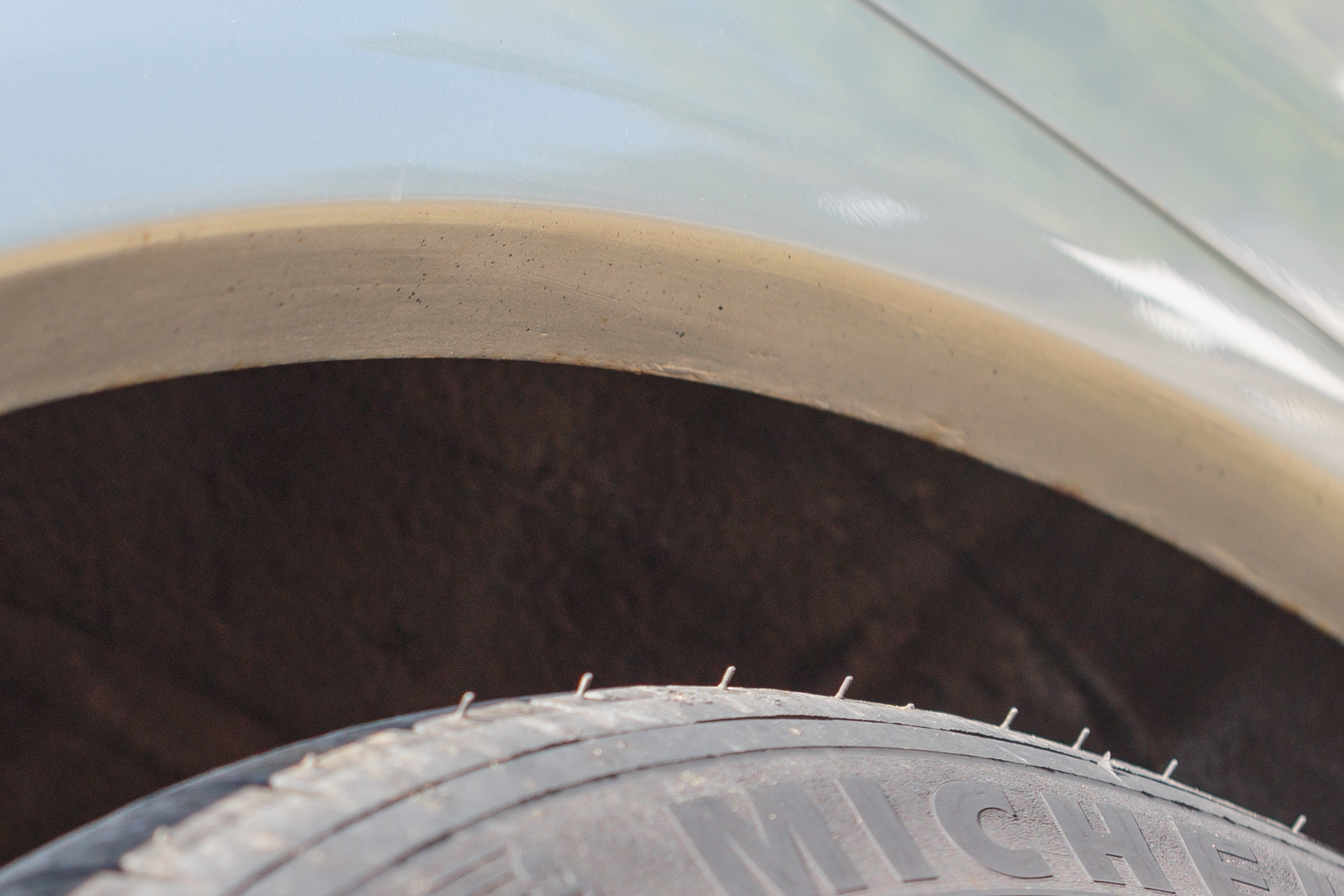

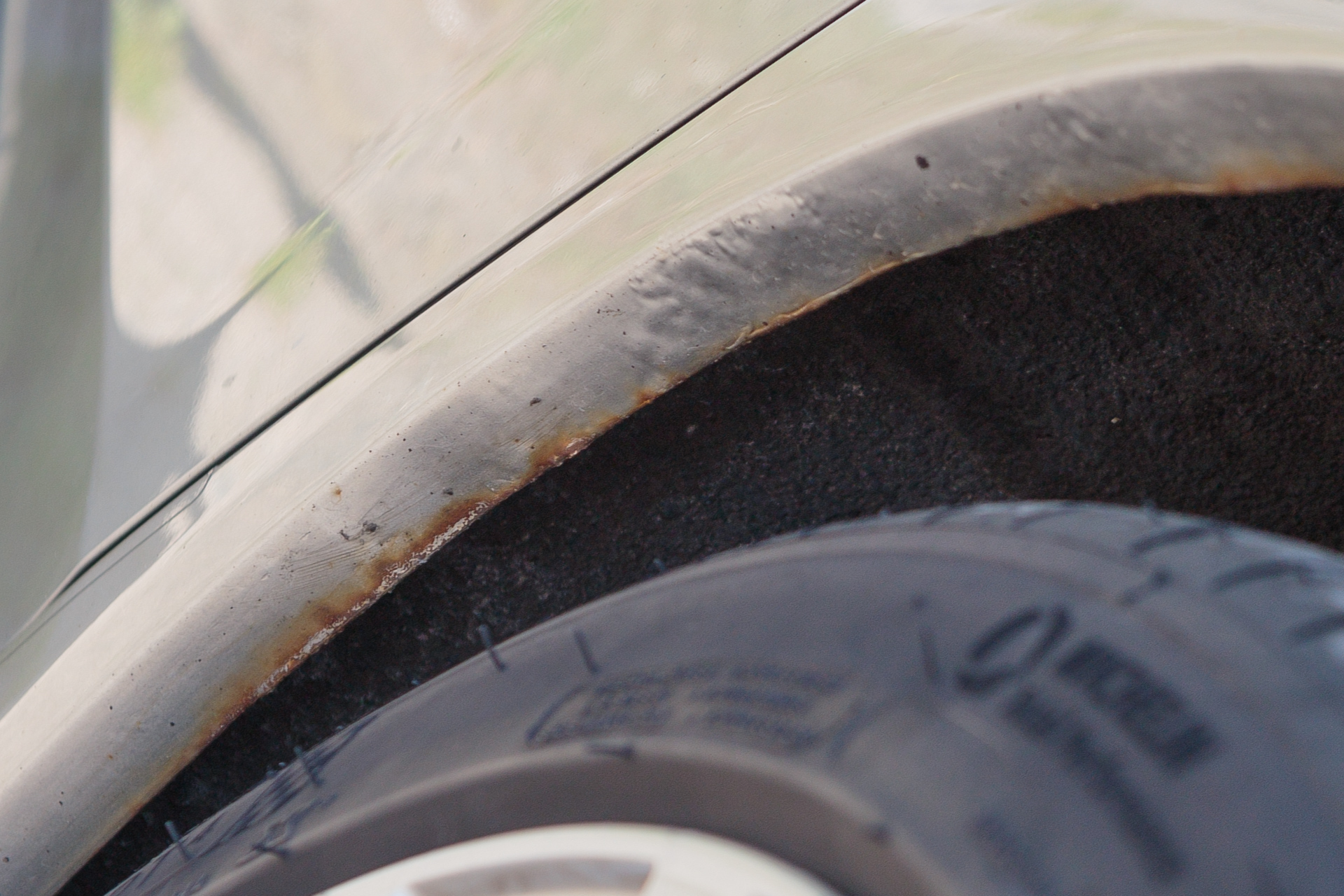

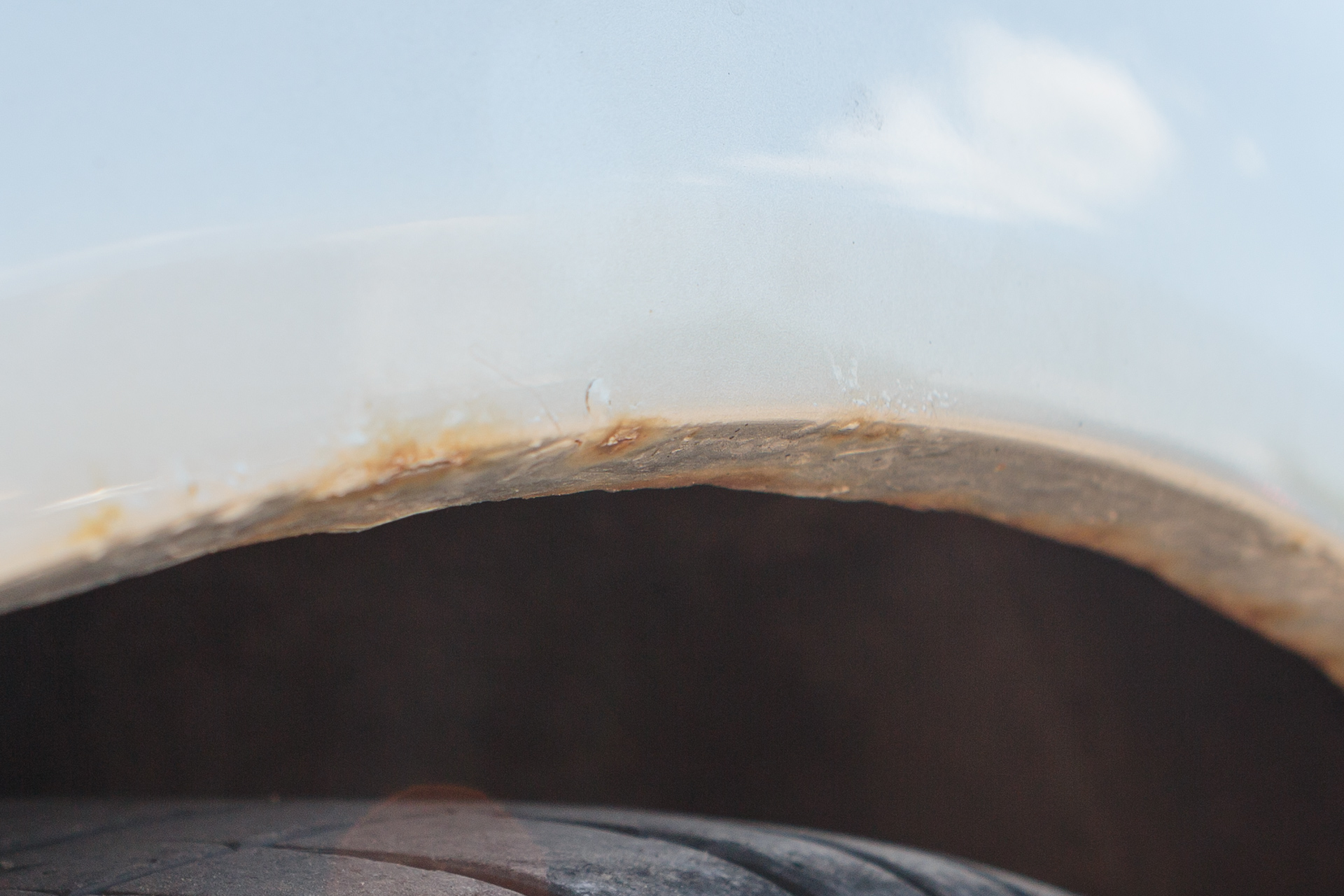

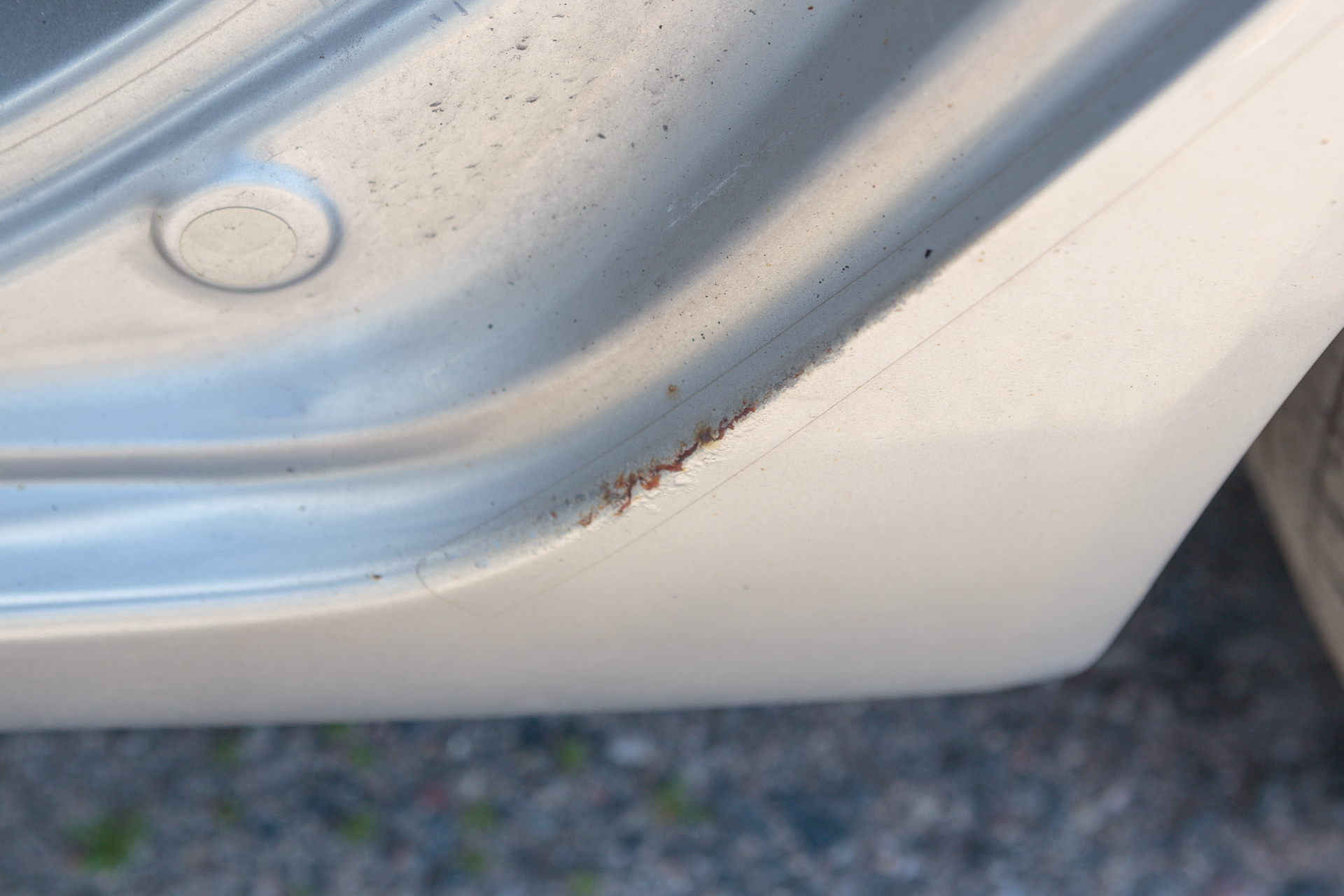

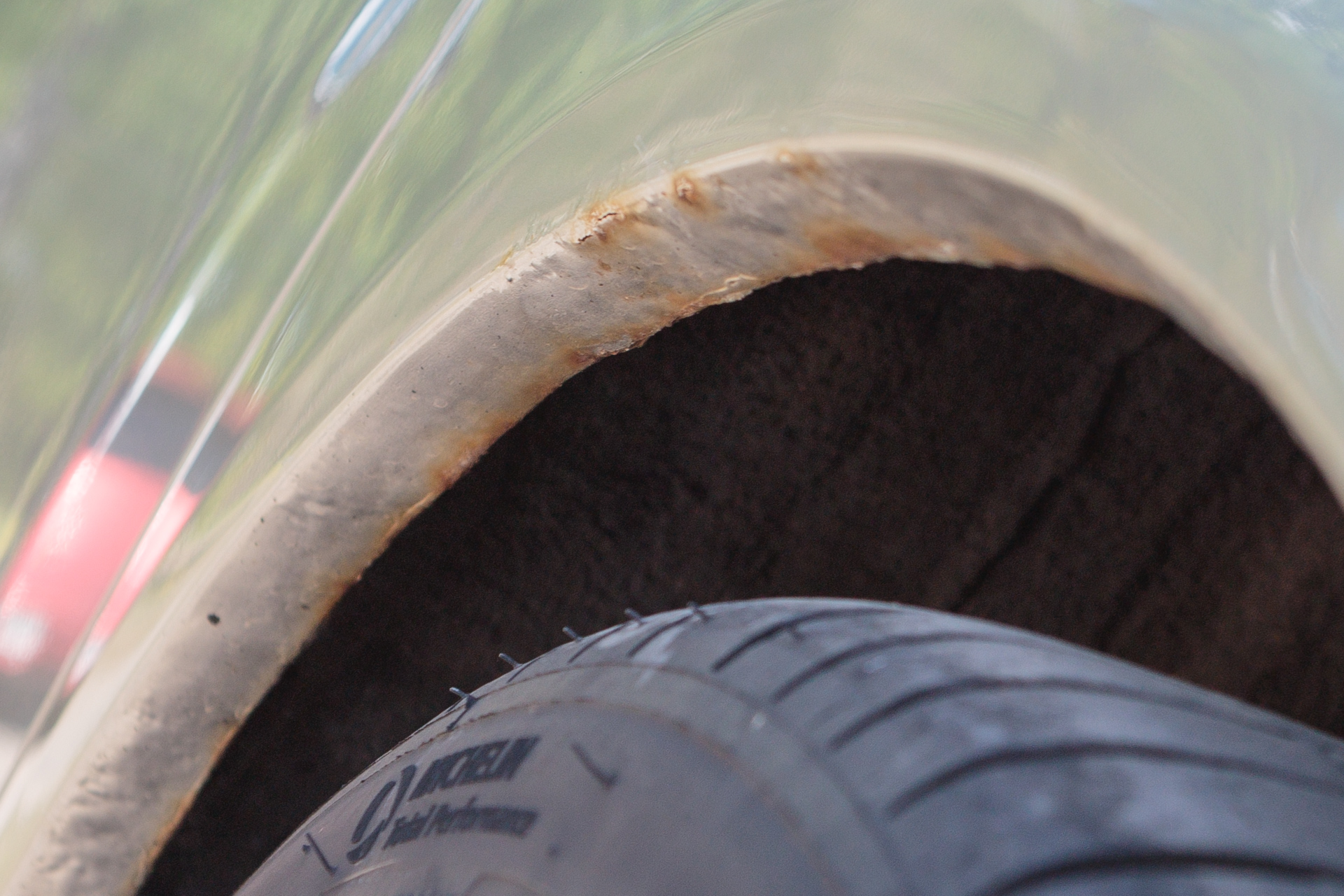

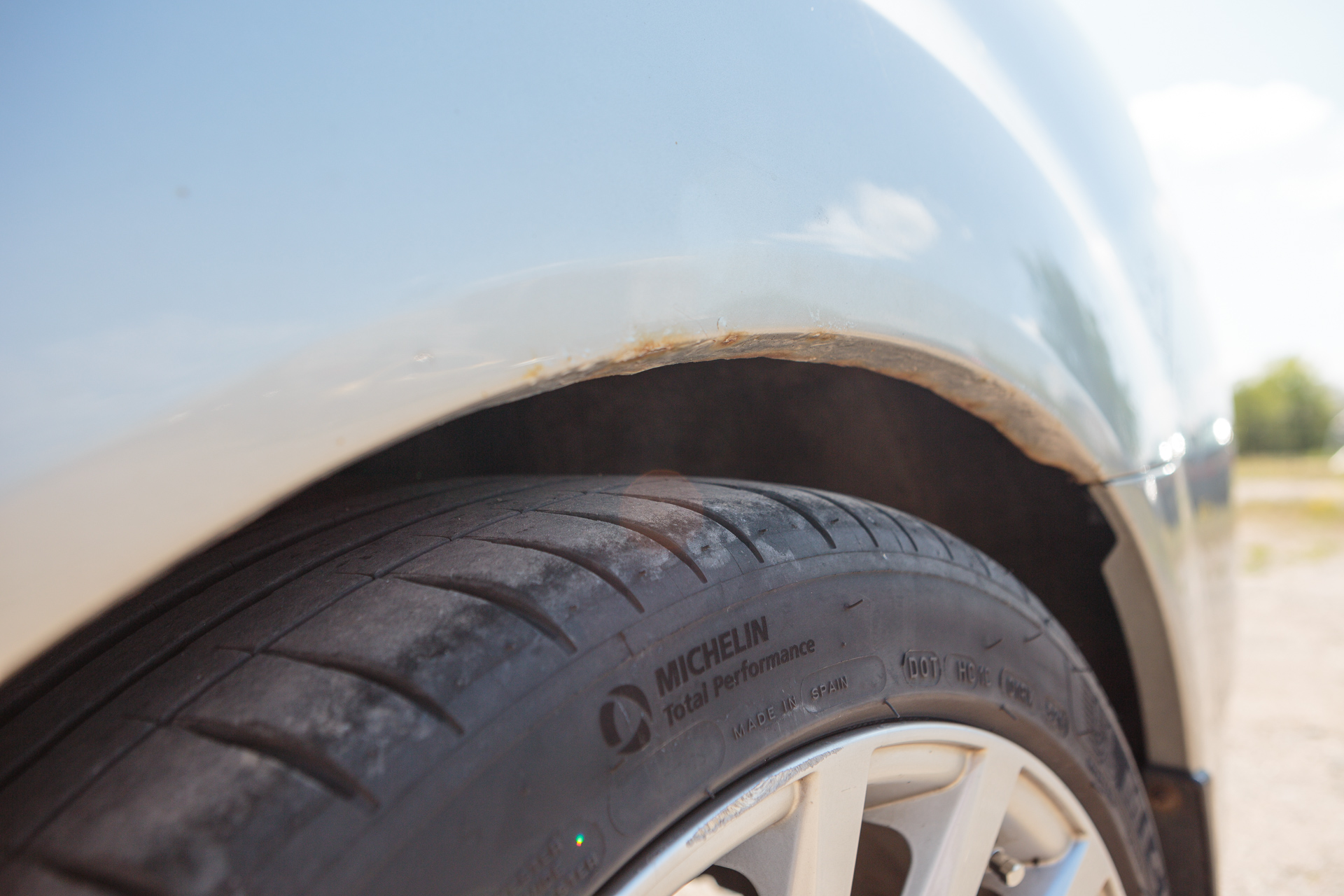

  • The edges of the rear wheel arches started to show corrosion, necessitating repair and welding.

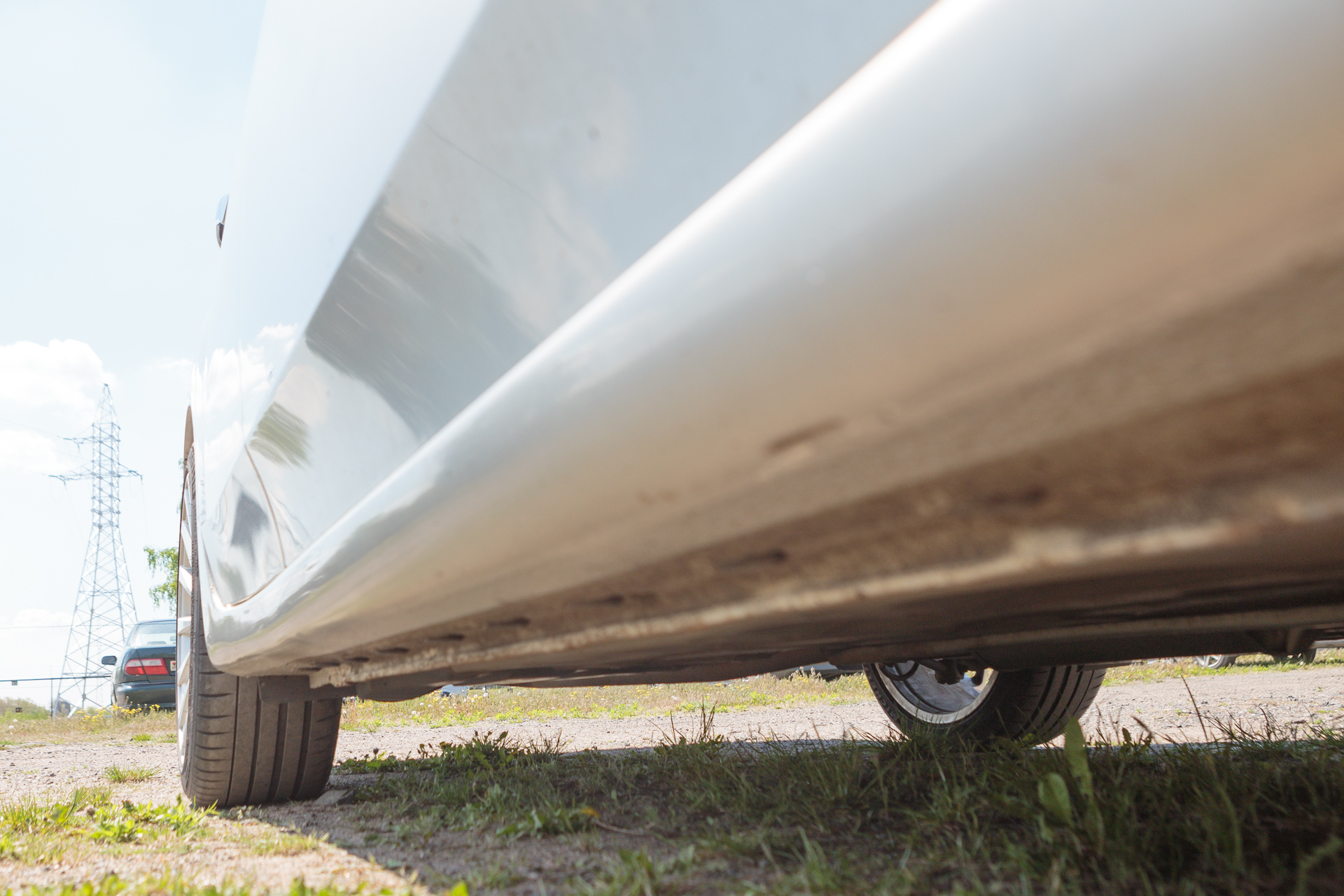

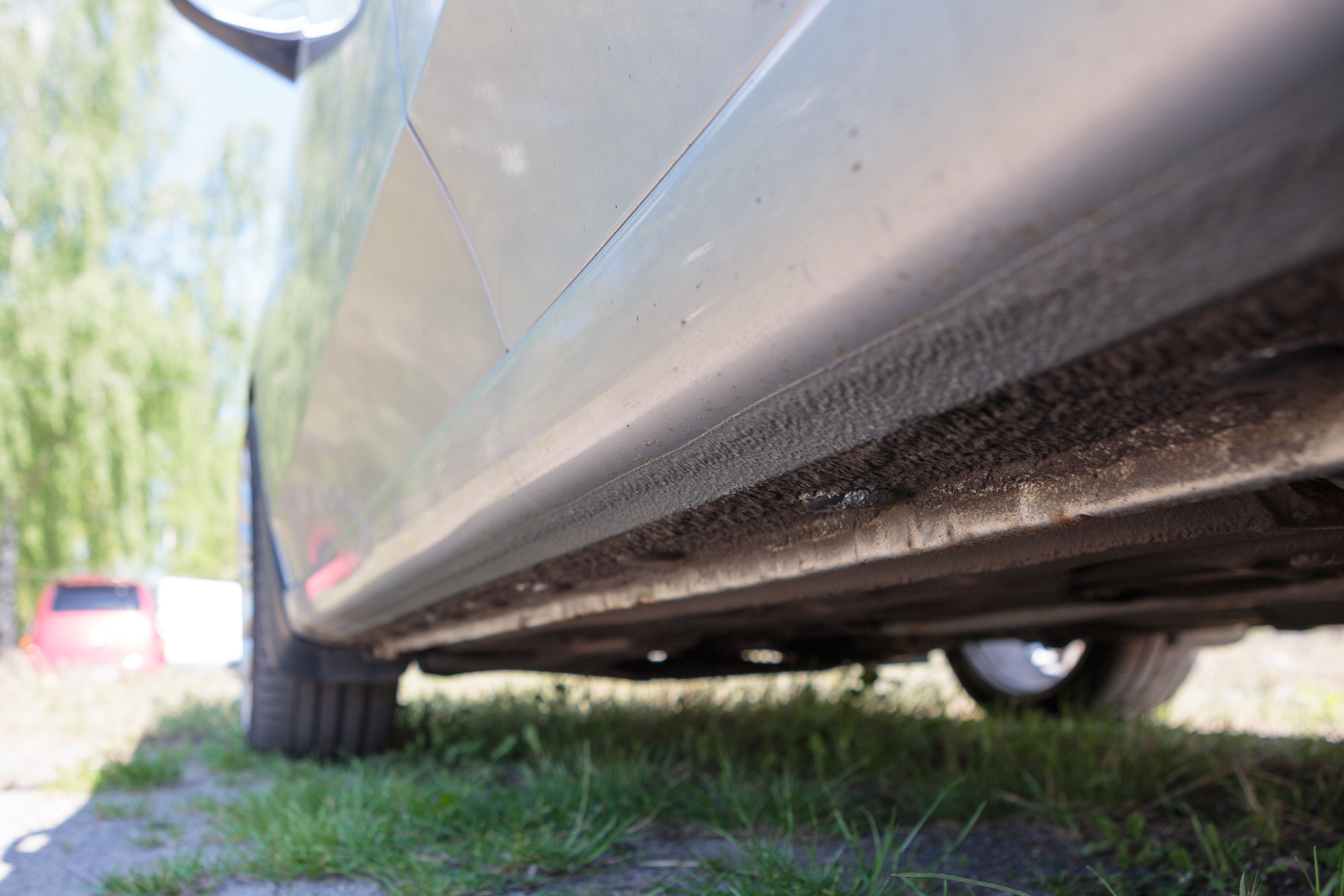

  • A spot on the right sill was accidentally scratched to the metal during service at a repair shop.
  • According to the previous owner, the driver’s door was scraped in a parking incident. It has not been painted during my ownership.

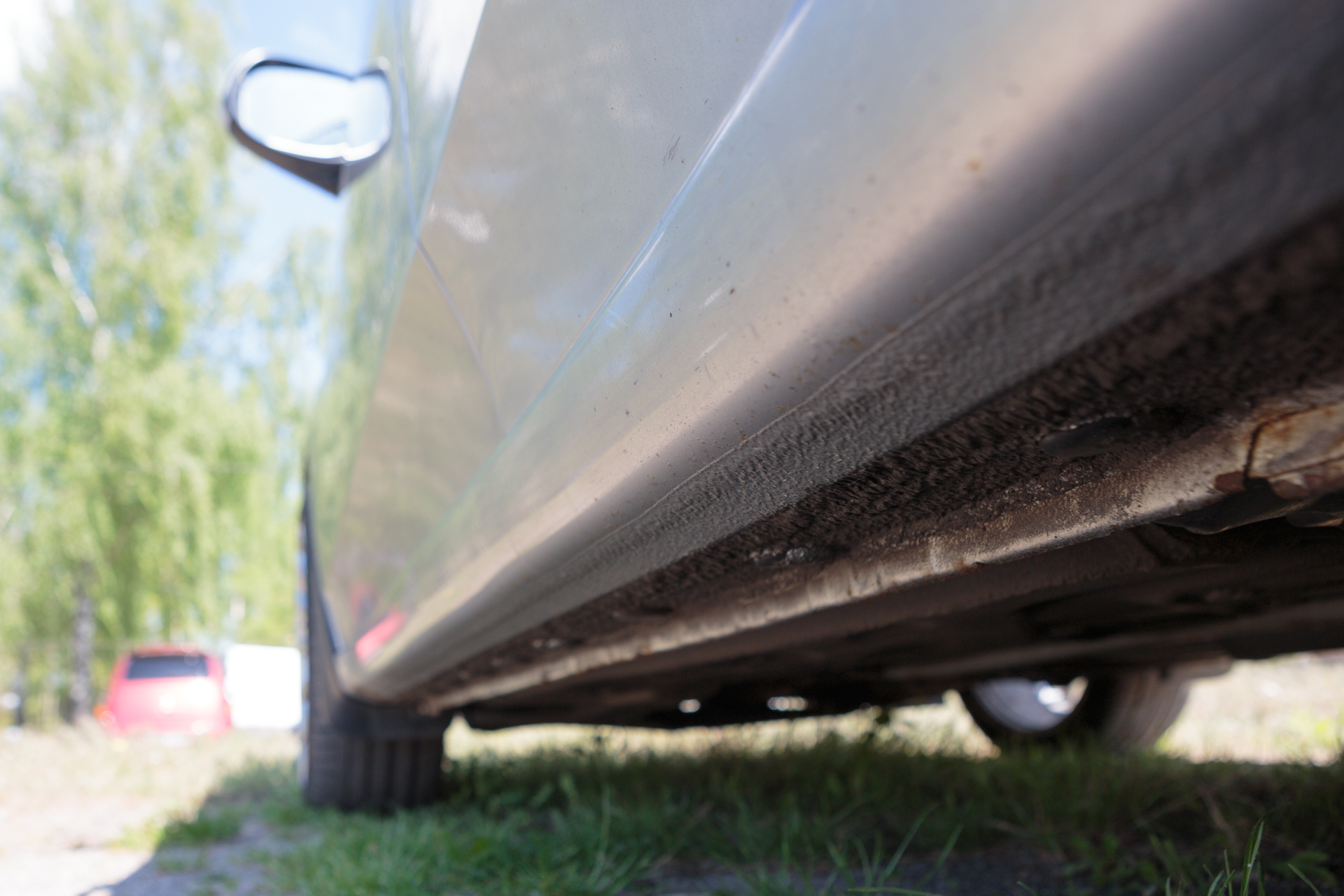

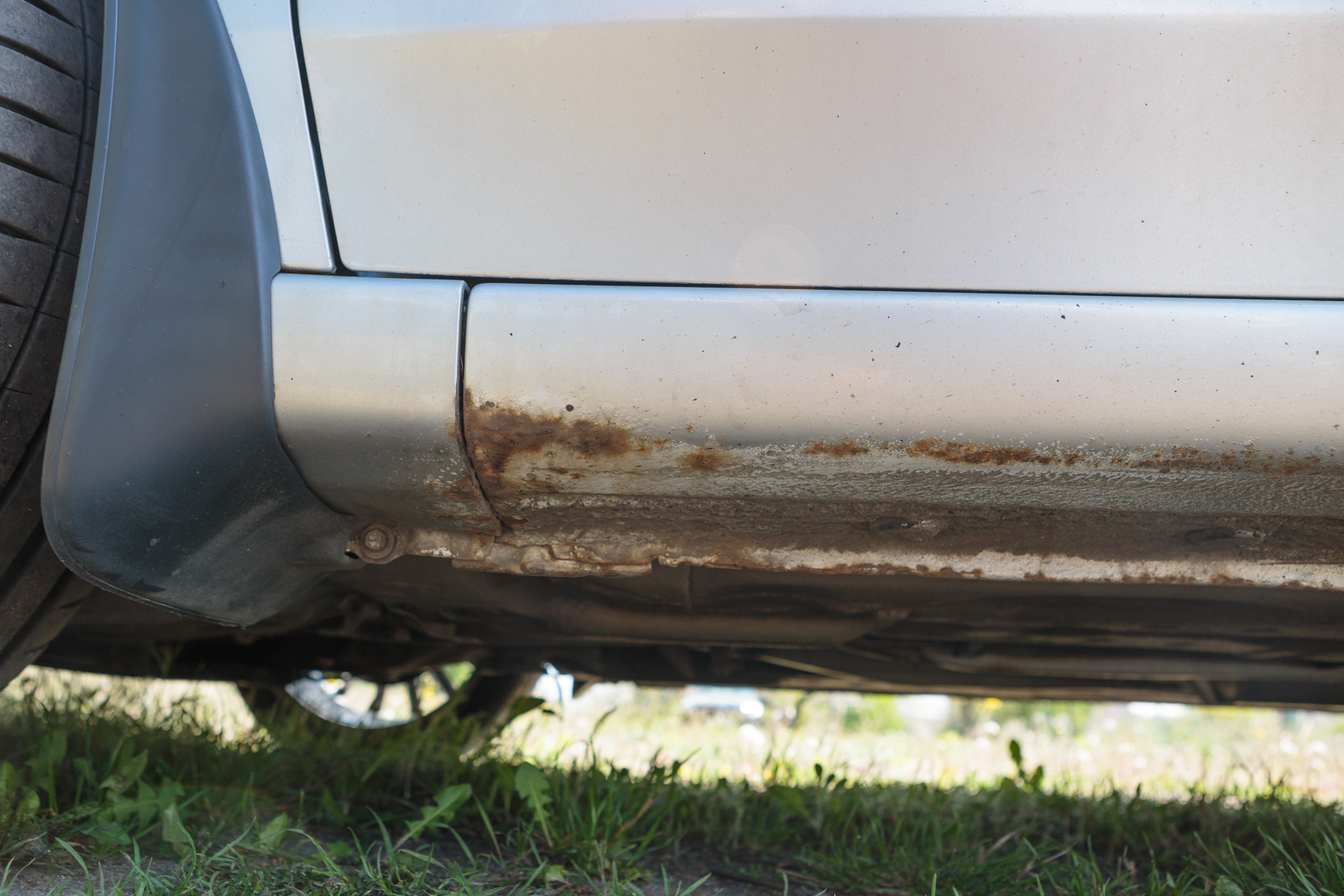

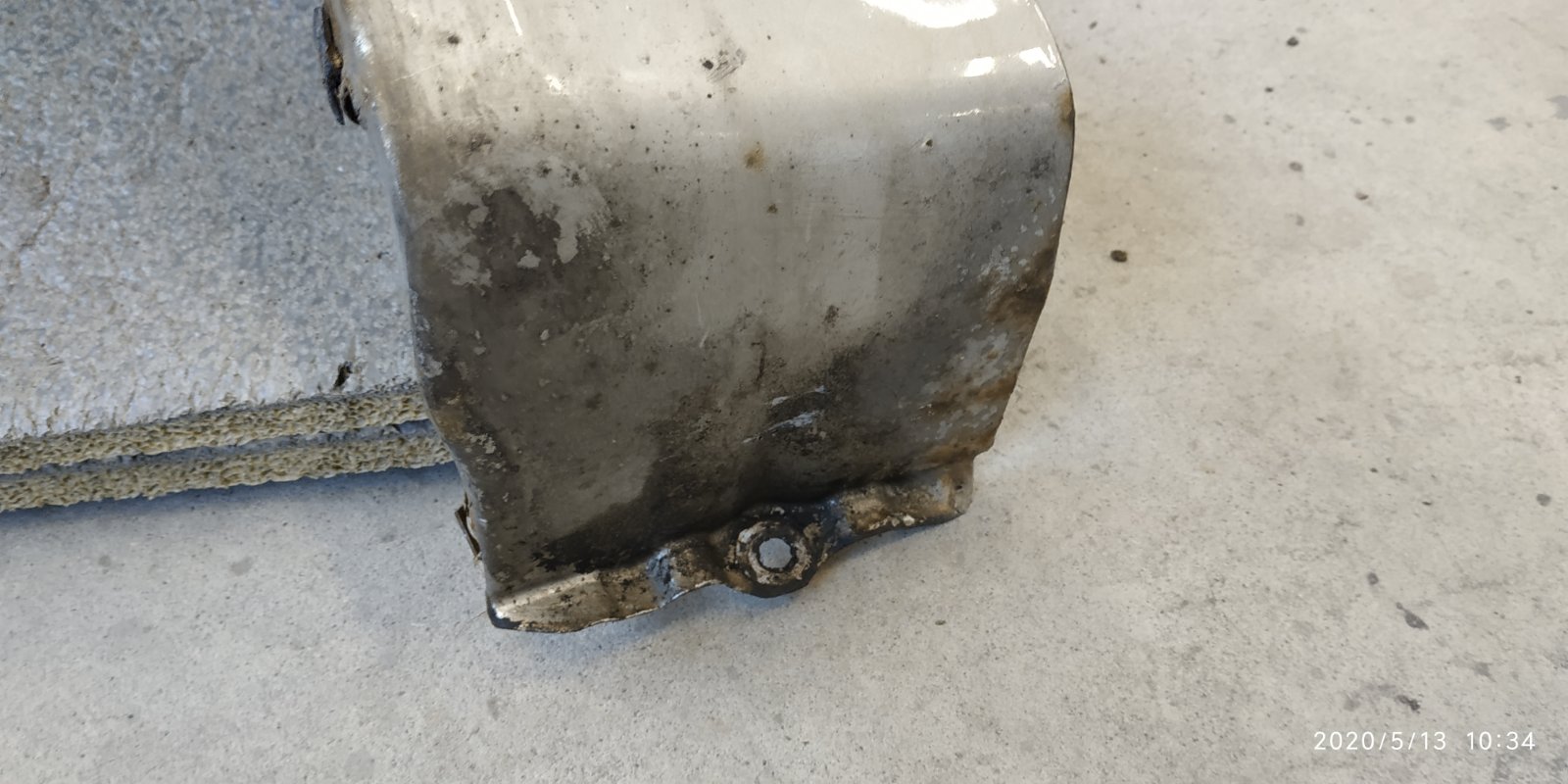

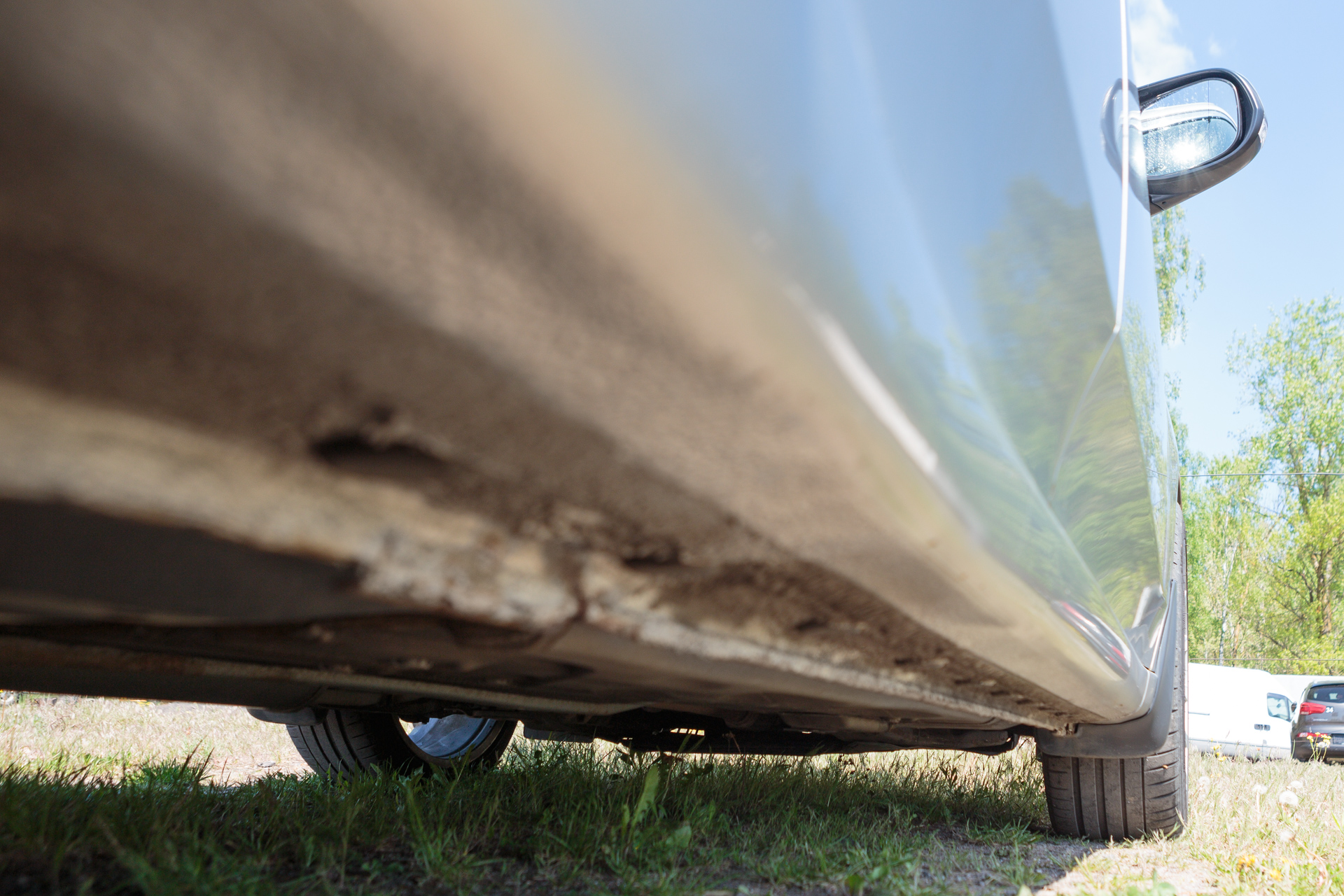

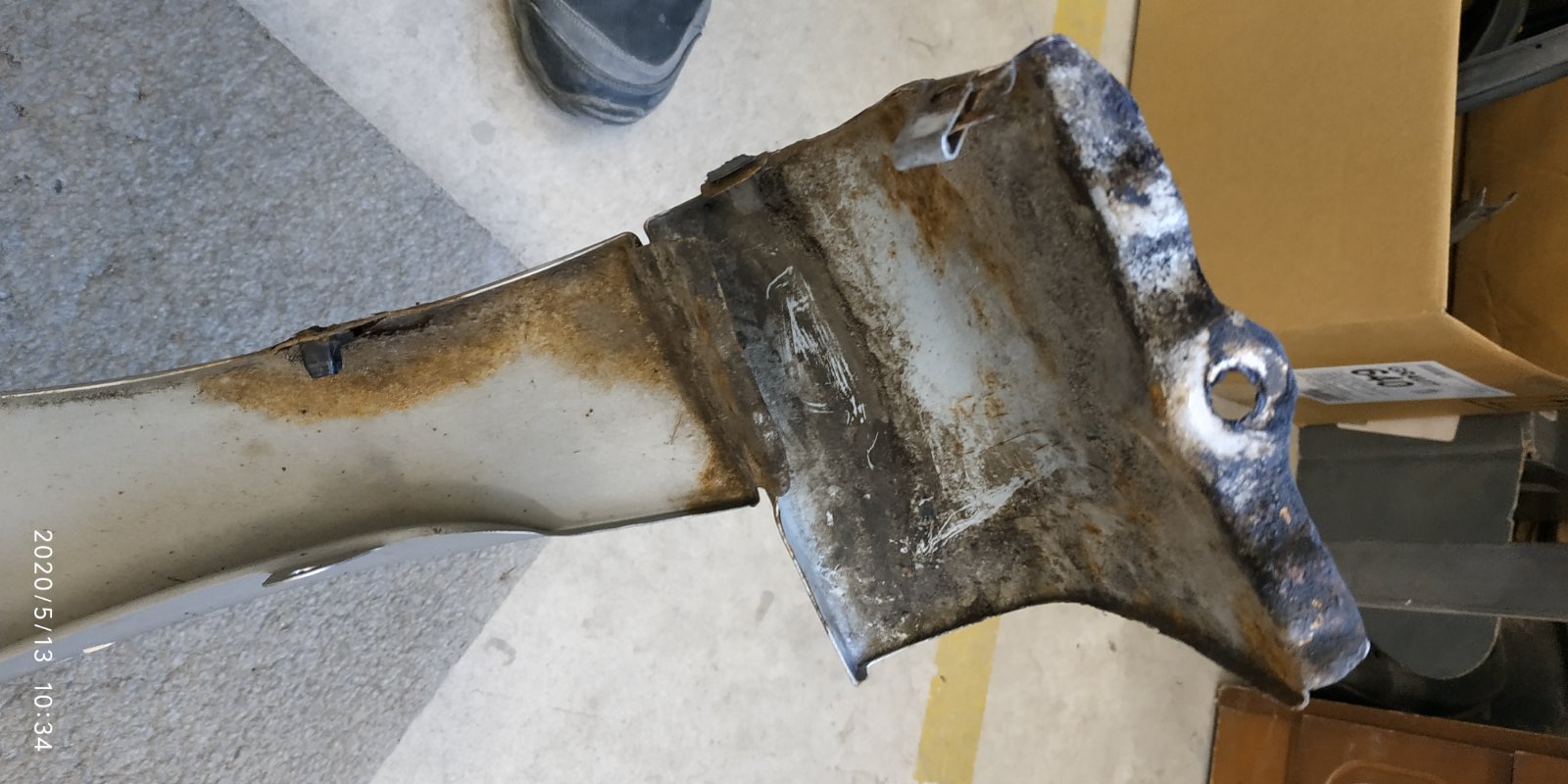

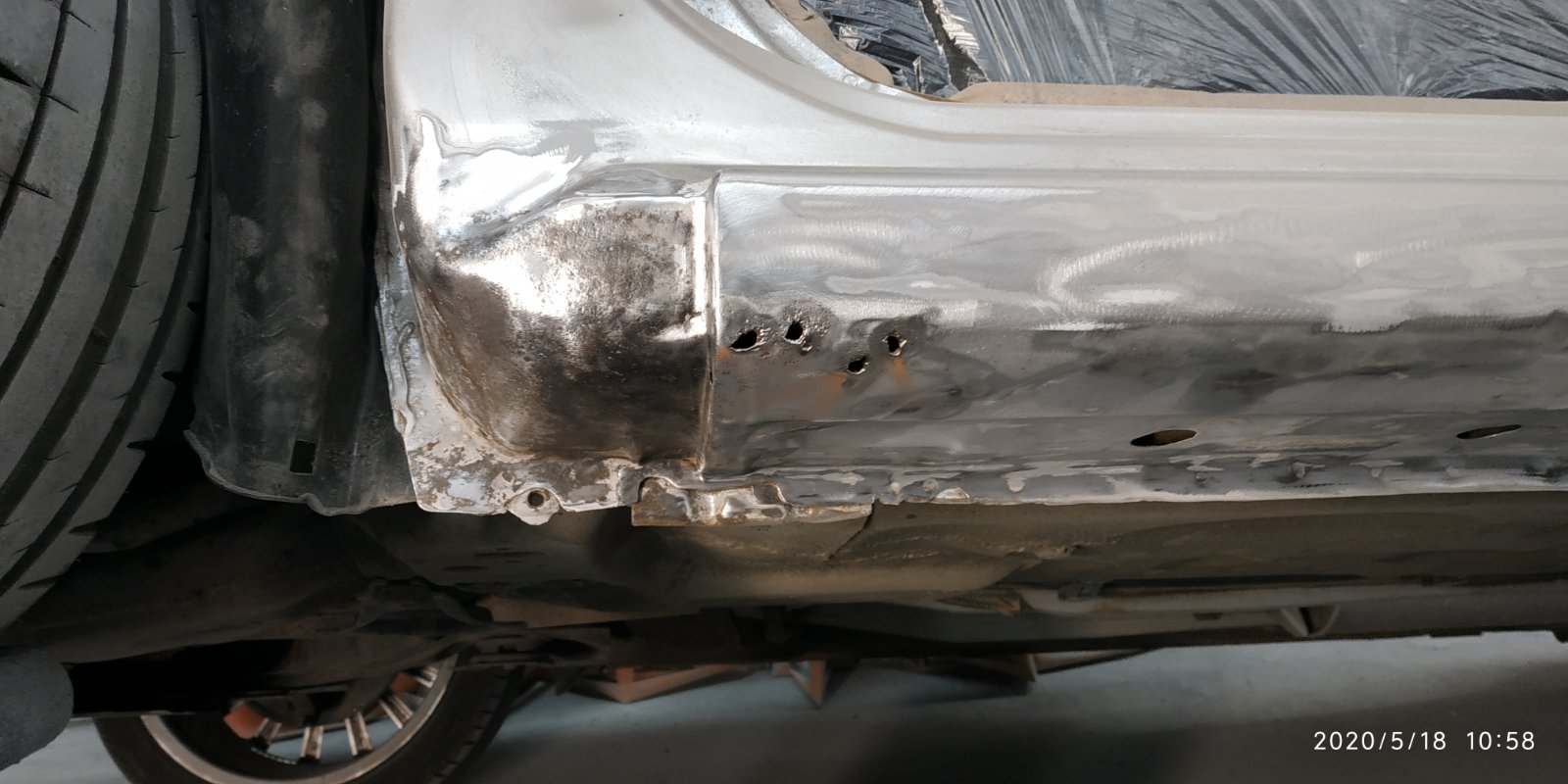

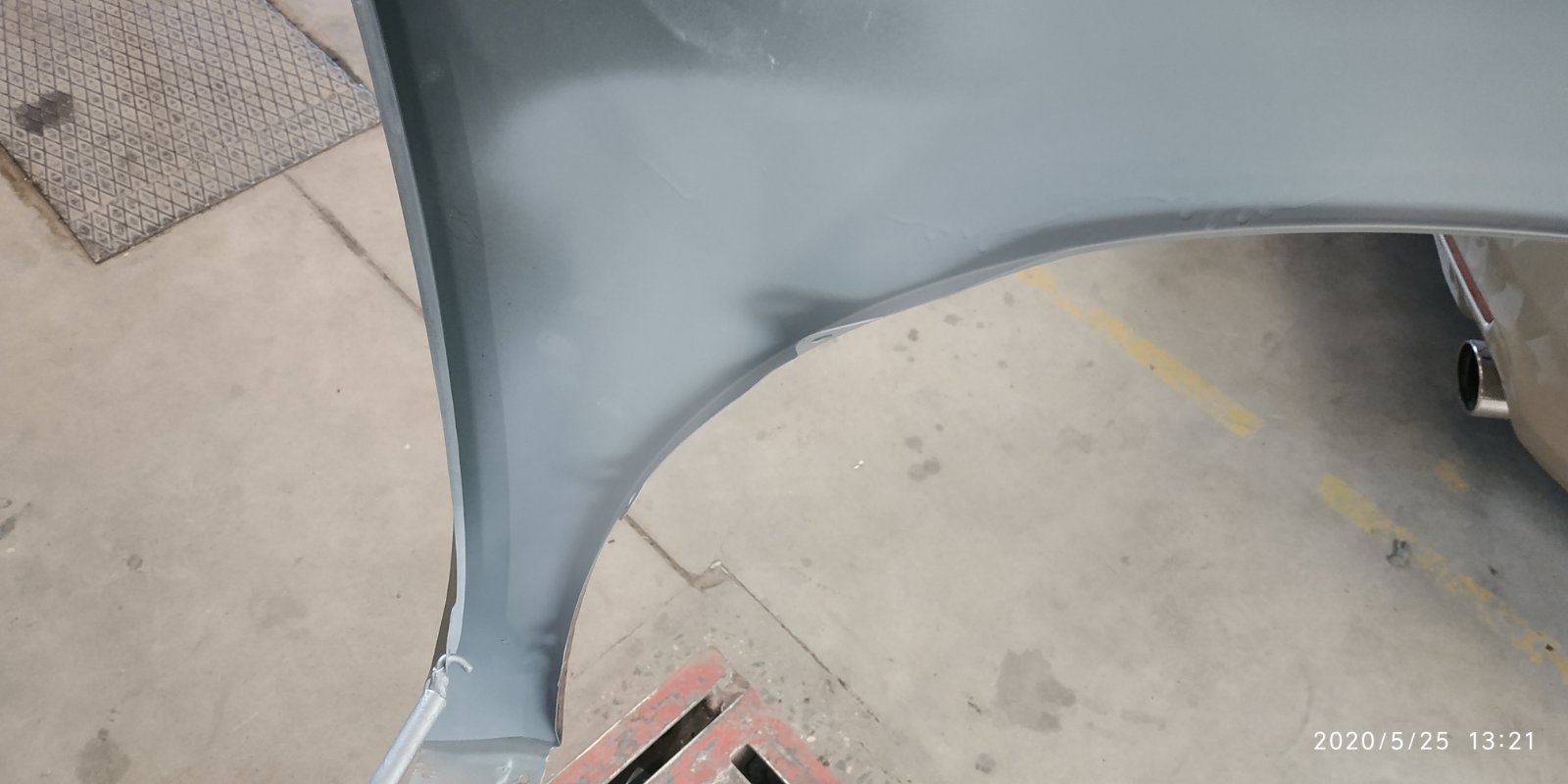

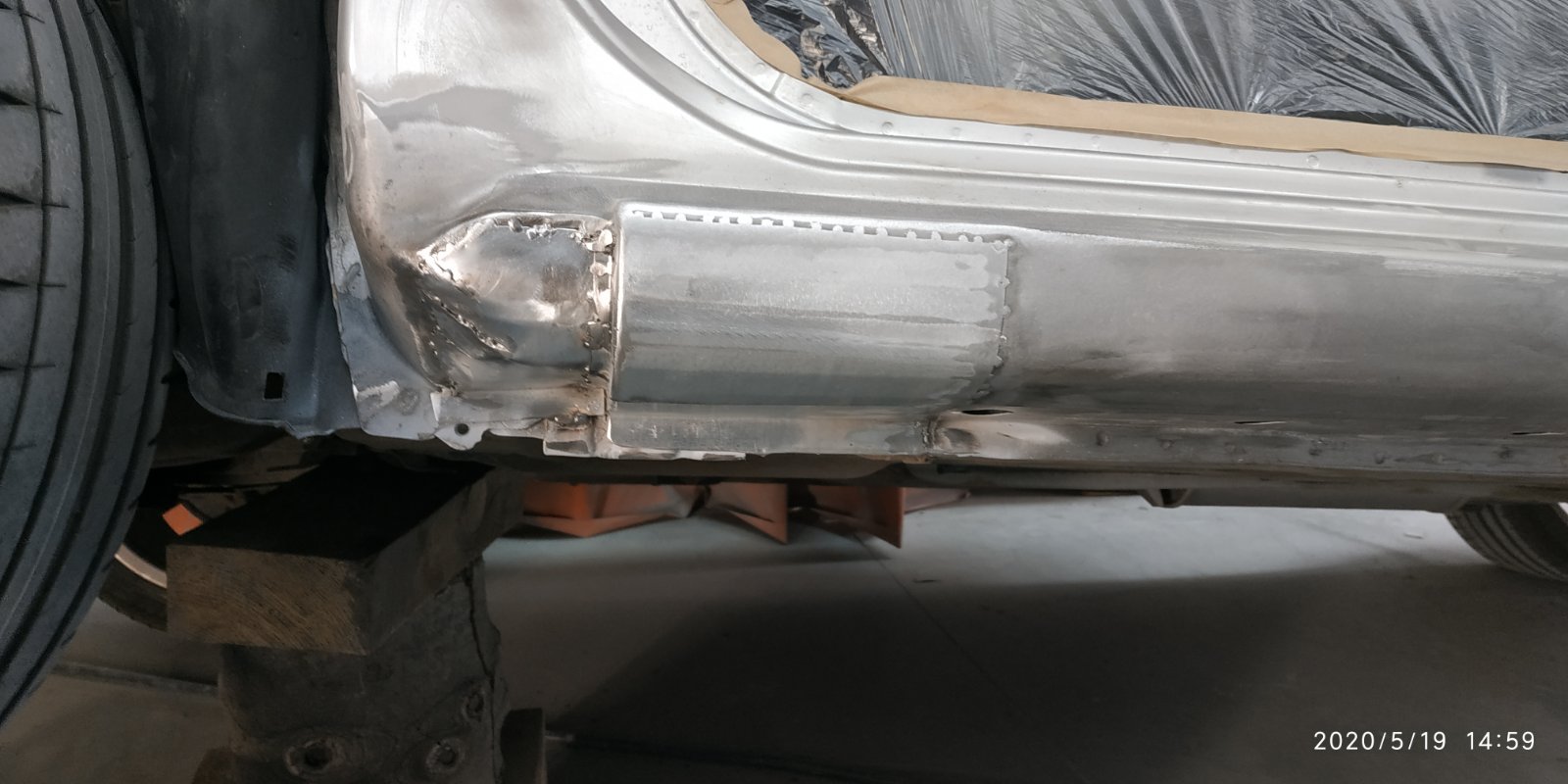

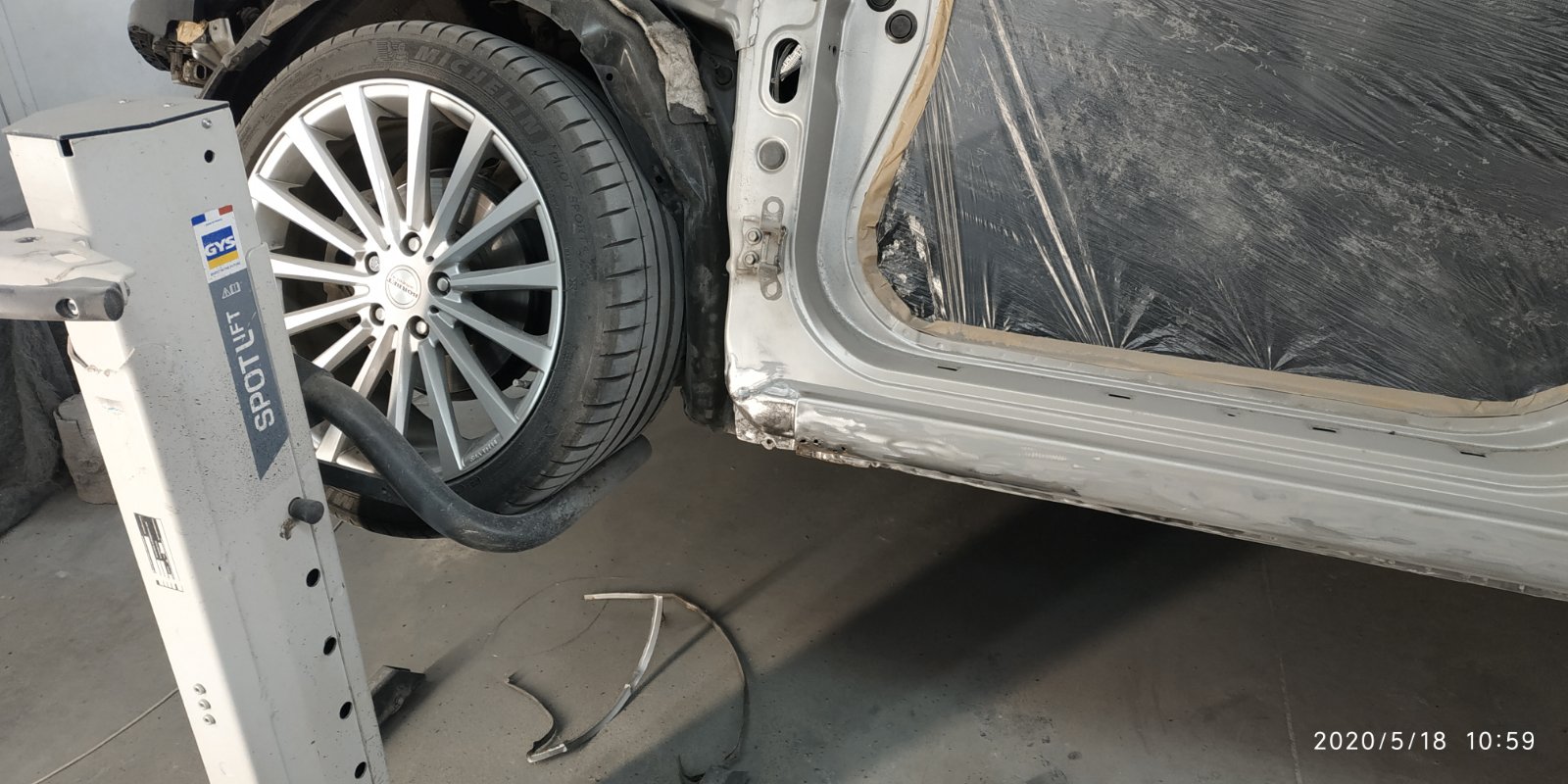

Several photos before painting and repair:

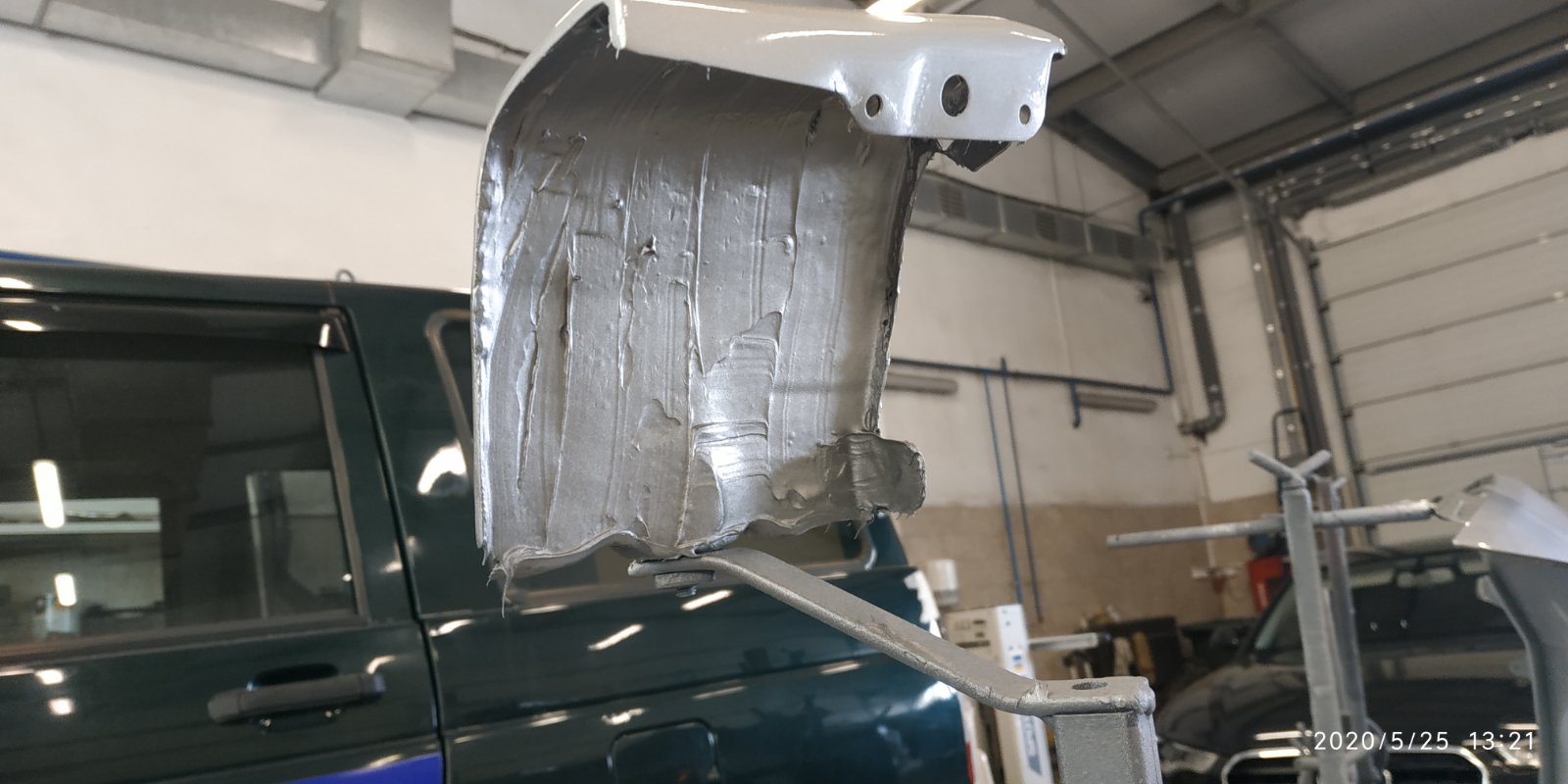

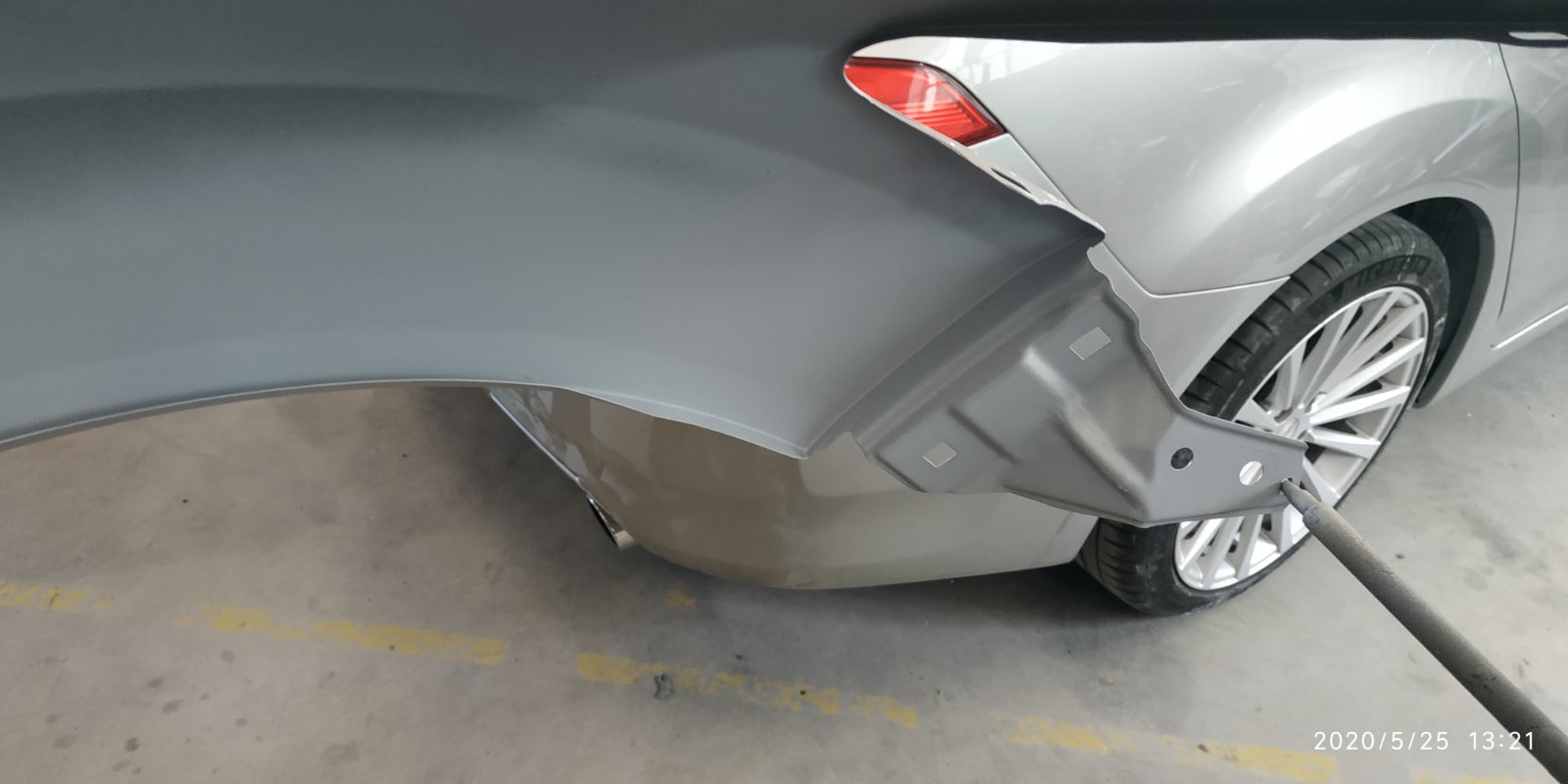

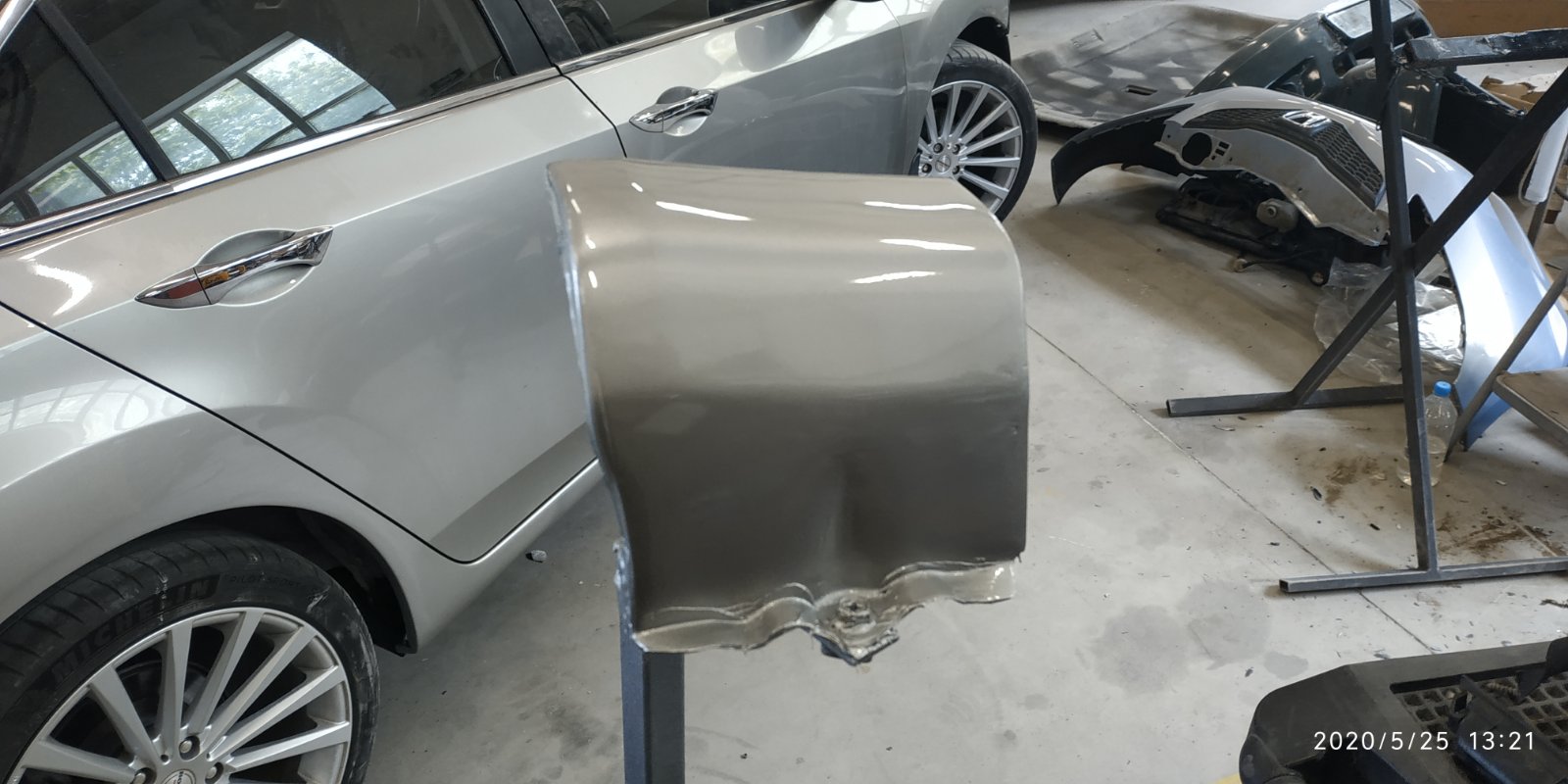

Paintwork was performed twice by the Paint and Body Shop No. 1. Photos were kindly provided by the workshop master.


Mileage: 245,671 km
