Brake refurbishment, repainting, and fluid replacement

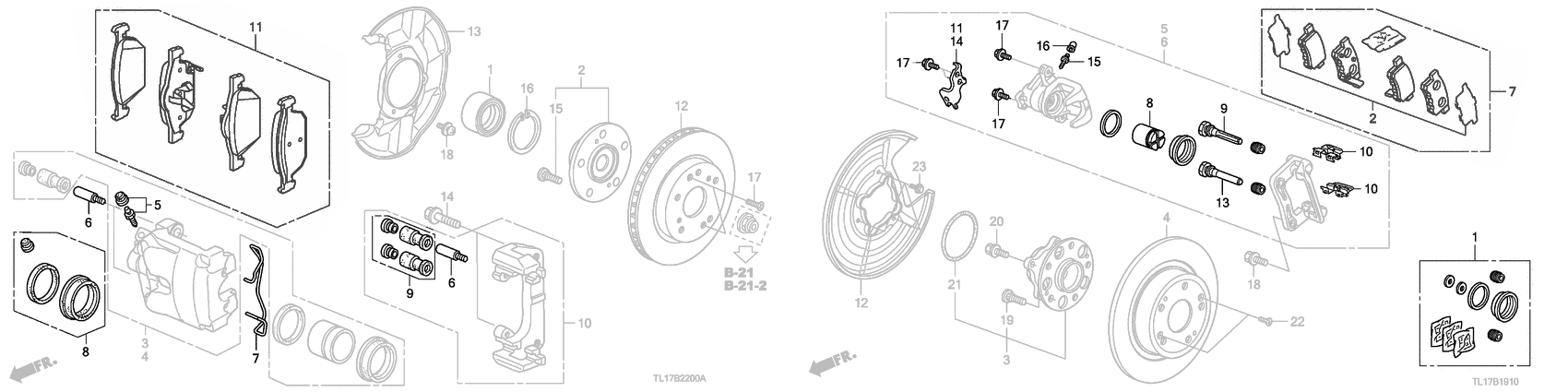

All highlighted parts (marked and quantities listed at the end of the post) were purchased as shown on the image below:

/posts/car/036/01.png

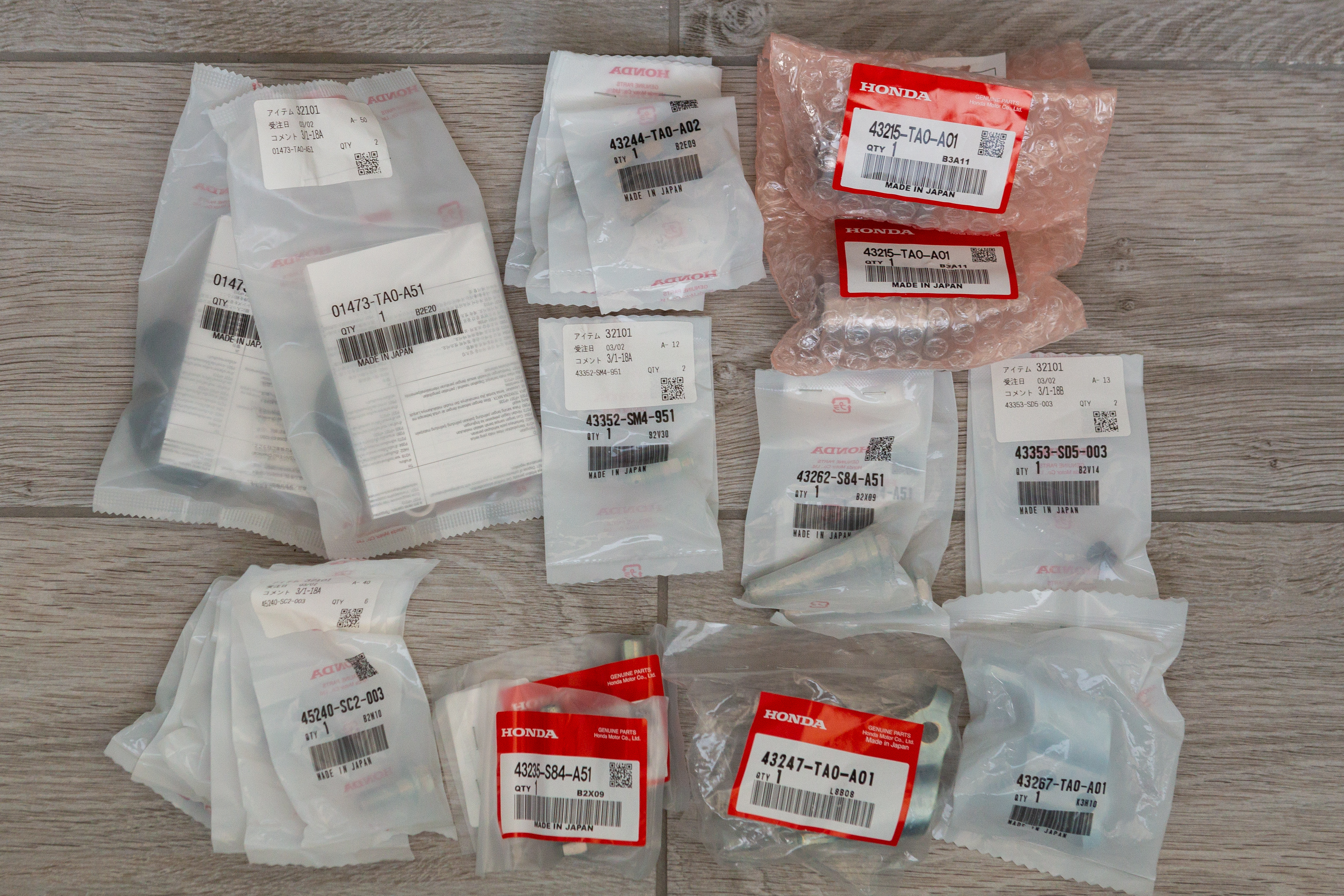

Almost everything was ordered from Japan here.

/posts/car/036/01.jpg /posts/car/036/02.jpg

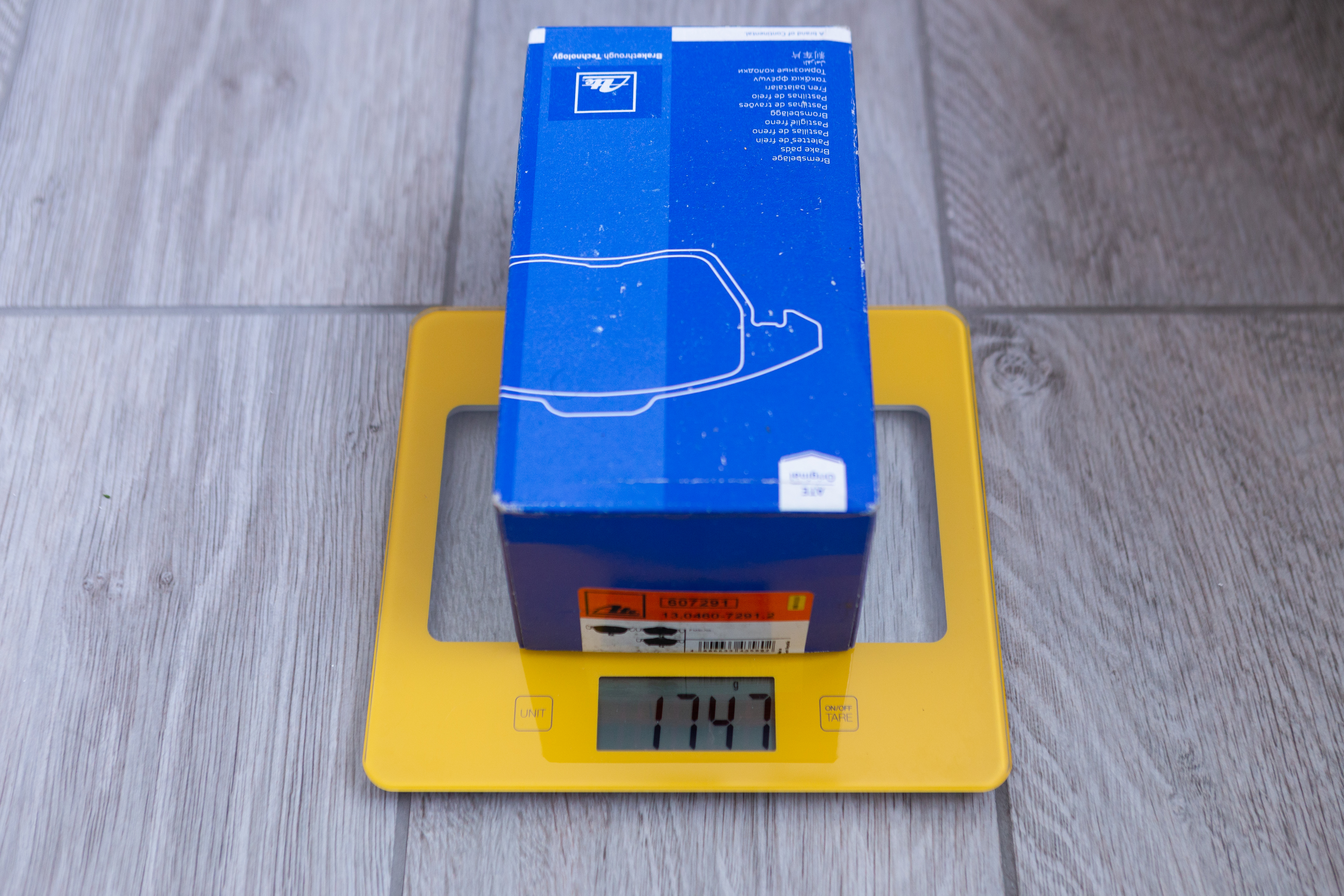

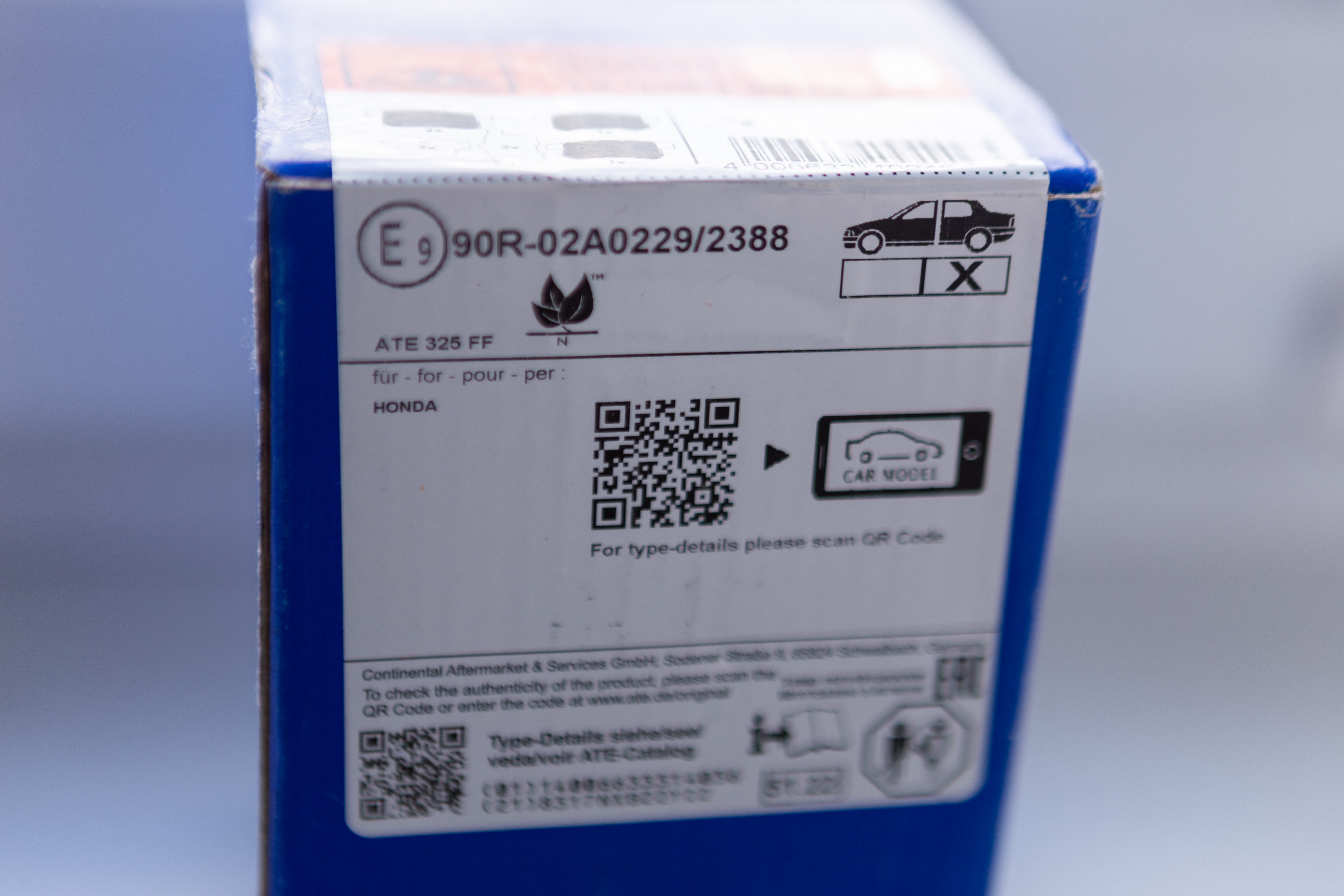

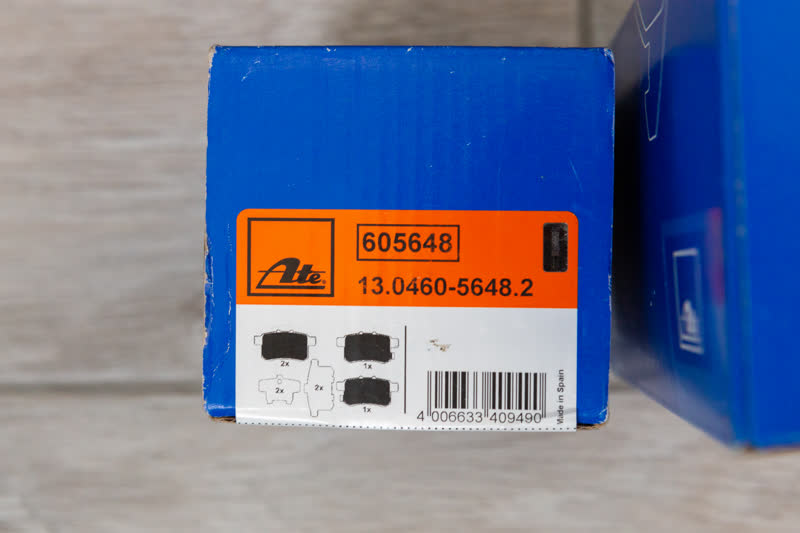

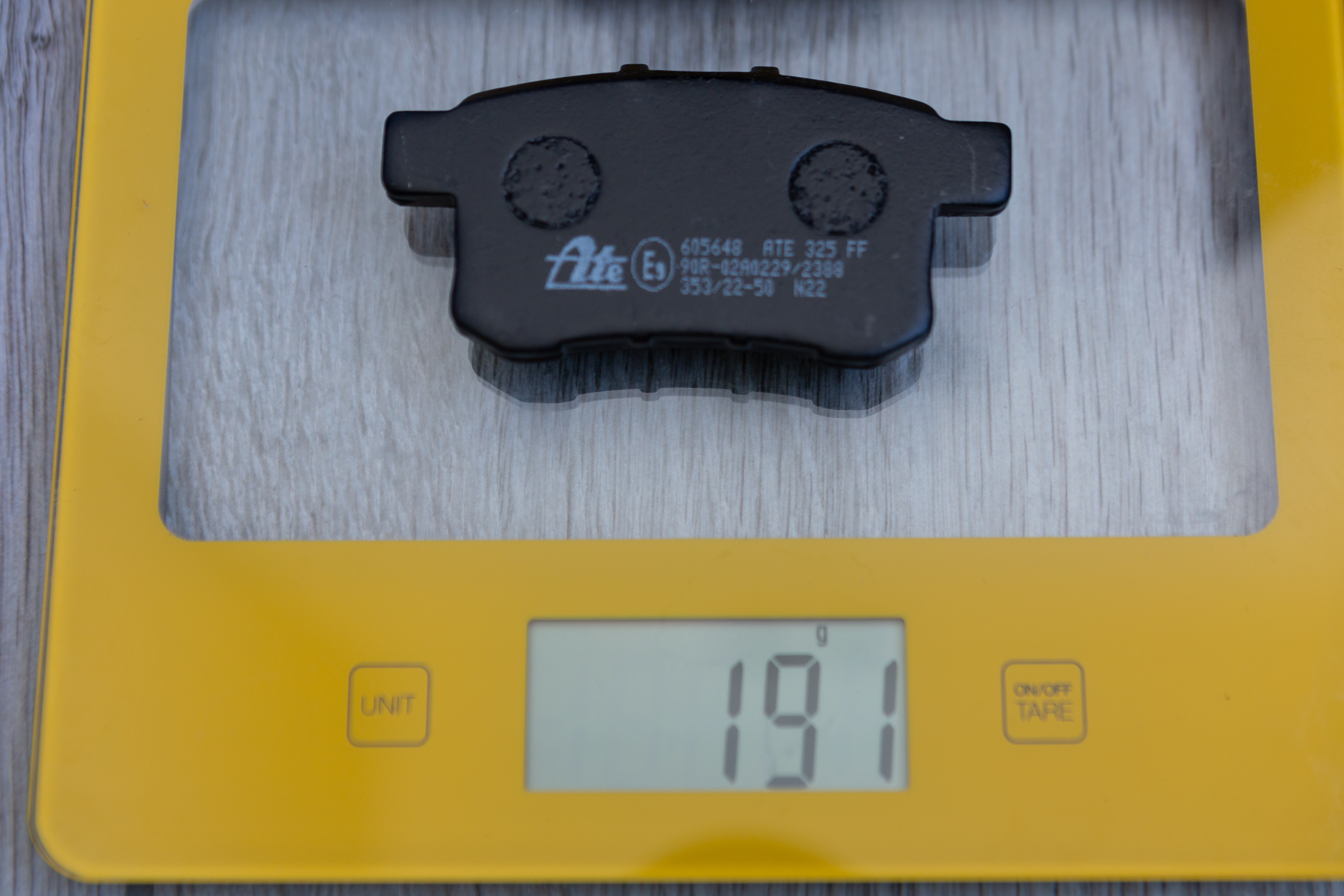

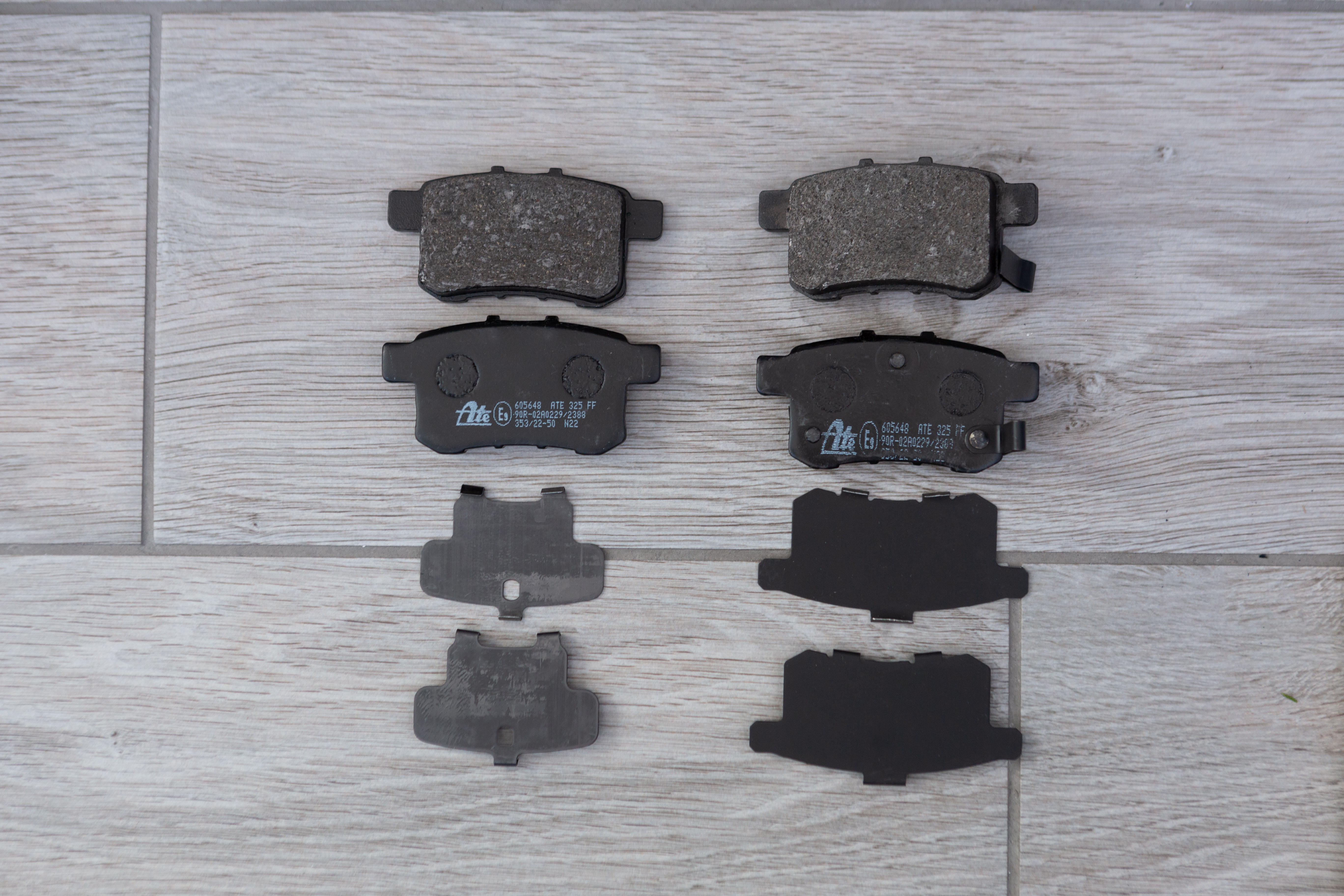

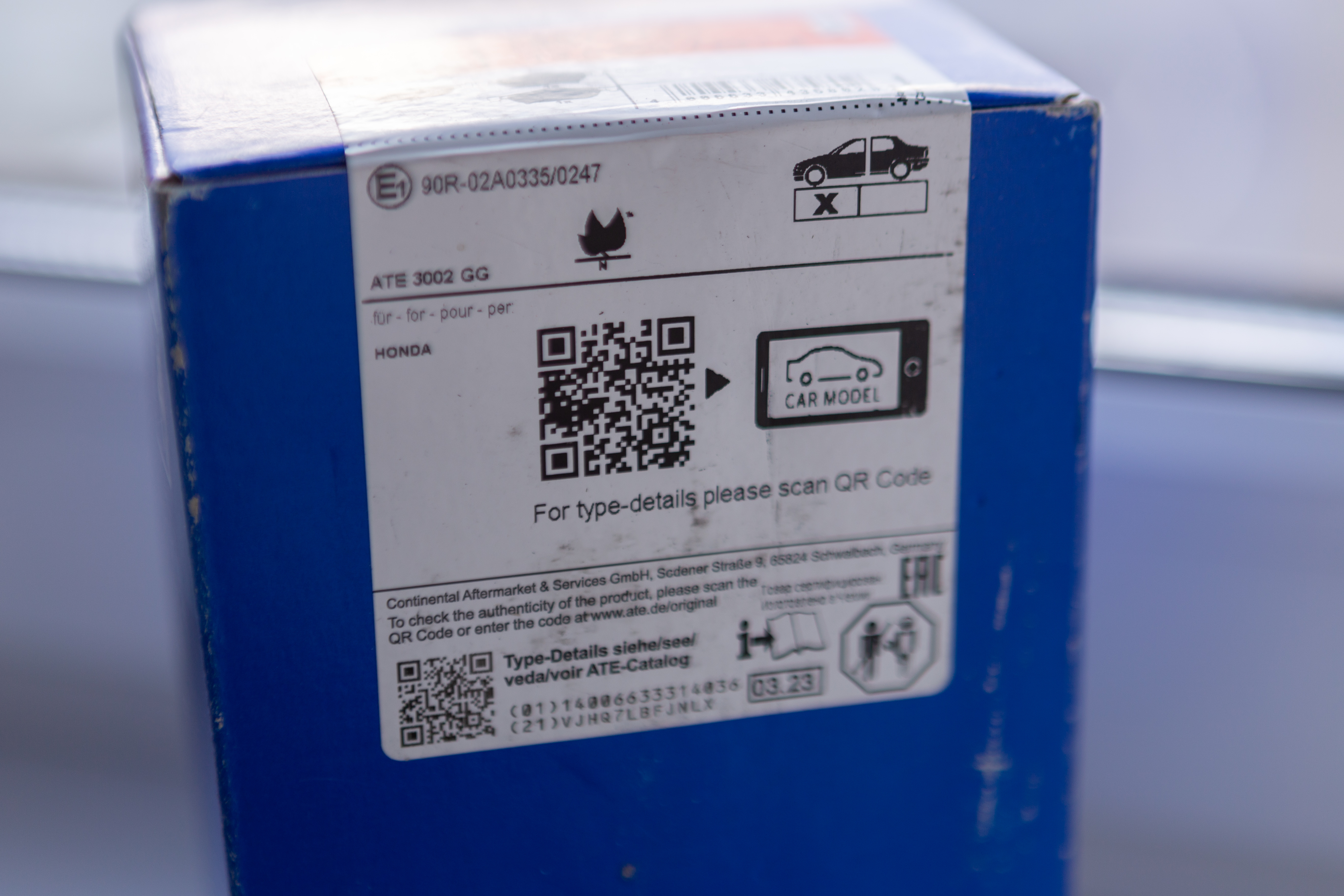

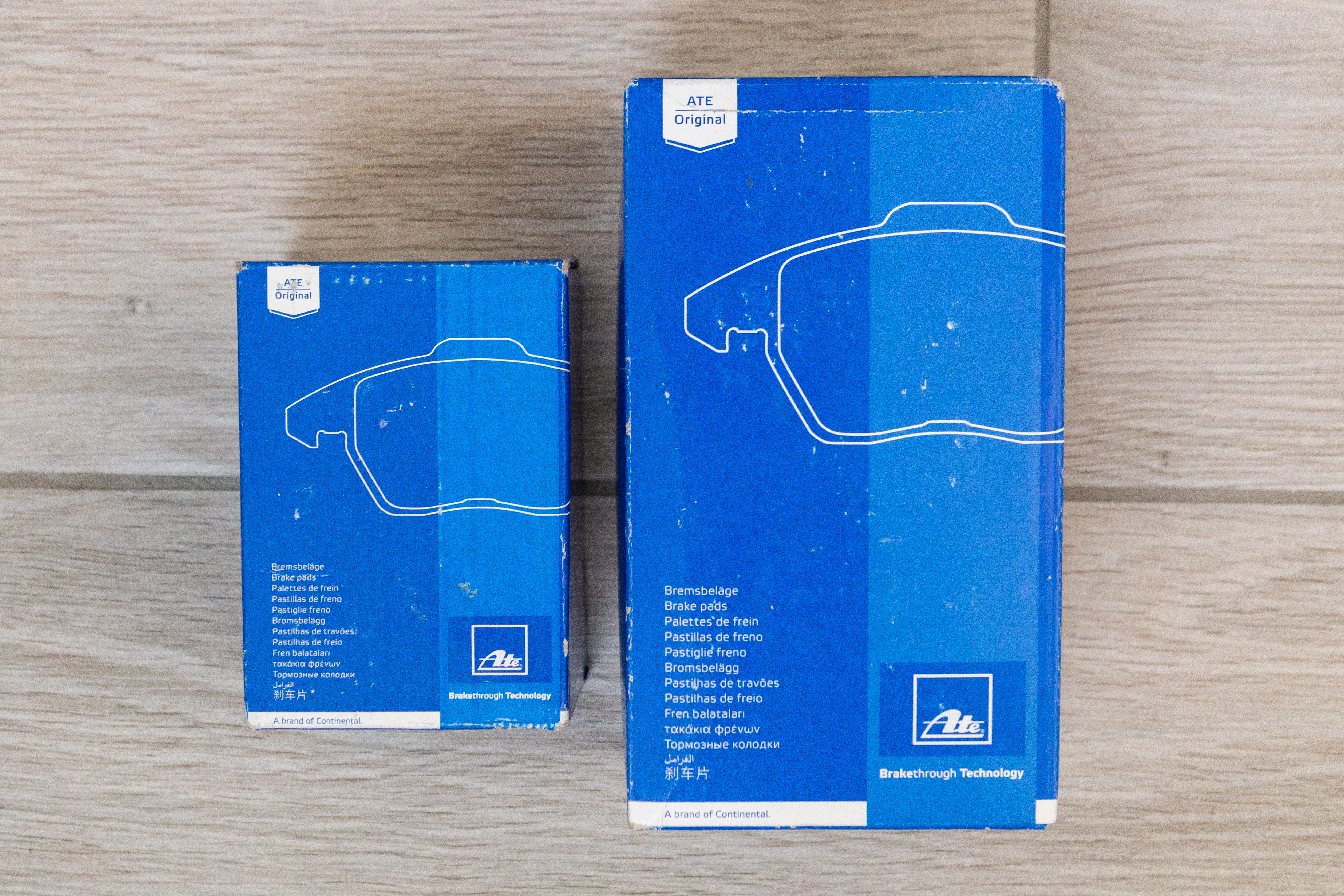

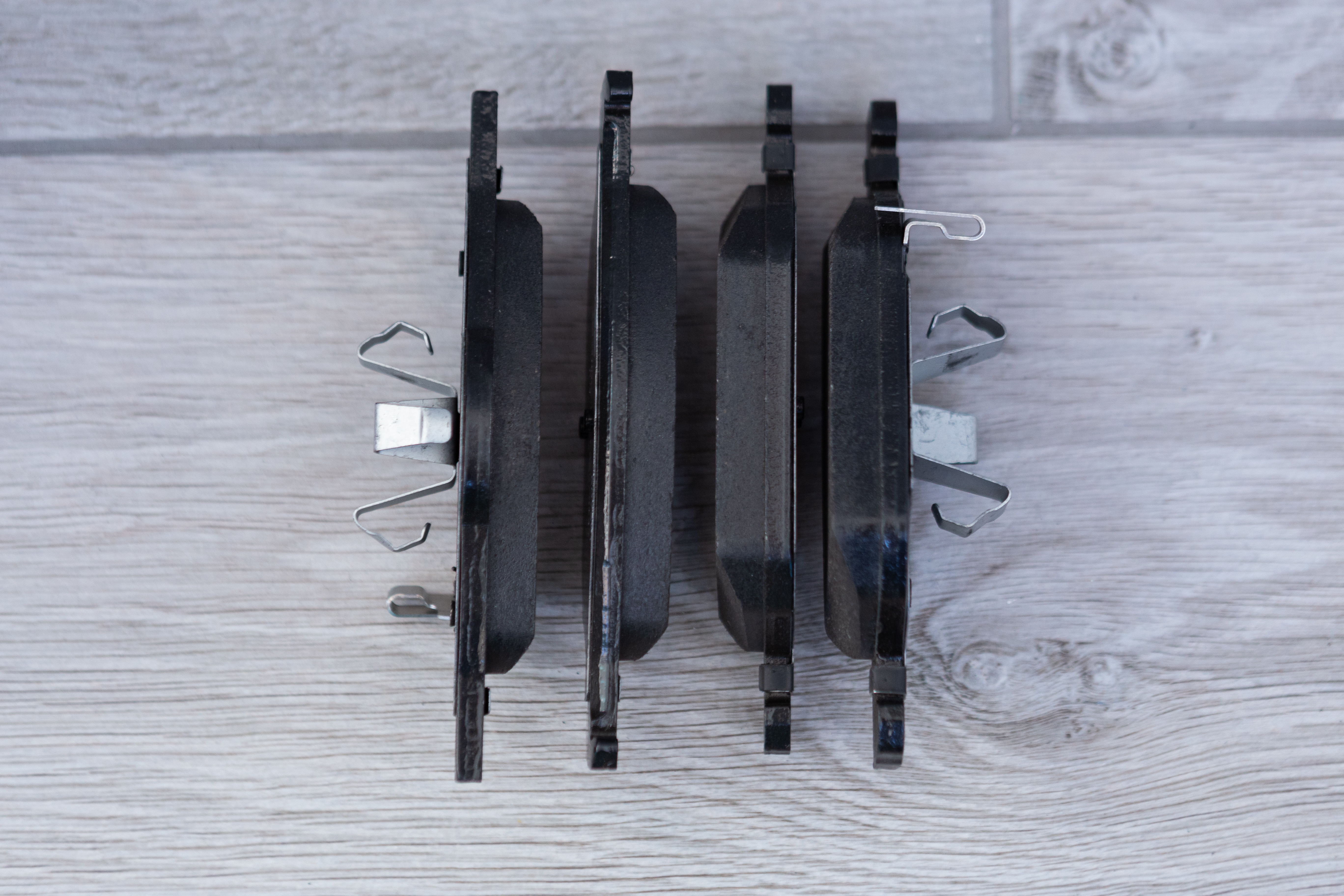

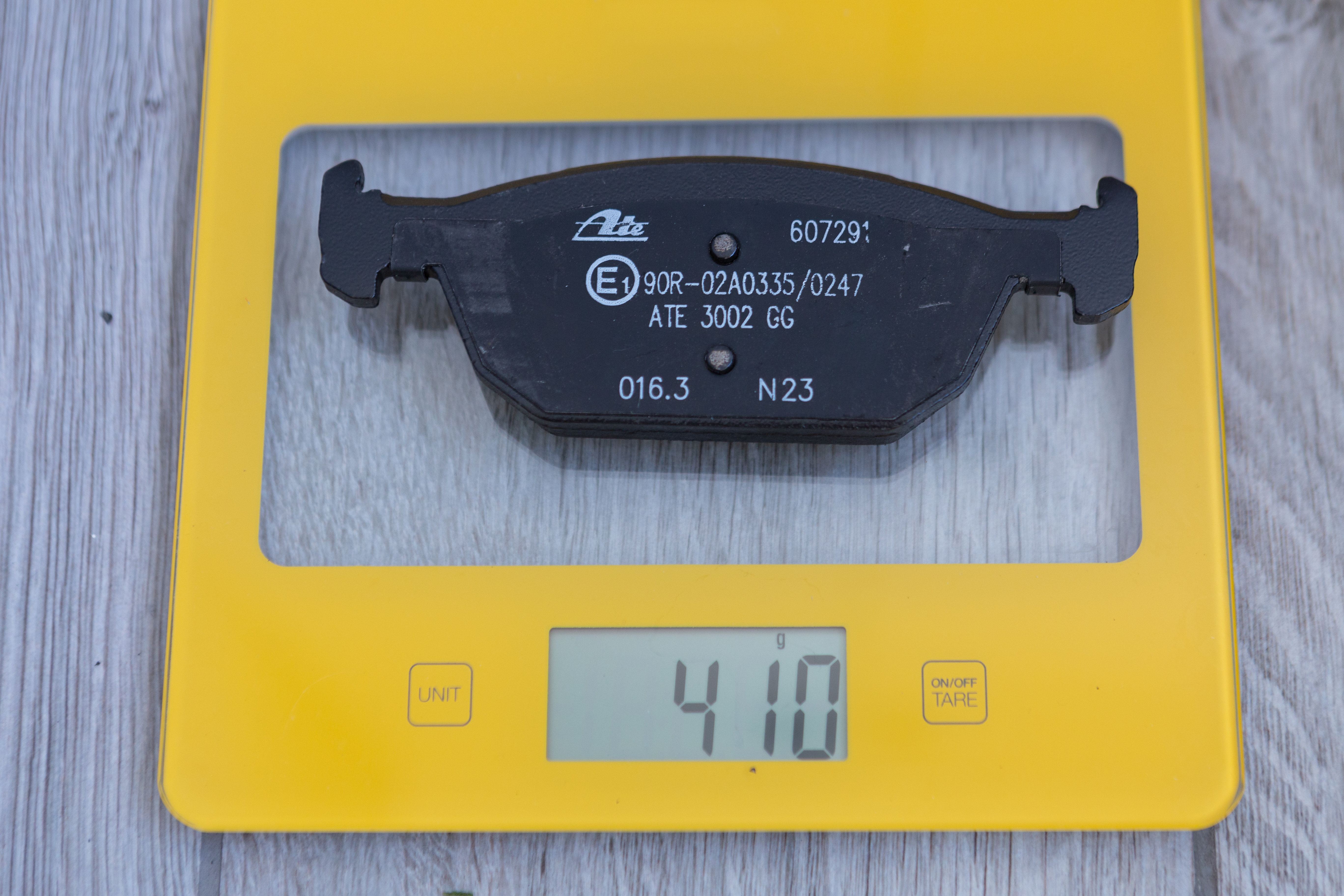

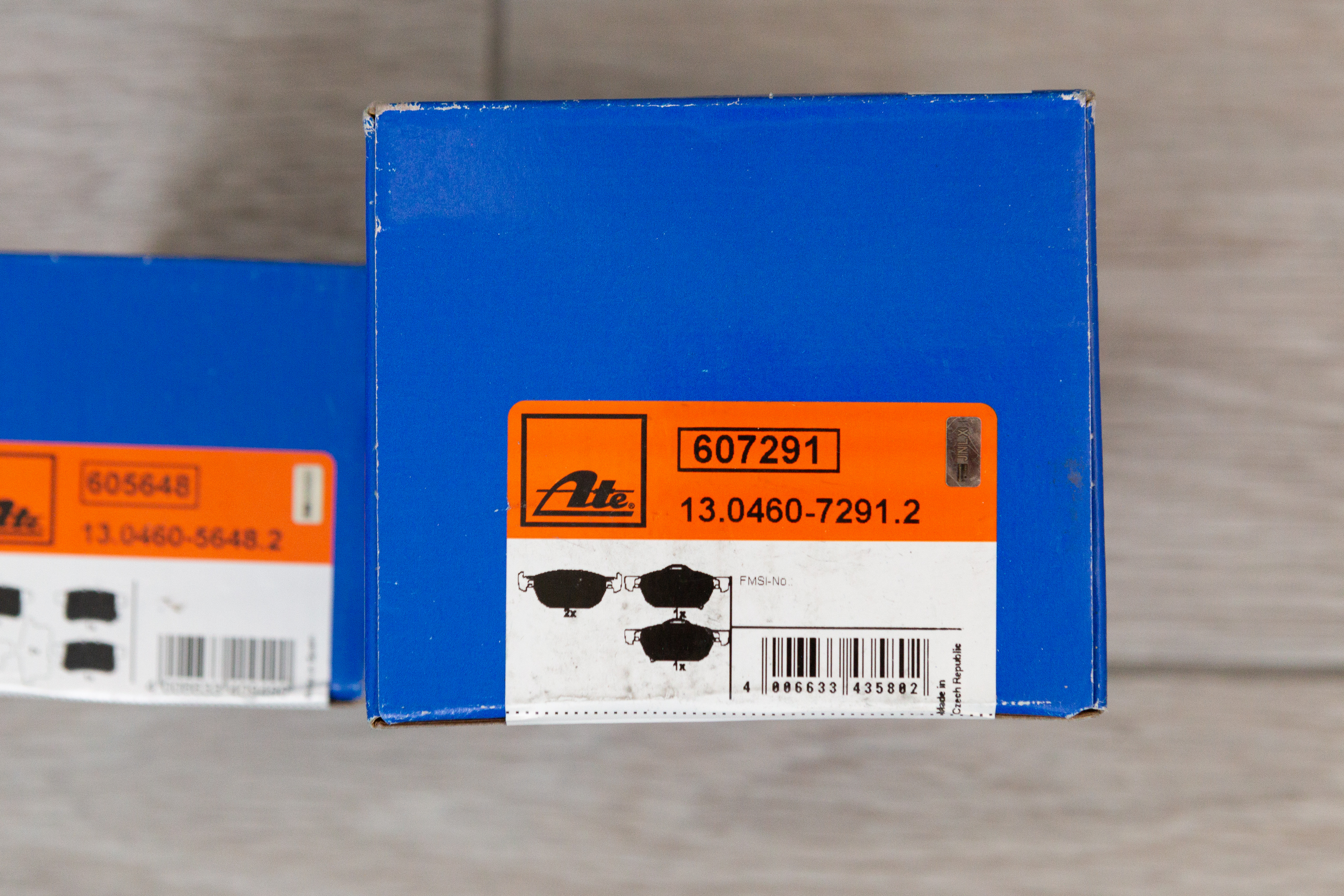

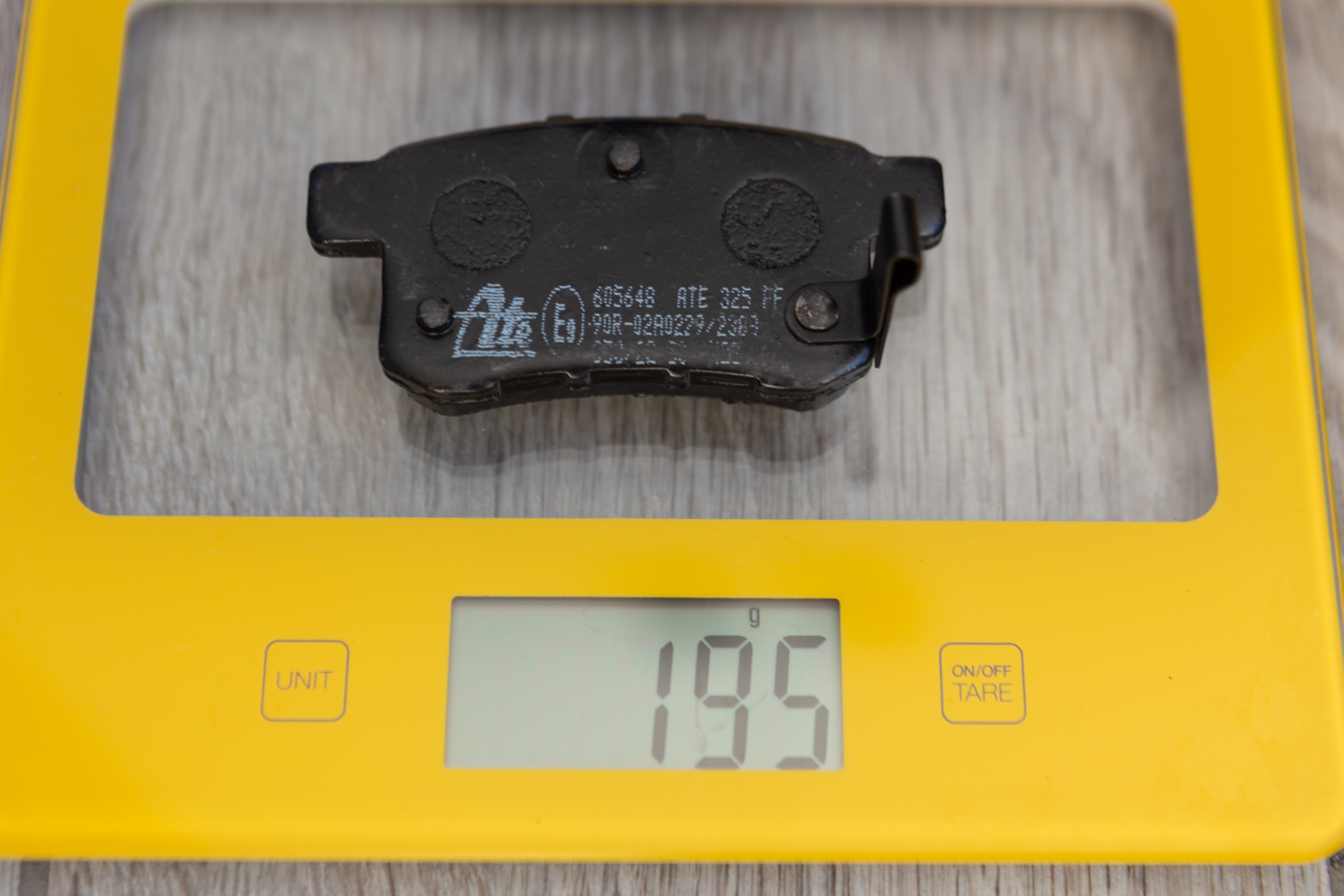

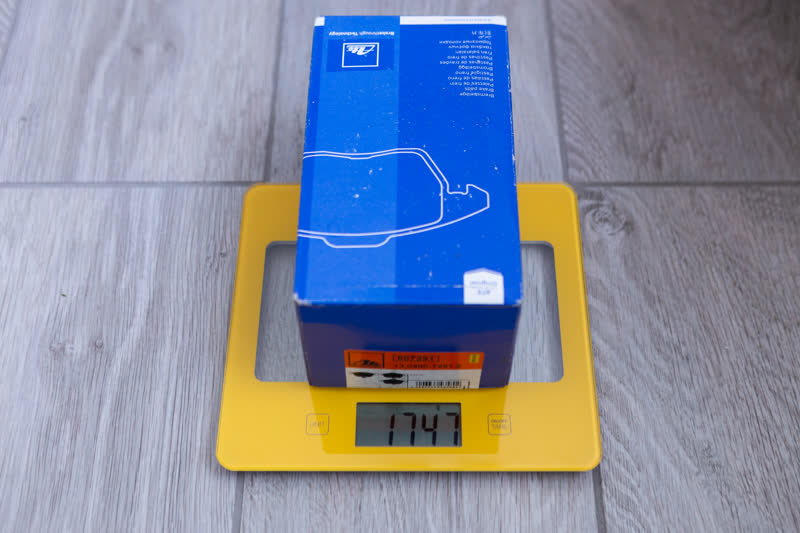

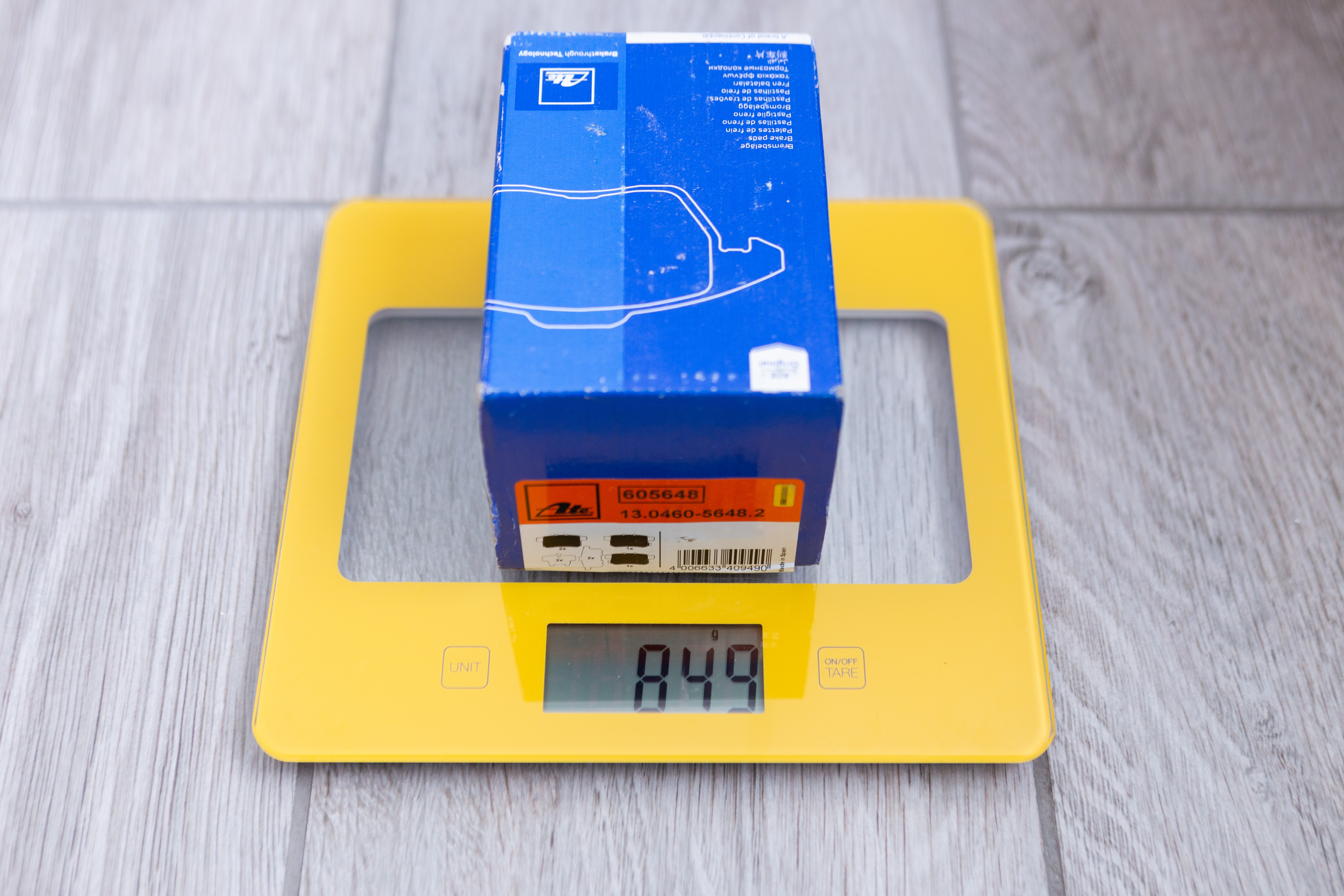

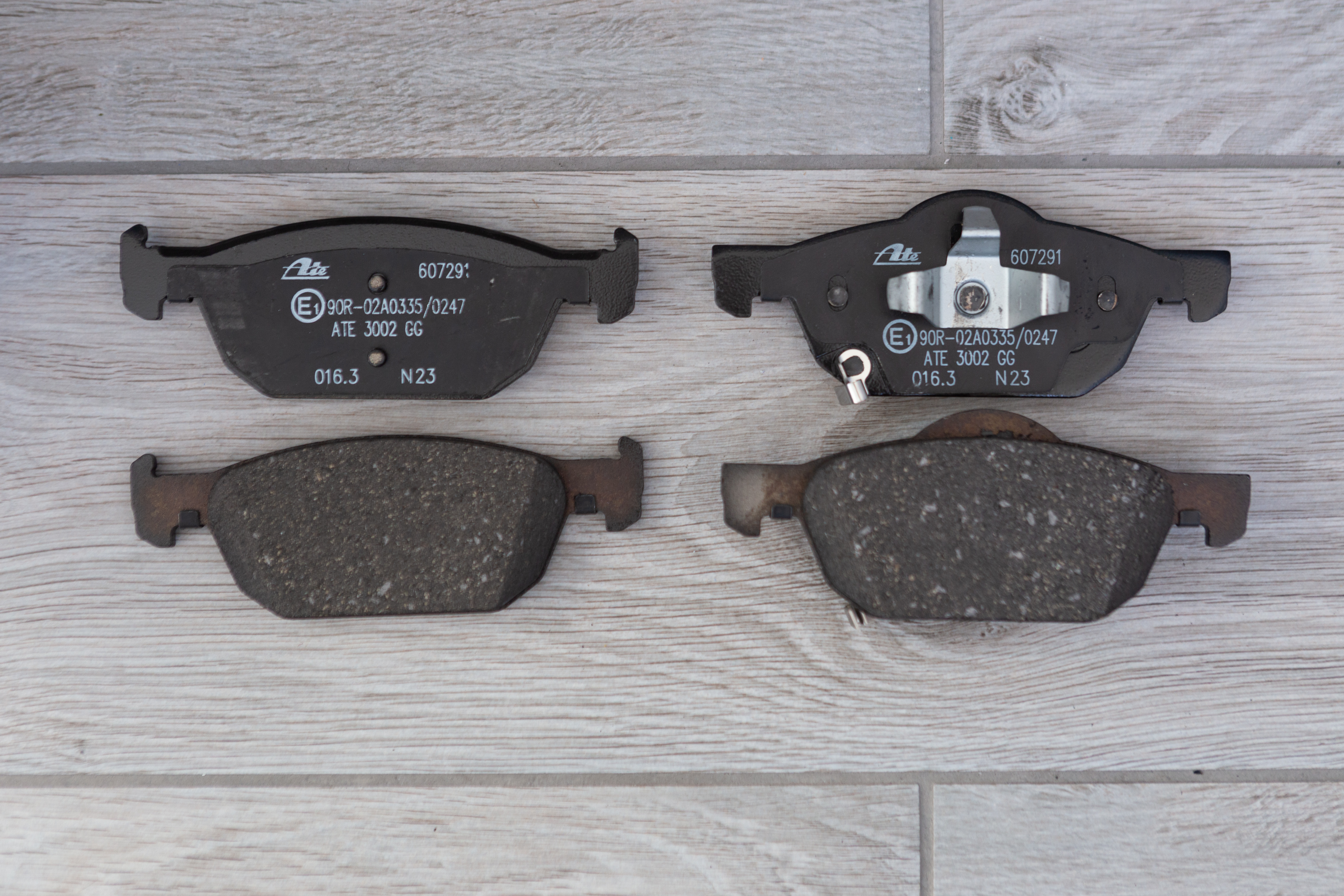

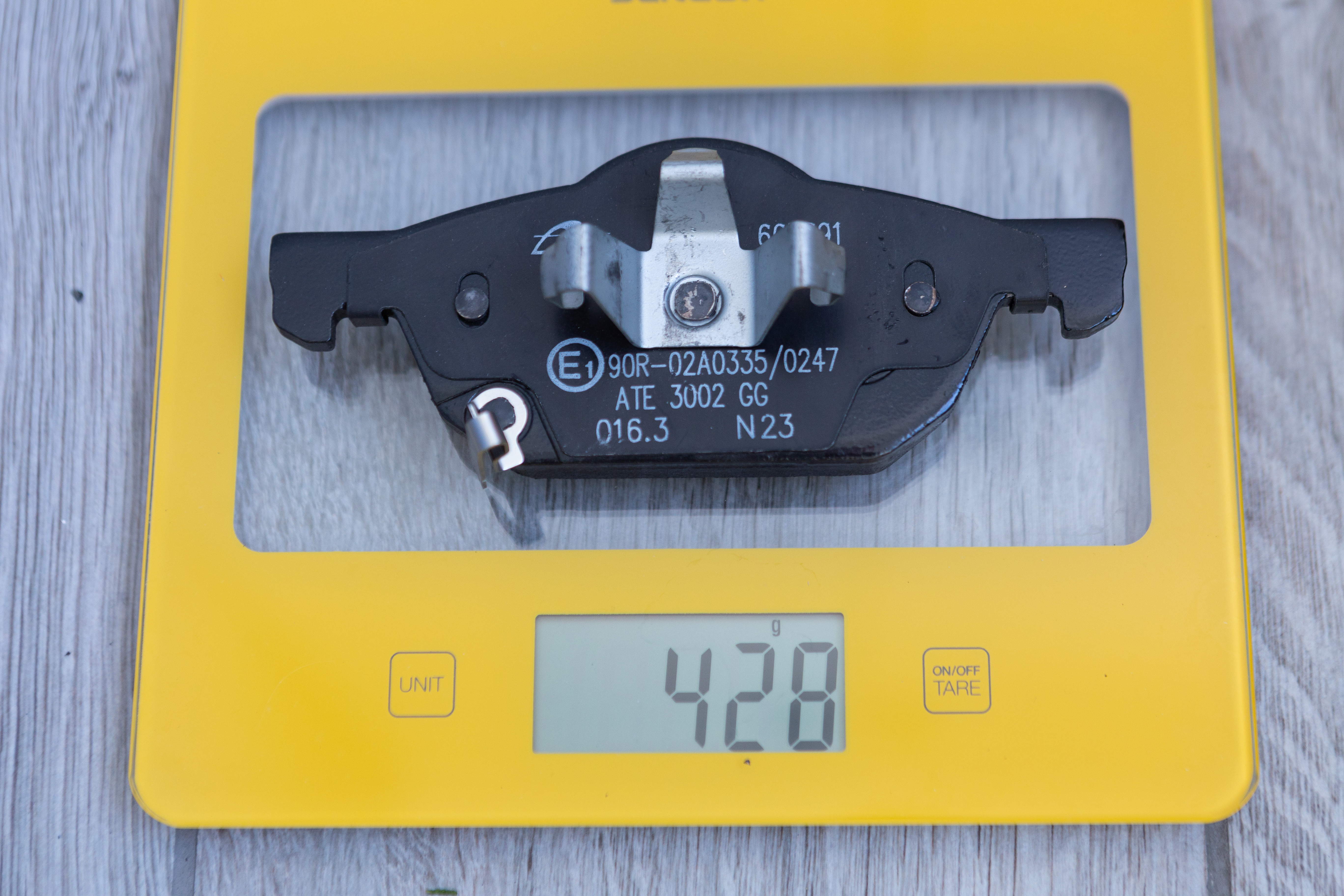

At the time of ordering, Honda brake pads were unavailable from any store I checked, including European and Japanese shops, and official Honda dealerships. Judging by appearance, markings, and weight, the ATE pads purchased (here and here) look identical to the original Honda pads previously installed on my vehicle.

After two years, the brake fluid was replaced (purchased here).

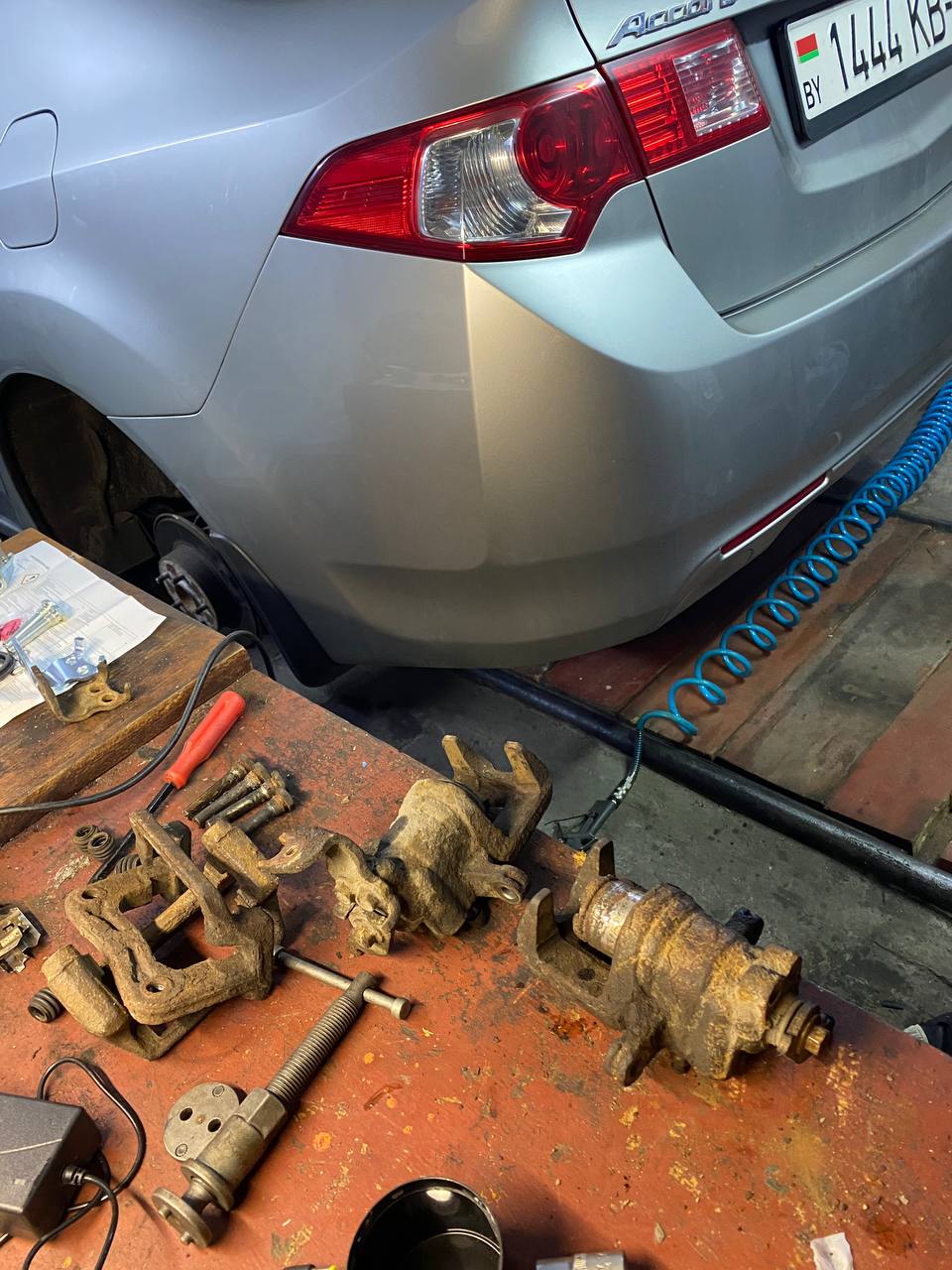

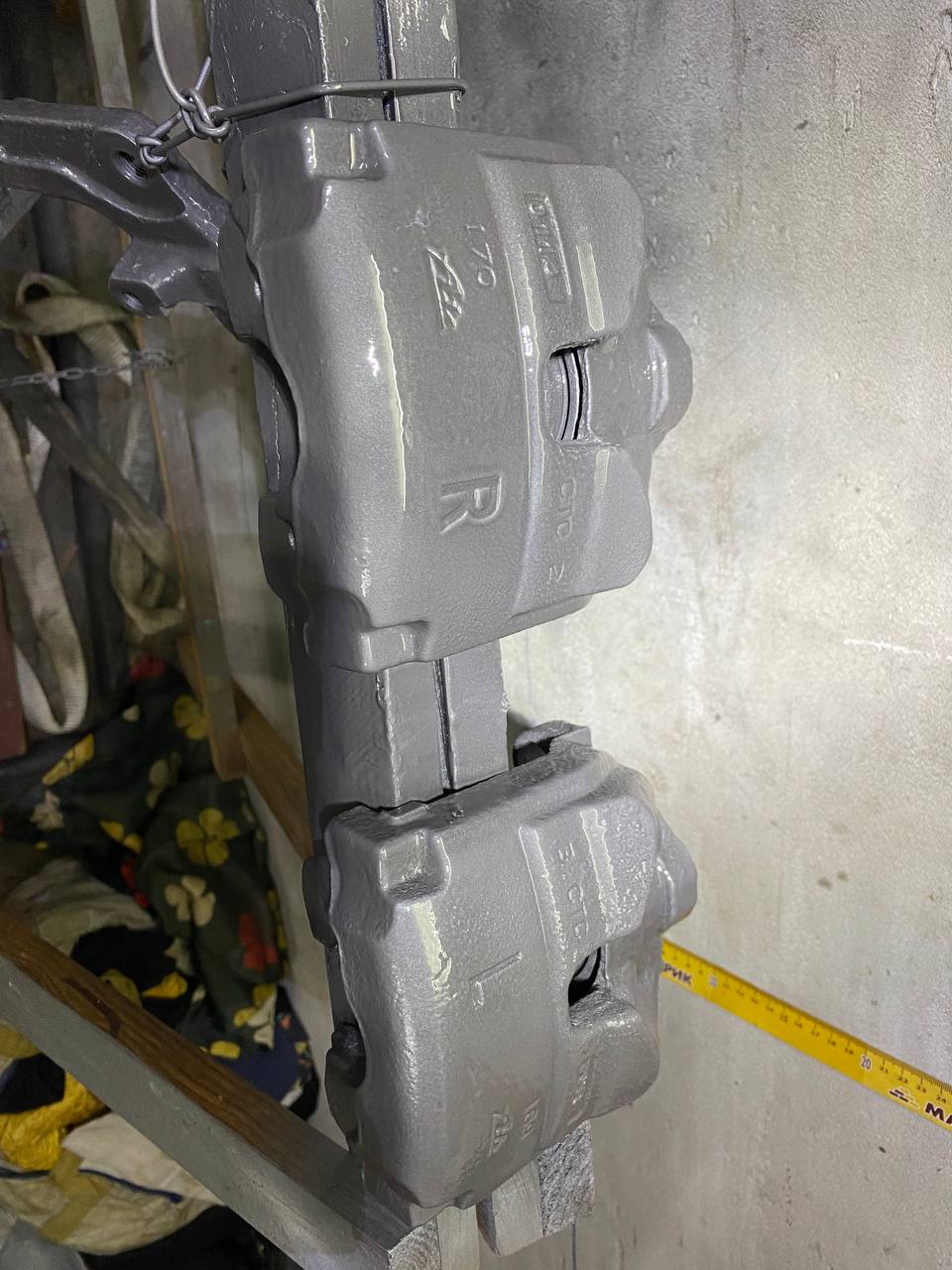

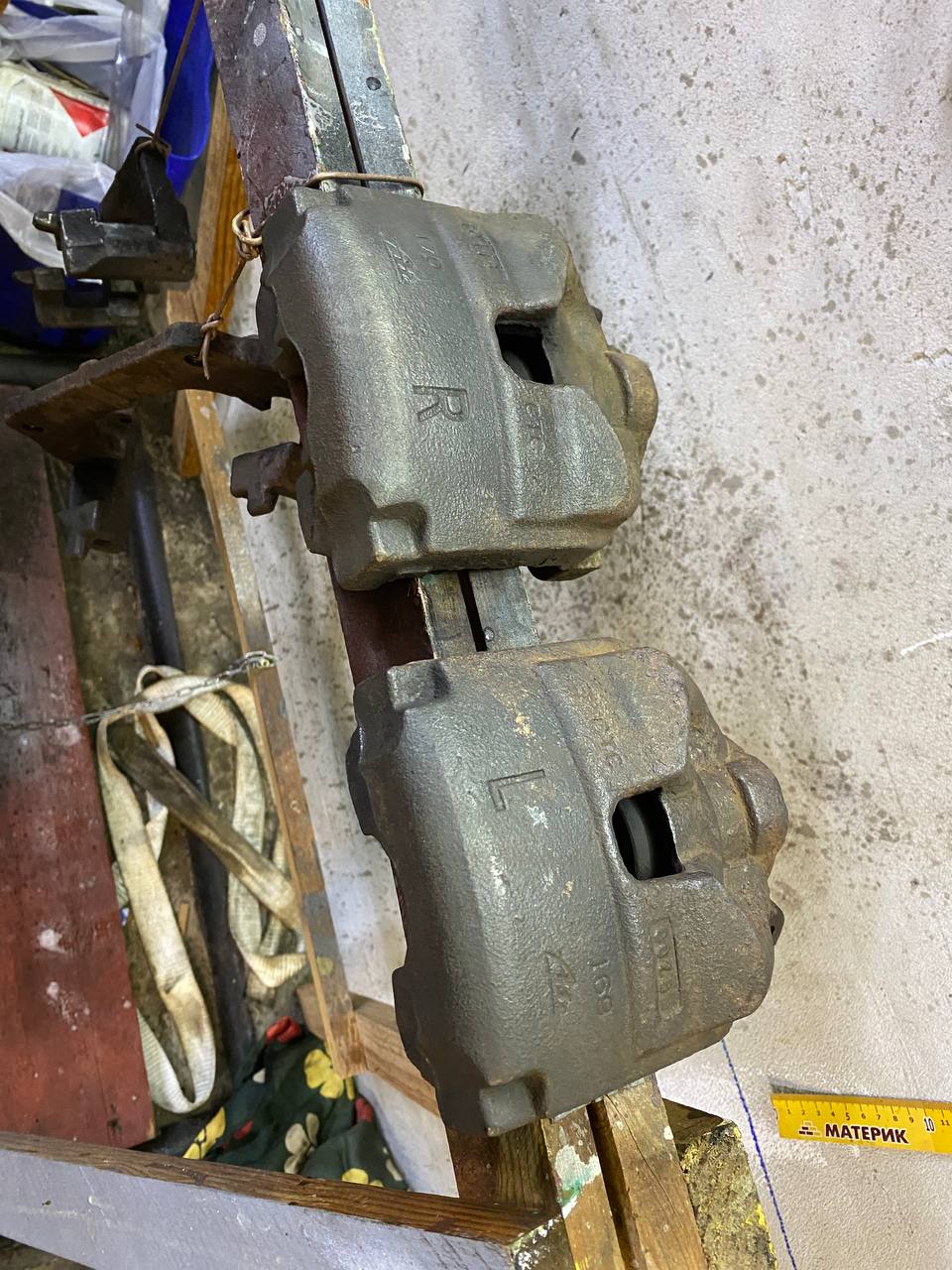

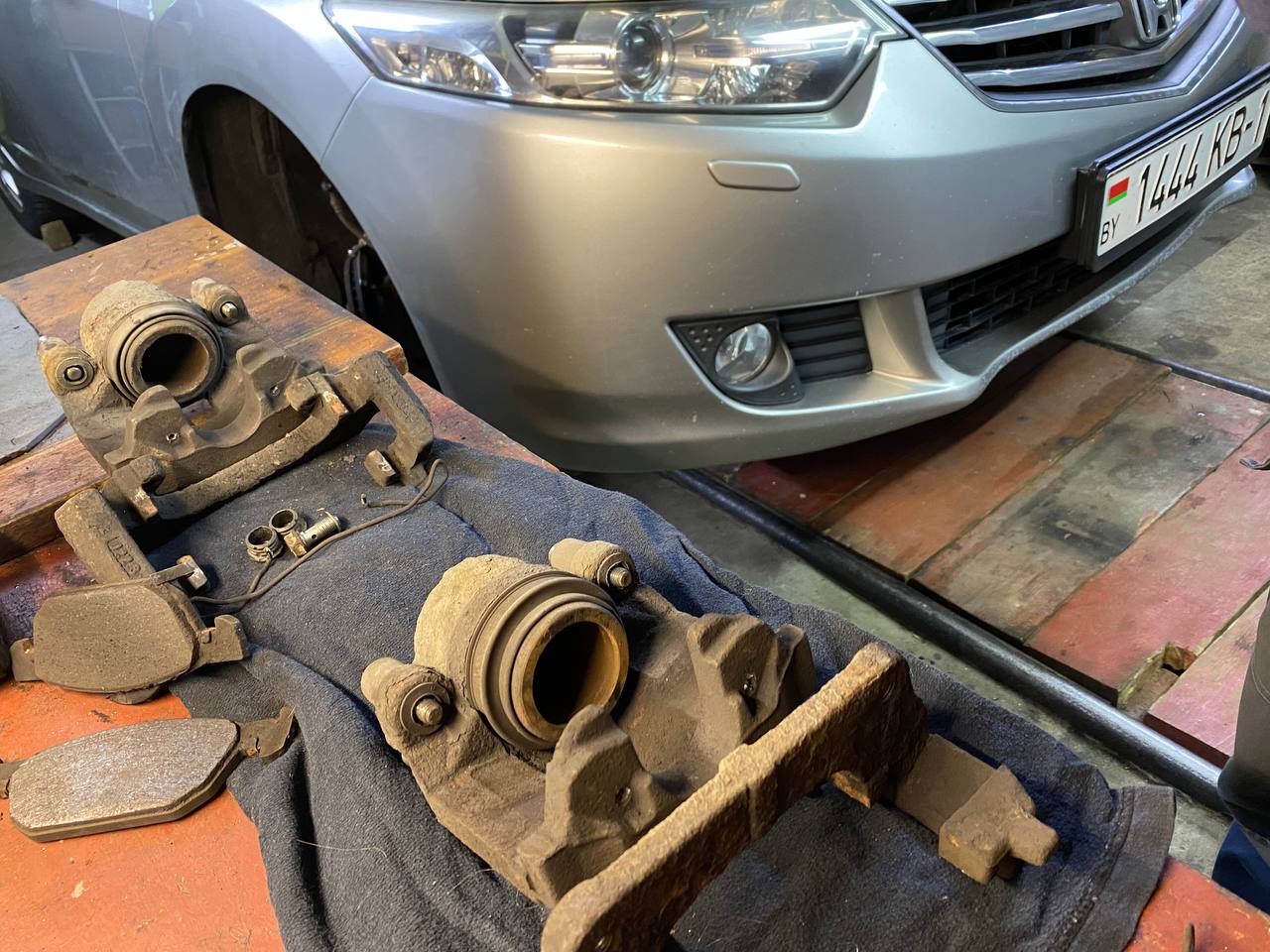

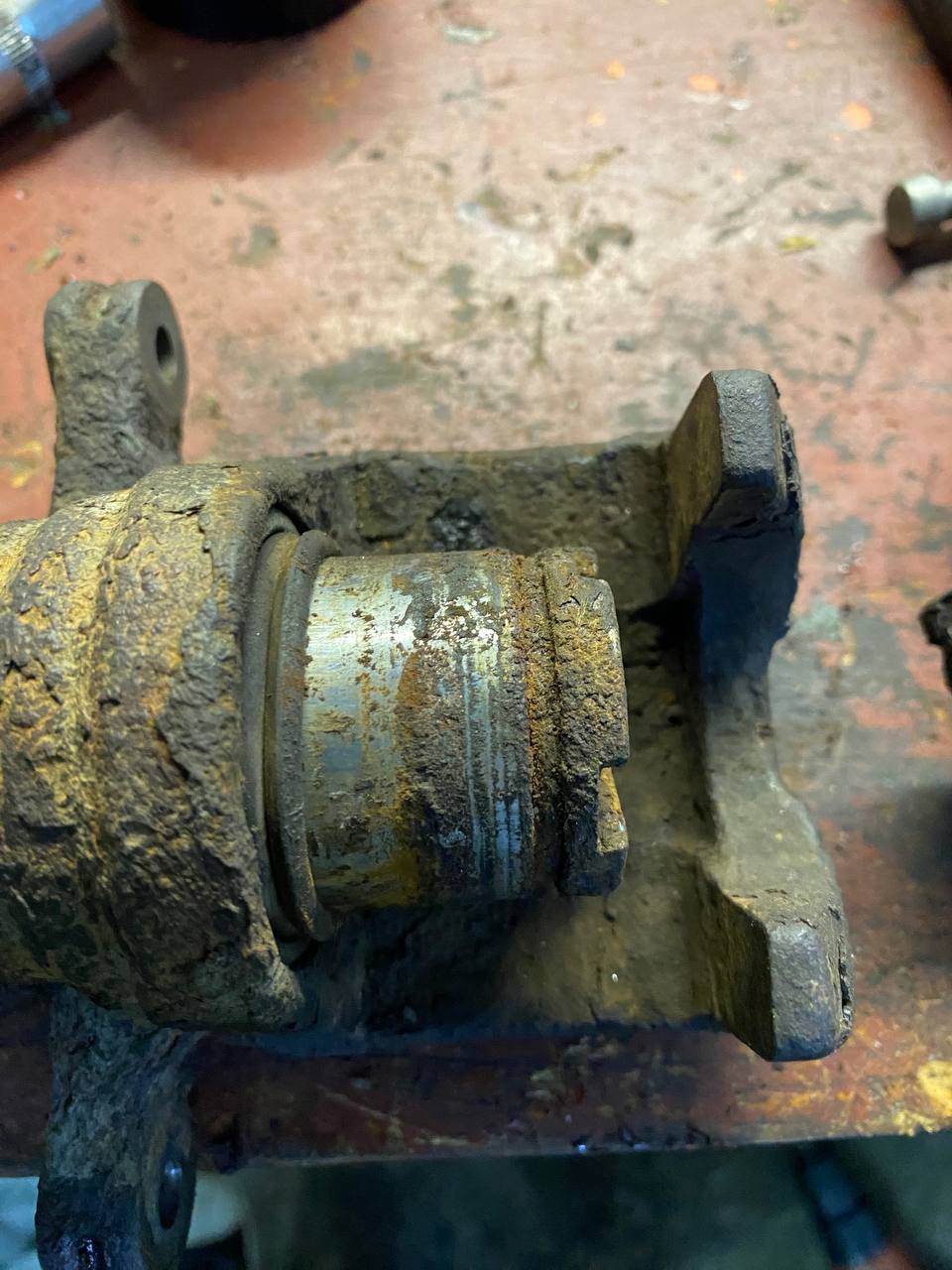

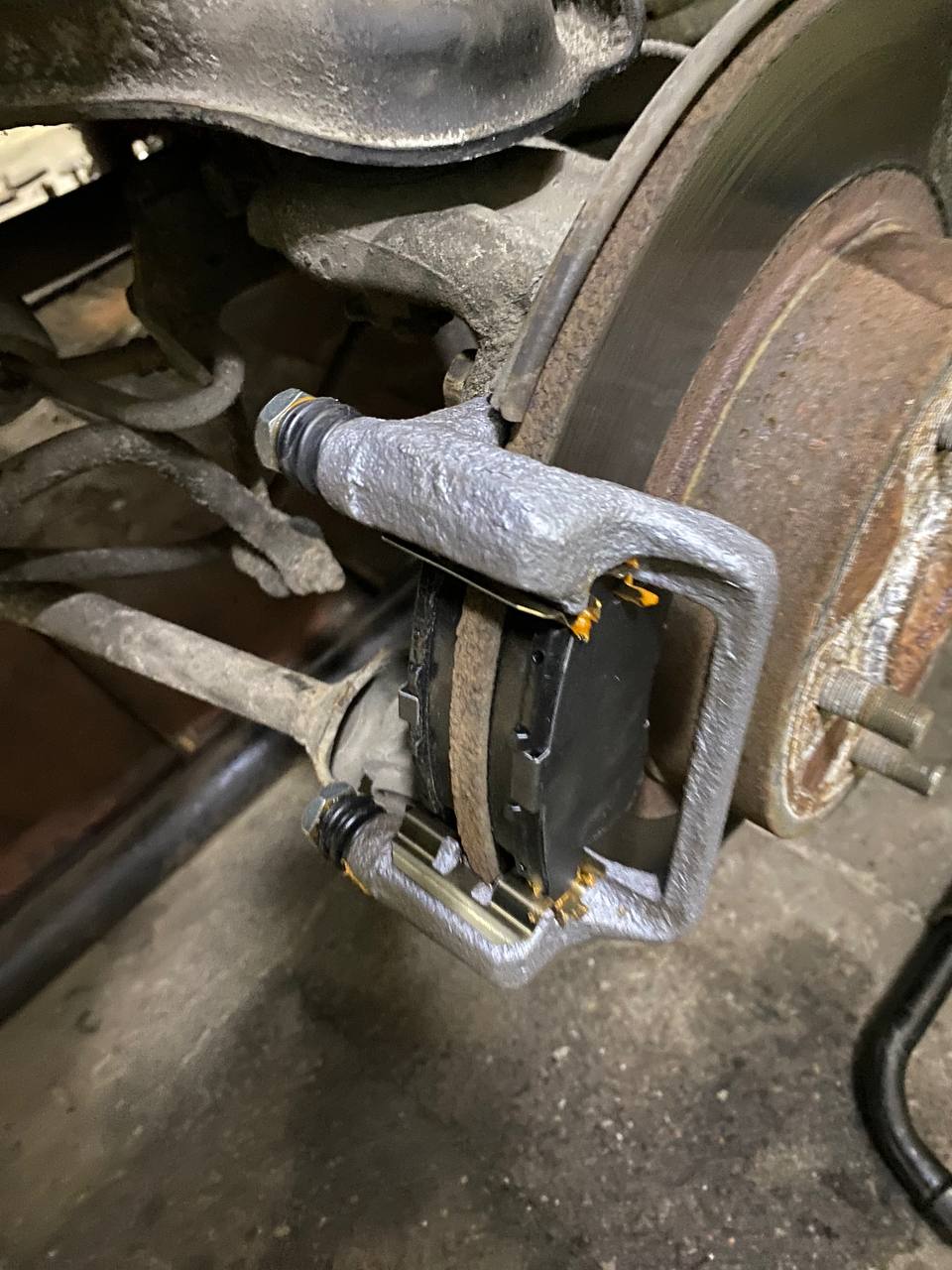

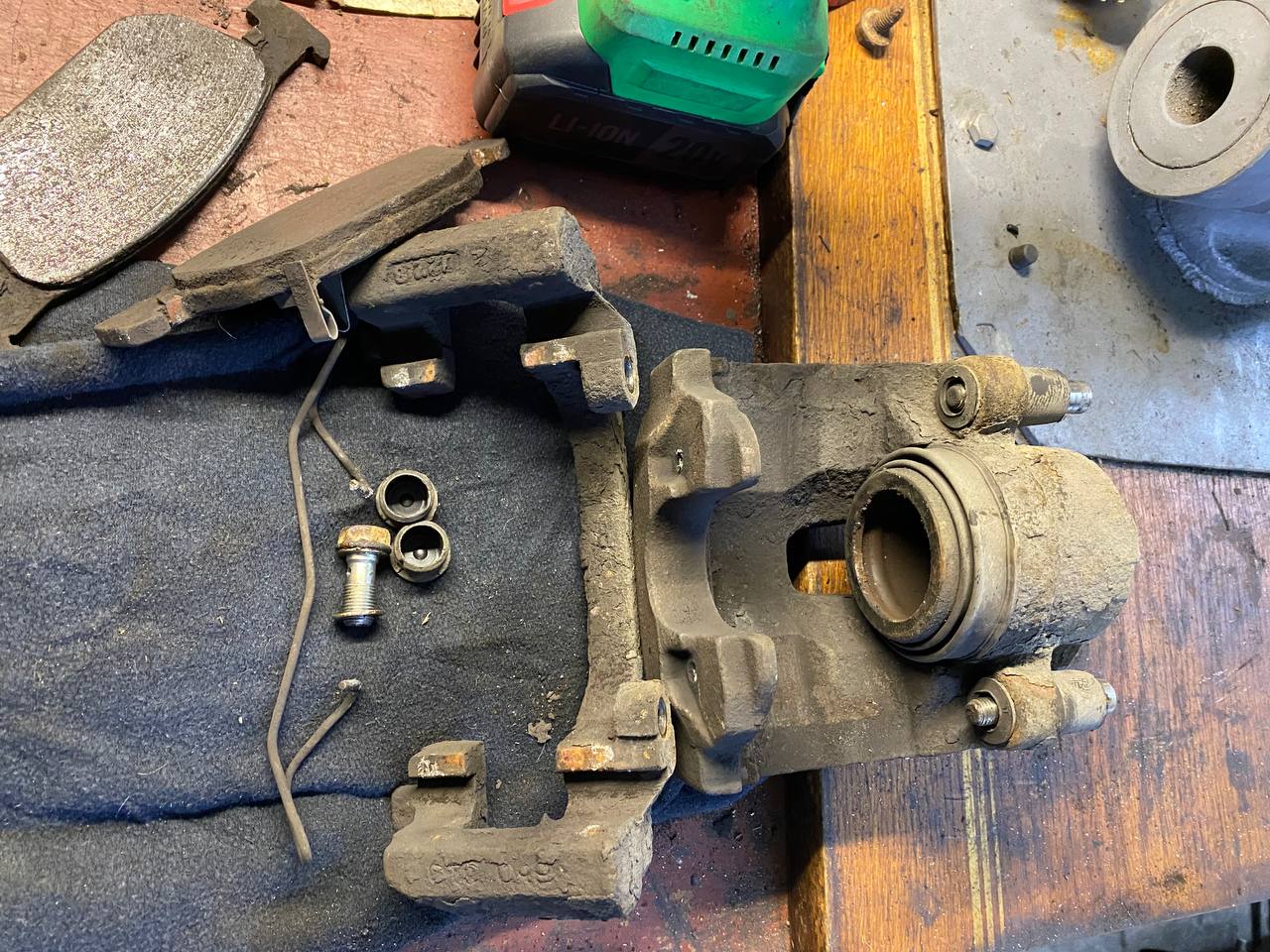

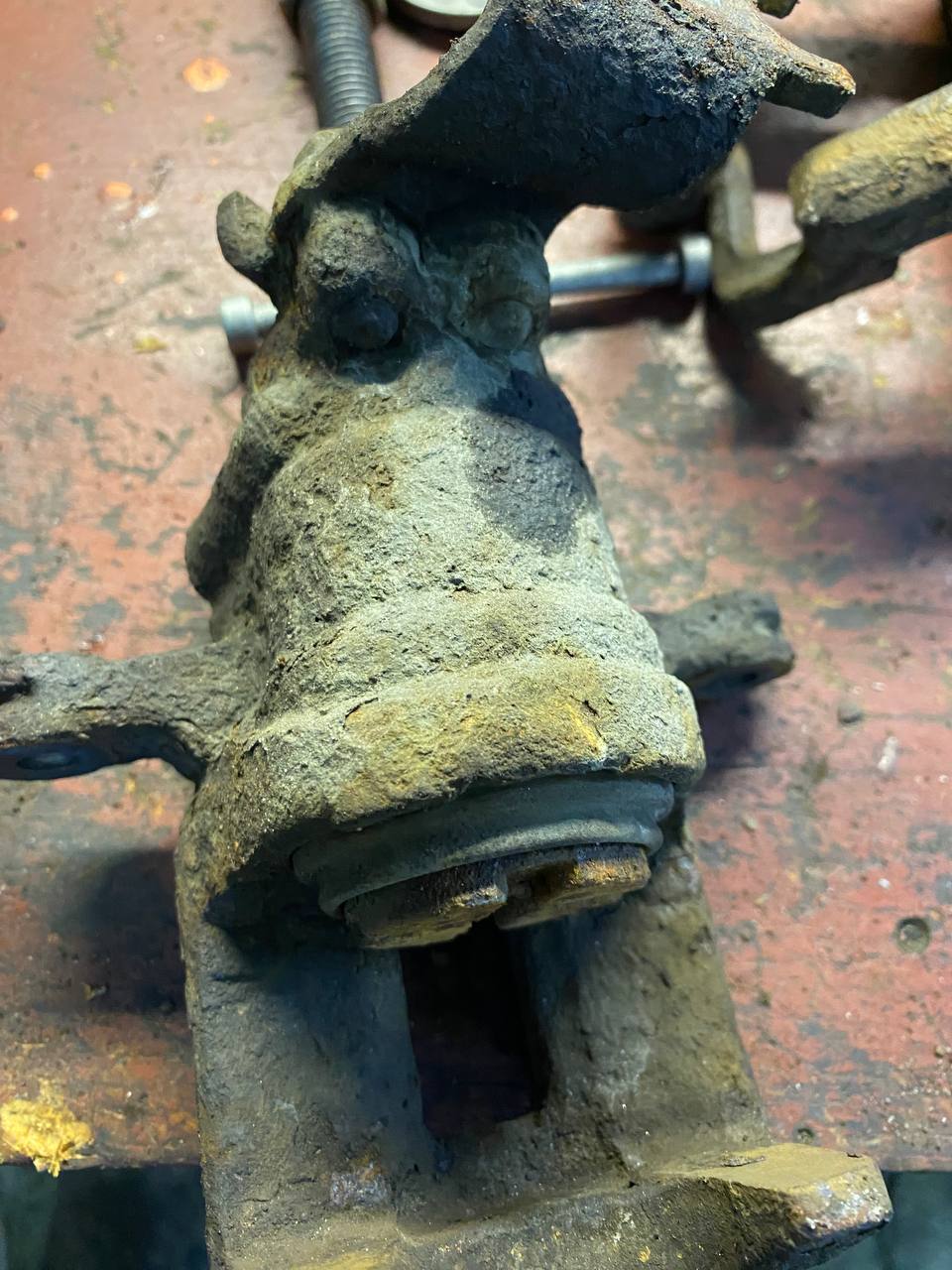

During repairs, brake calipers were cleaned, sandblasted, and then painted in a “graphite” color. Their poor initial condition was due to lack of service for at least 95,536 kilometers. The goal was to achieve a finish close to the original factory appearance.

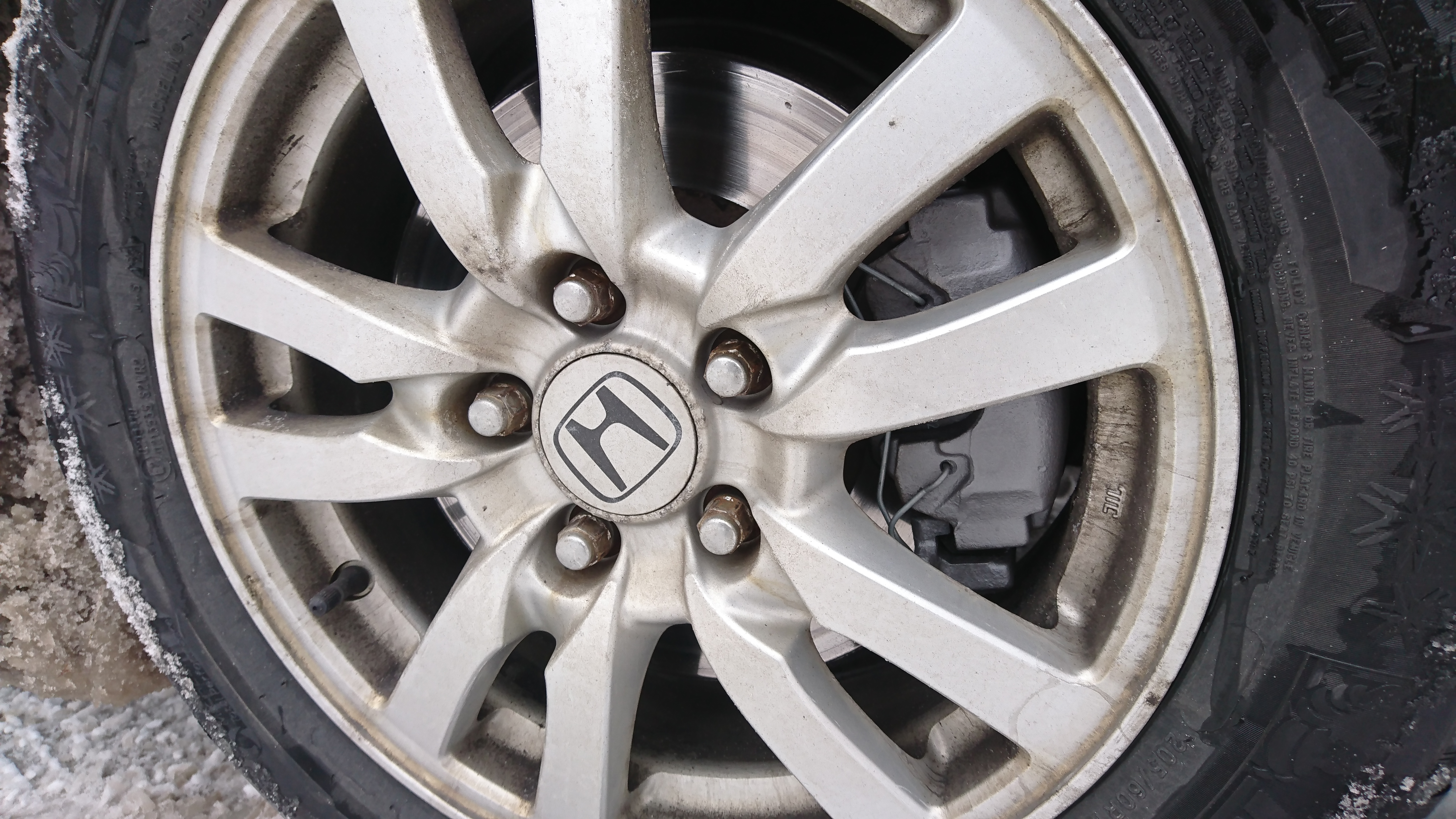

/posts/car/036/72.jpg /posts/car/036/73.jpg

Numbers after # correspond to part numbers from the diagram at the beginning of the post for easy reference.

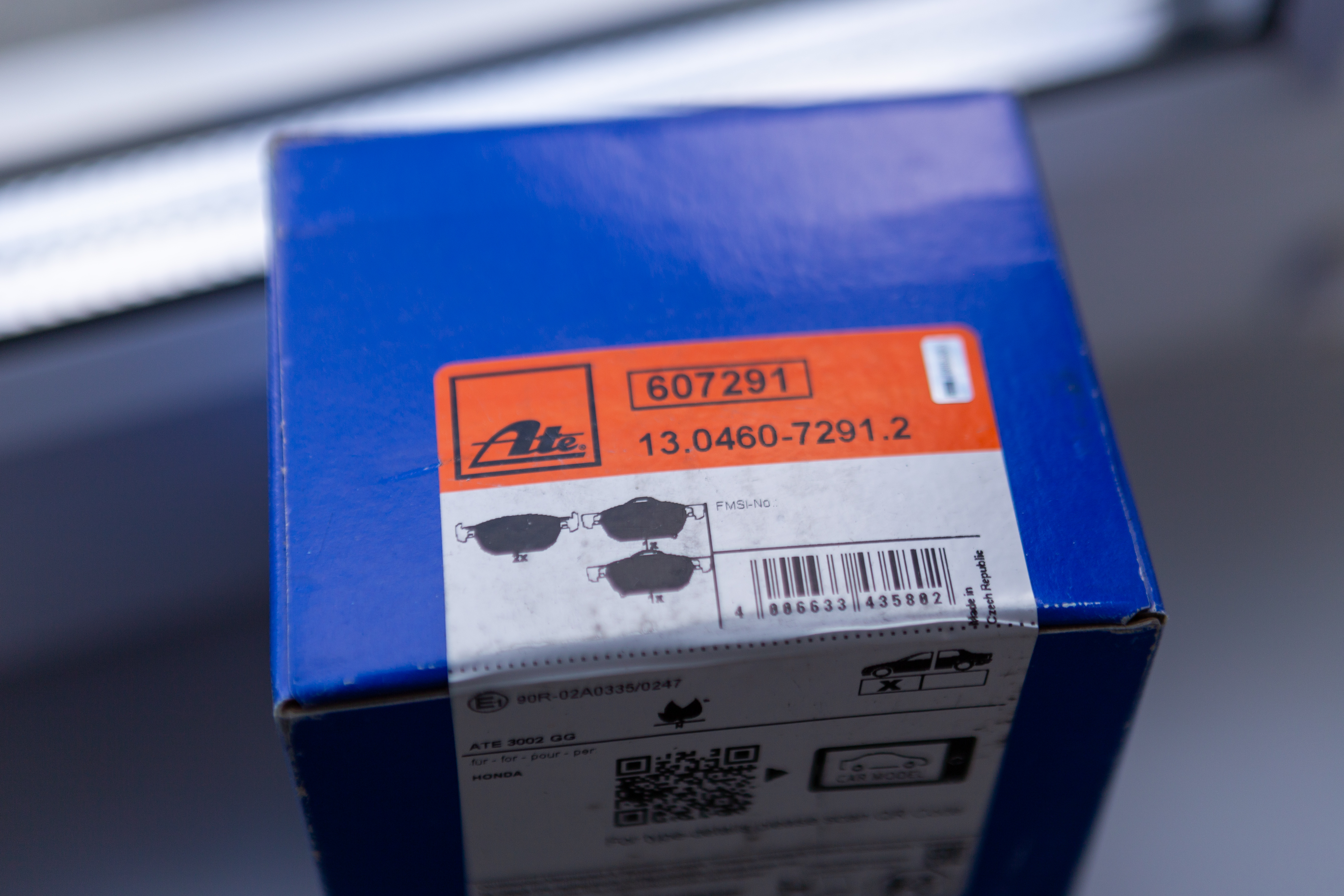

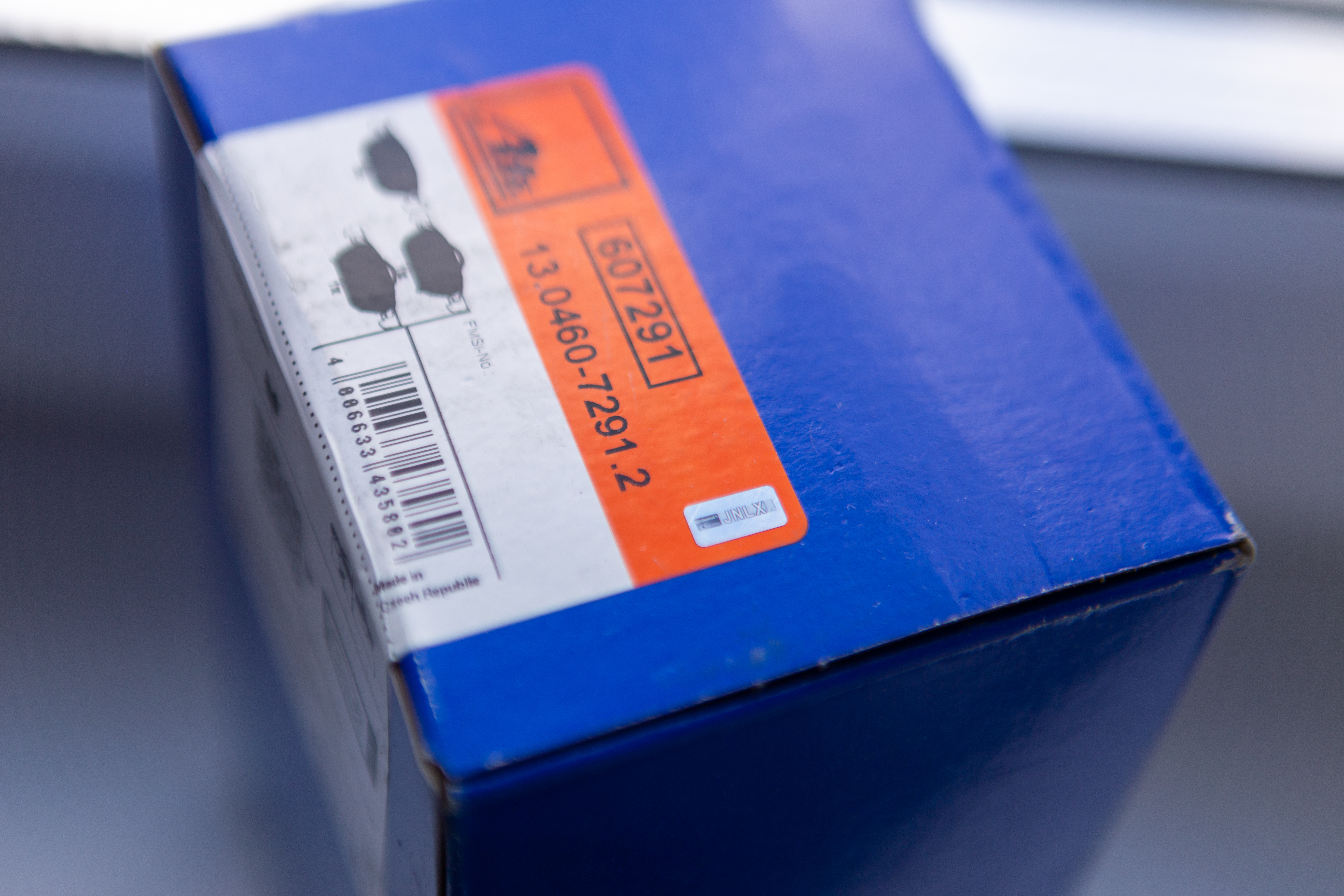

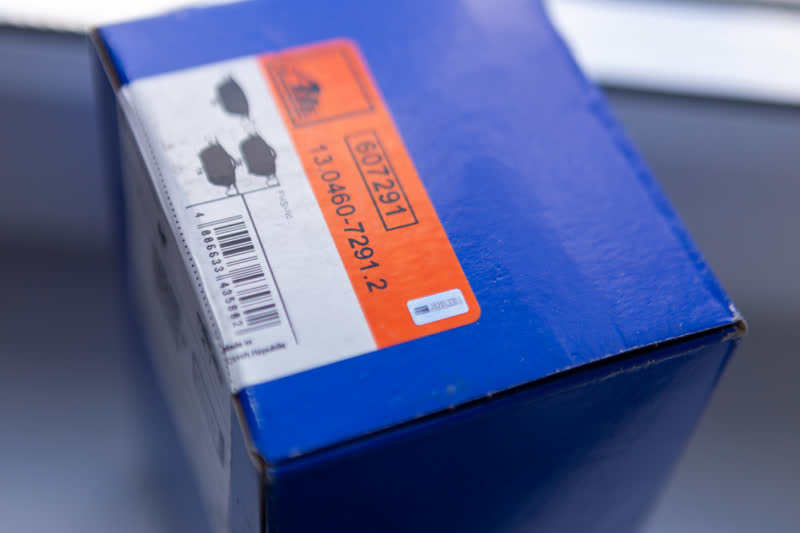

  • Front brake pads #11 / ATE 13.0460-7291.2 / 44 USD

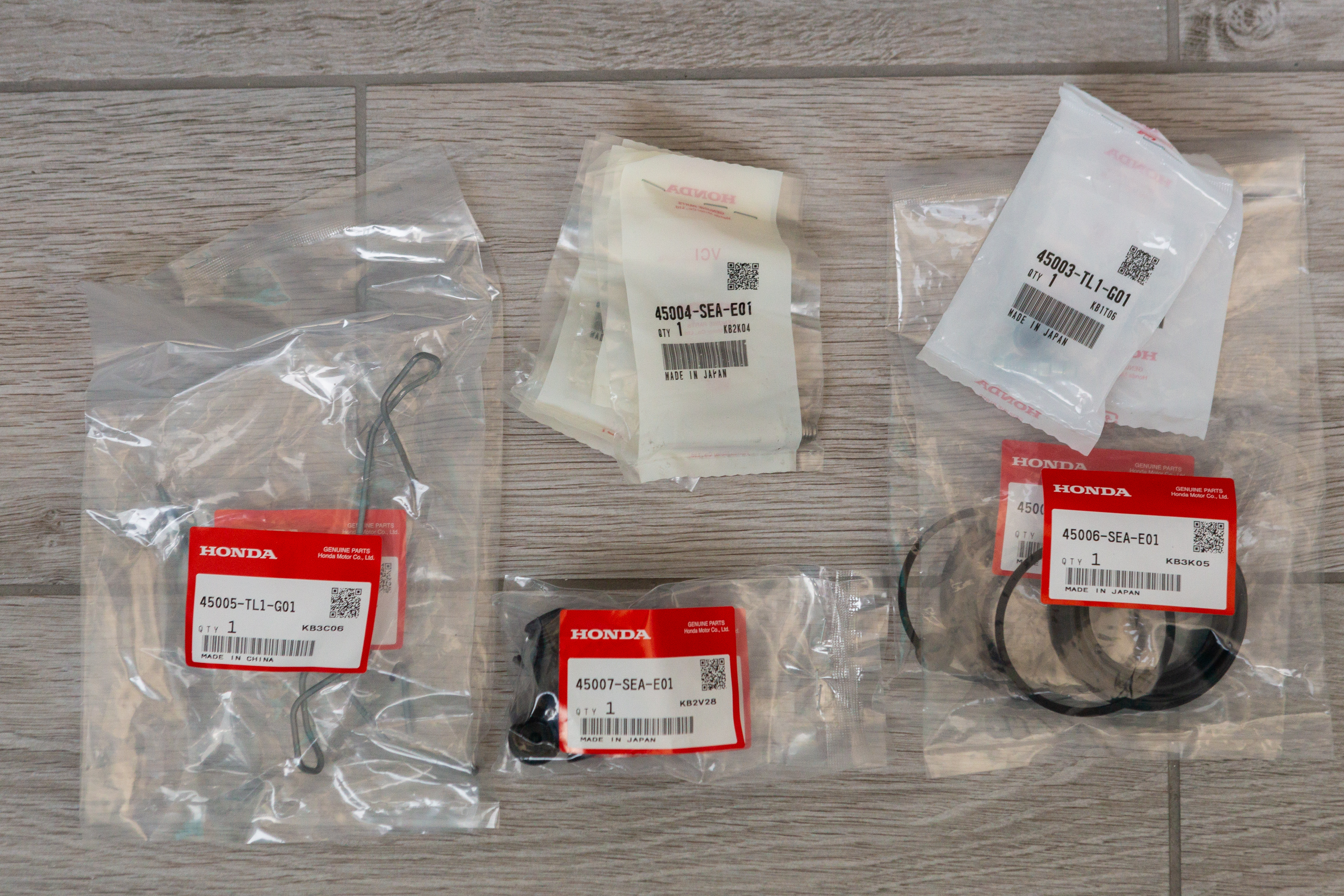

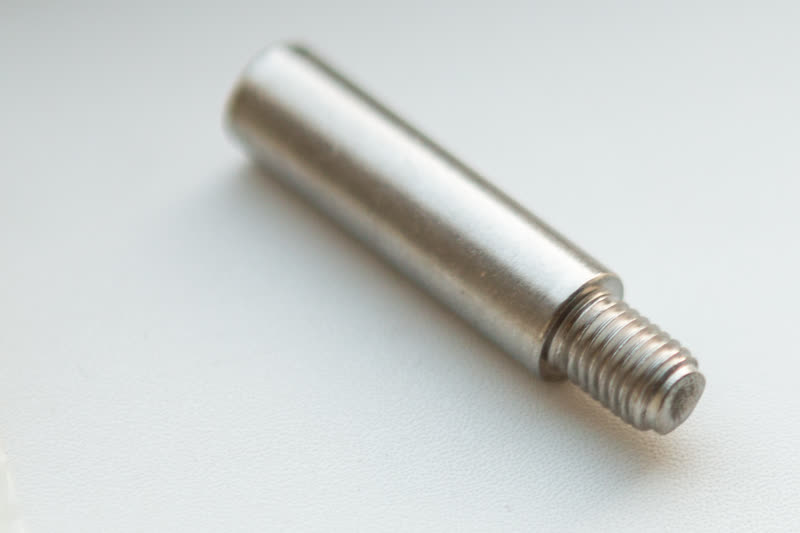

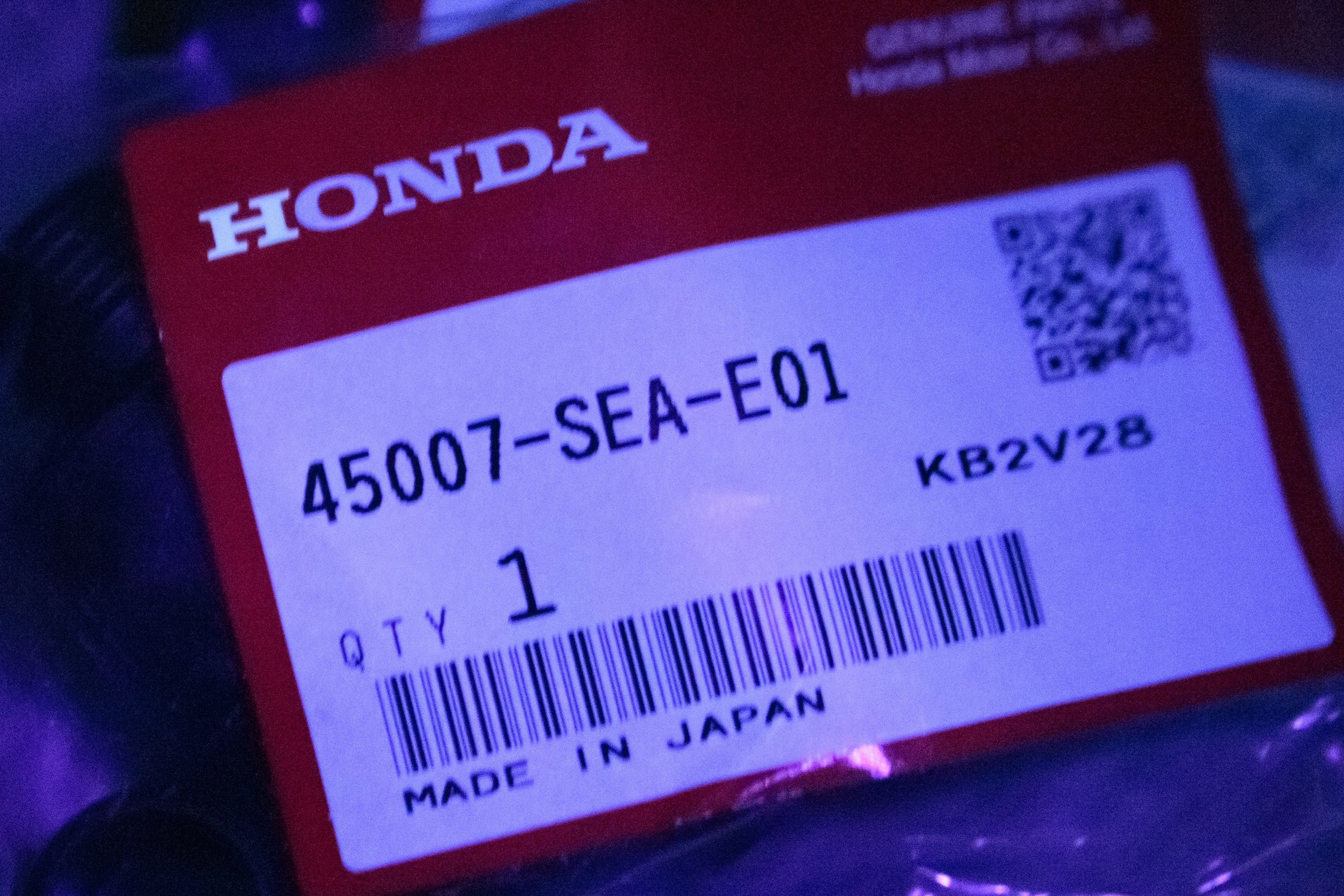

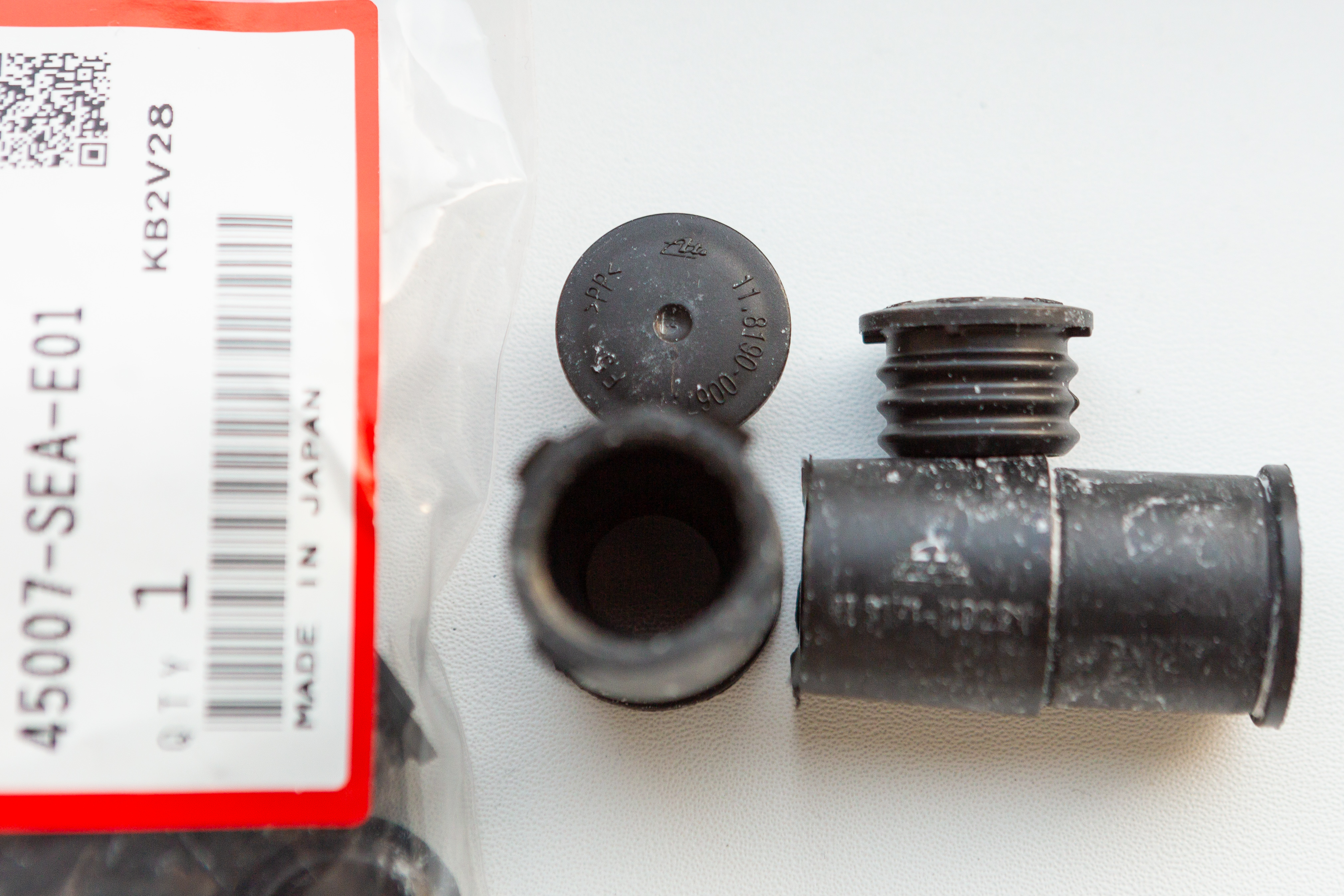

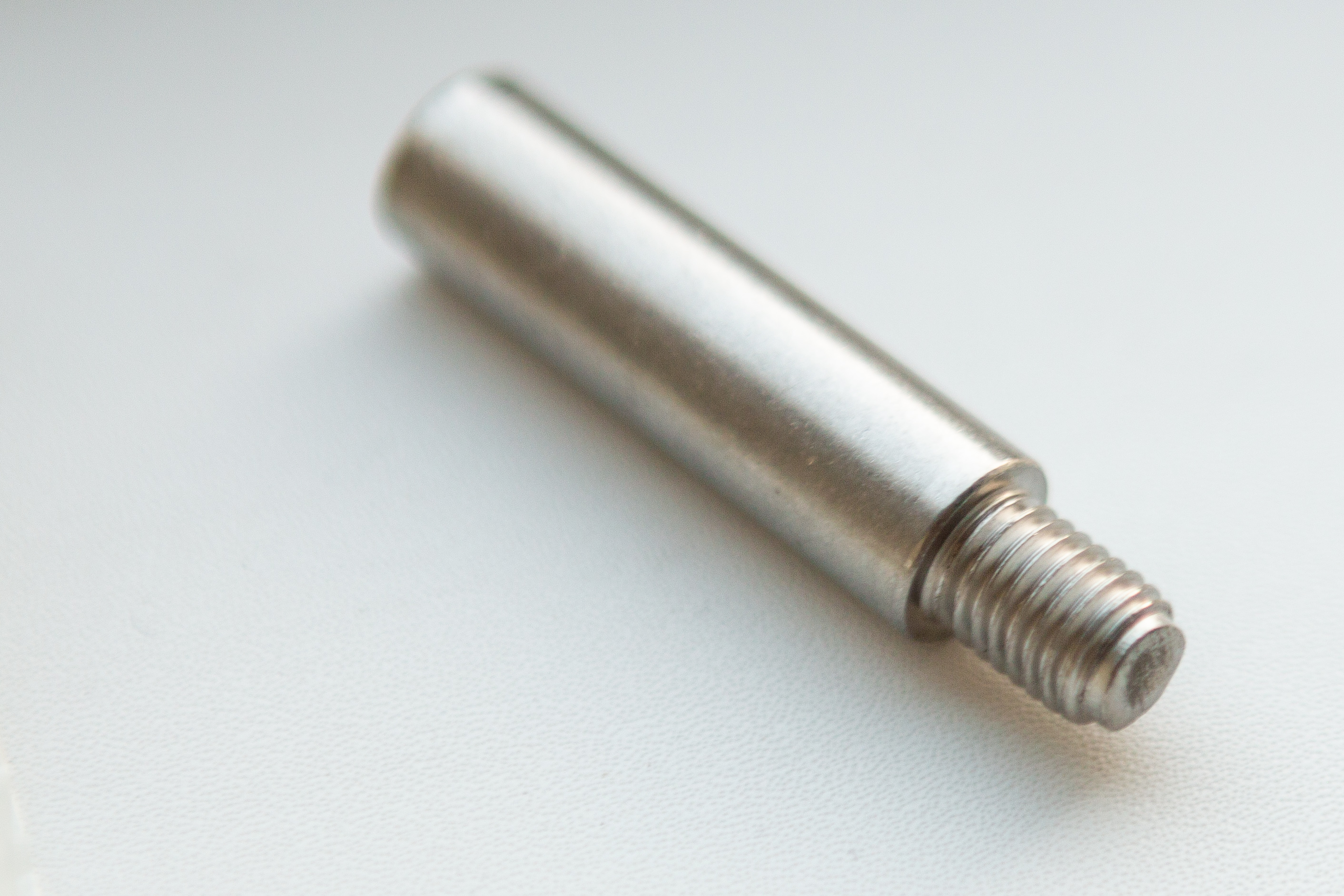

  • Front caliper slide pins #9 / Honda 45007-SEA-E01 / 22x2 USD

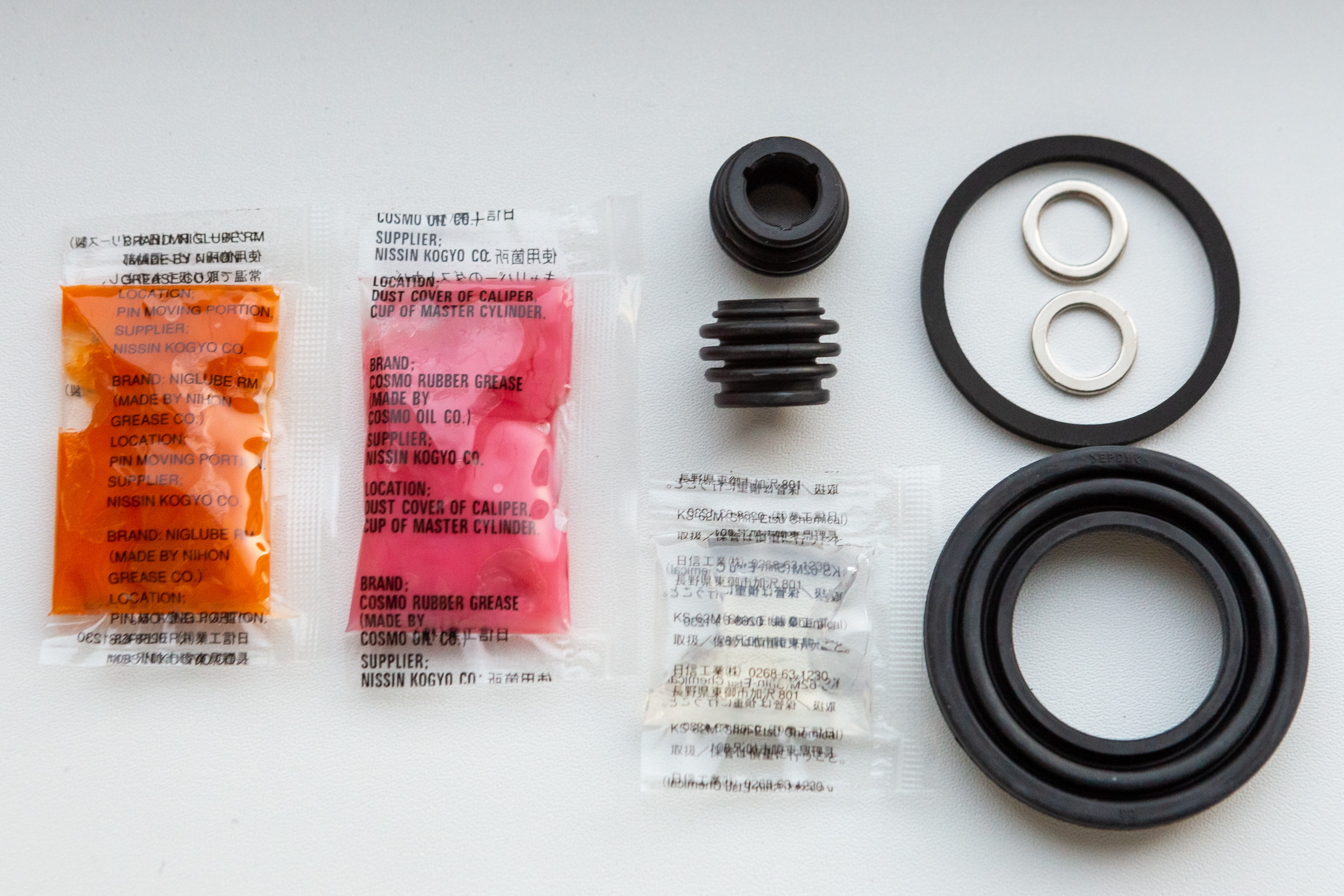

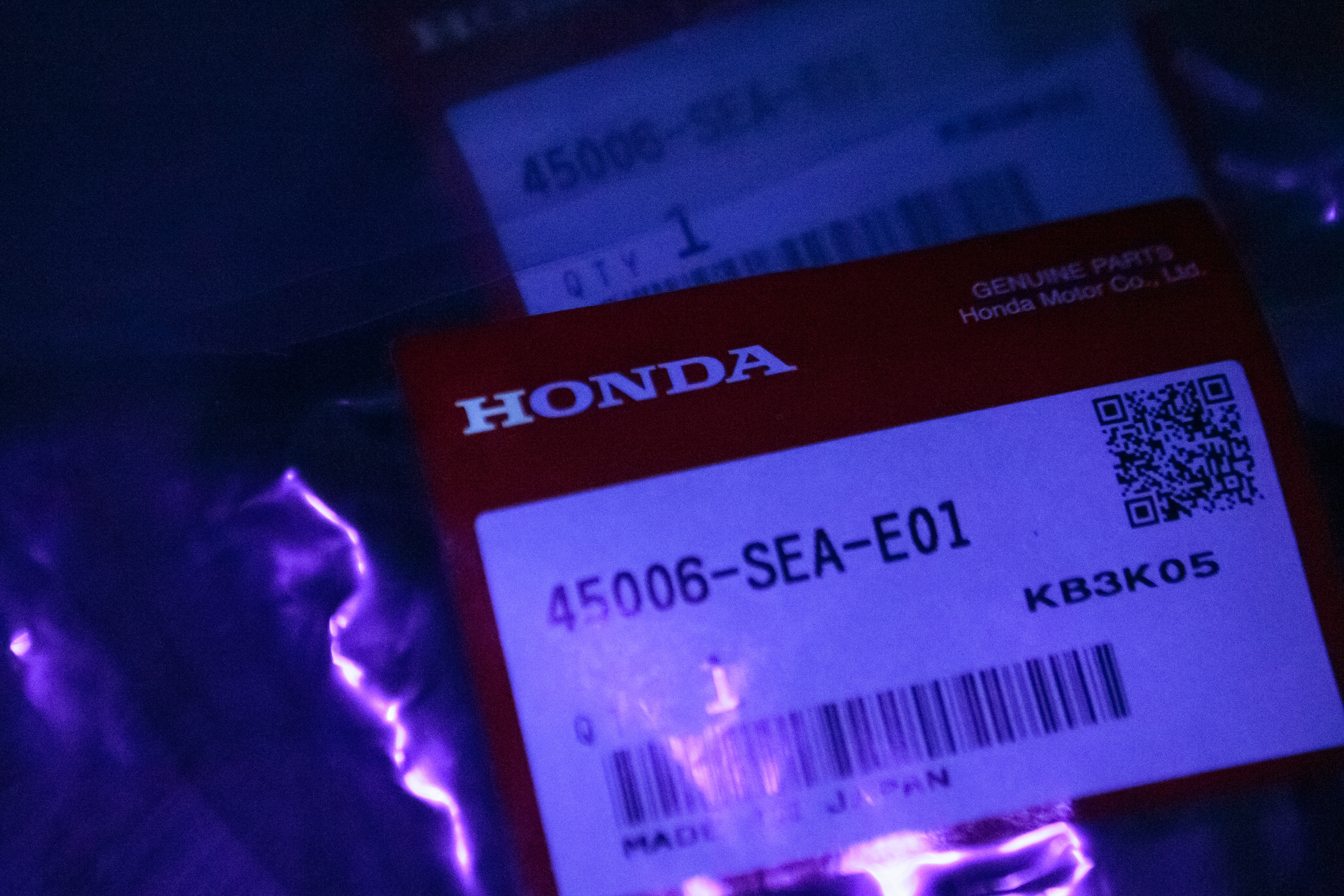

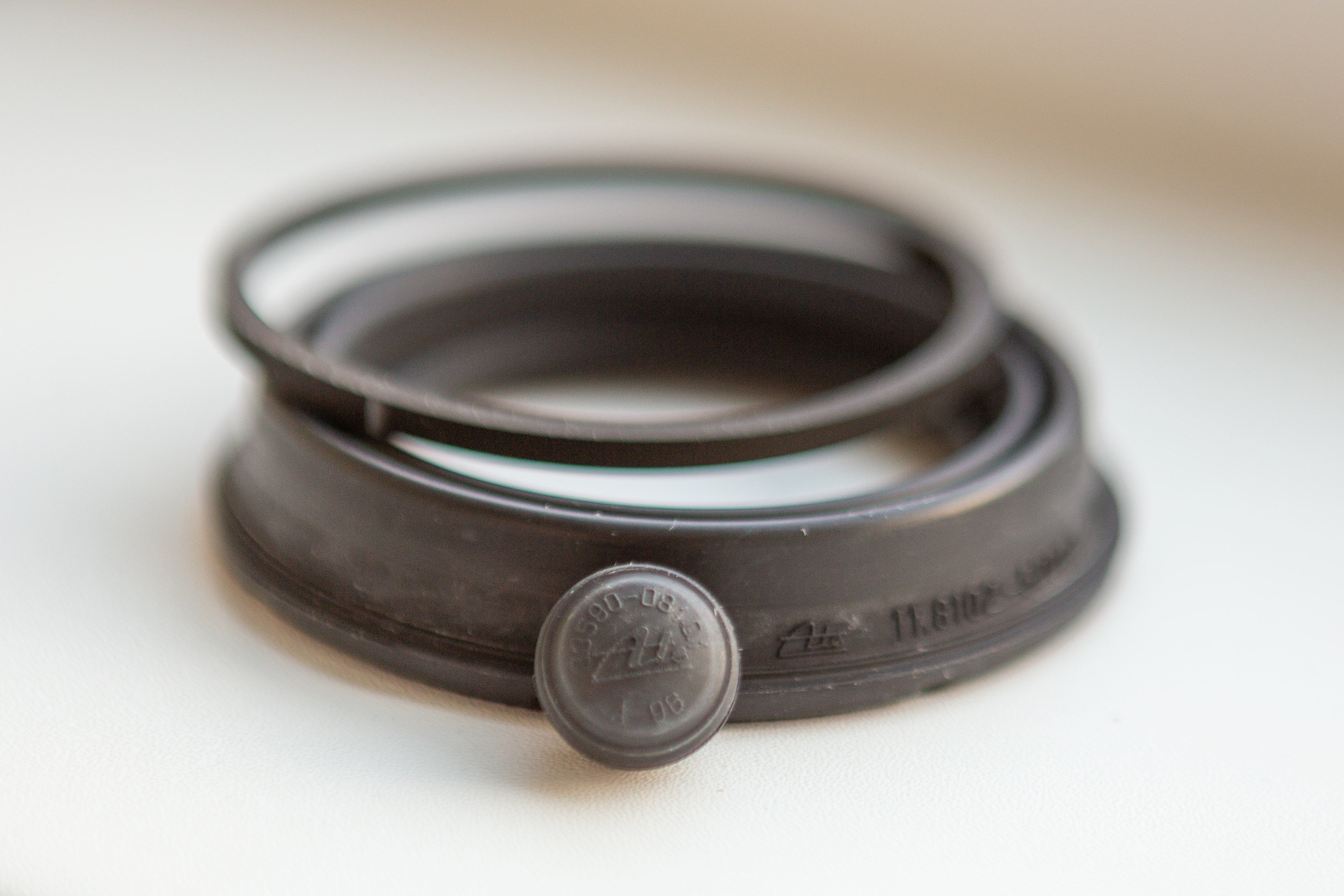

  • Front caliper repair kit #8 / Honda 45006-SEA-E01 / 33x2 USD

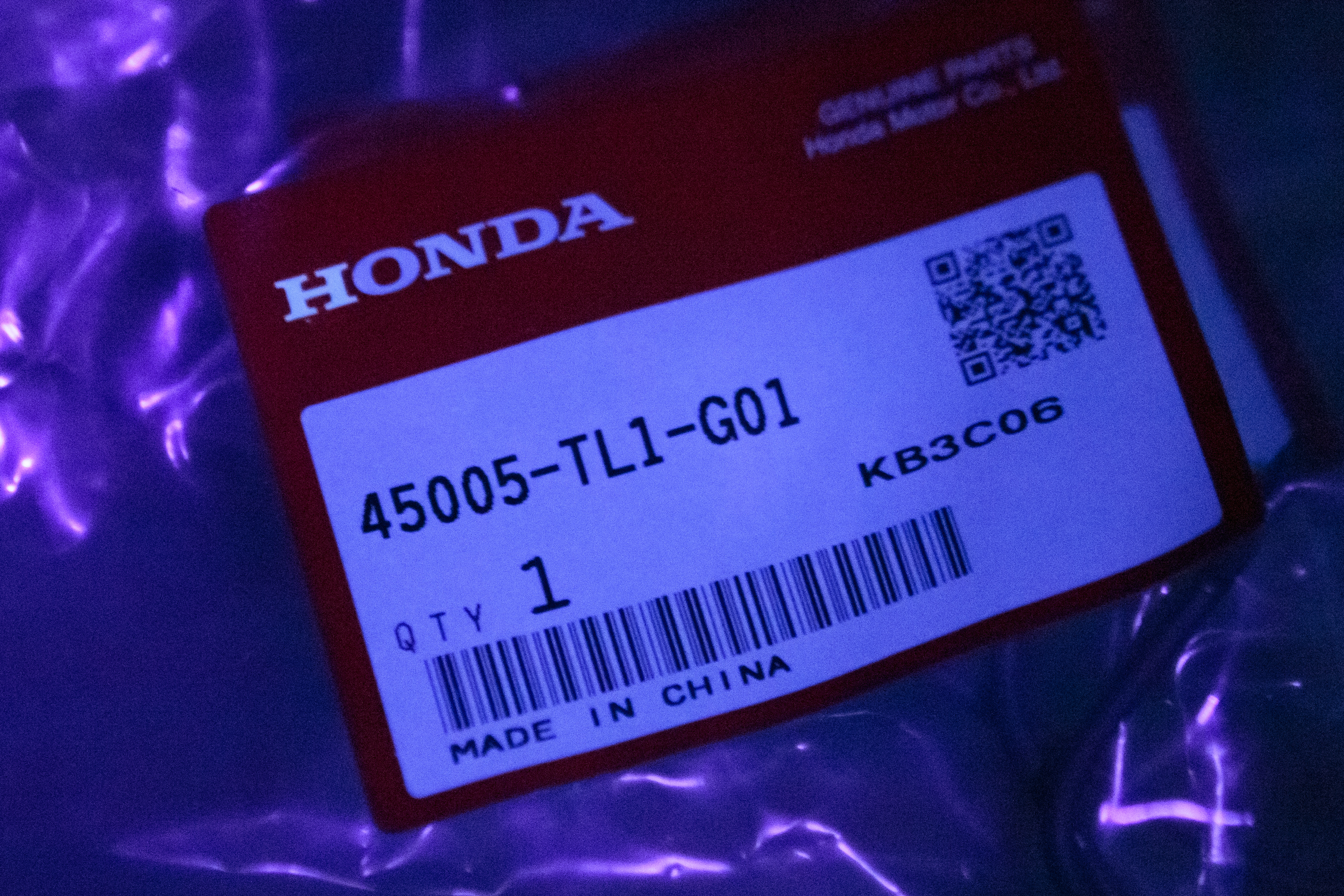

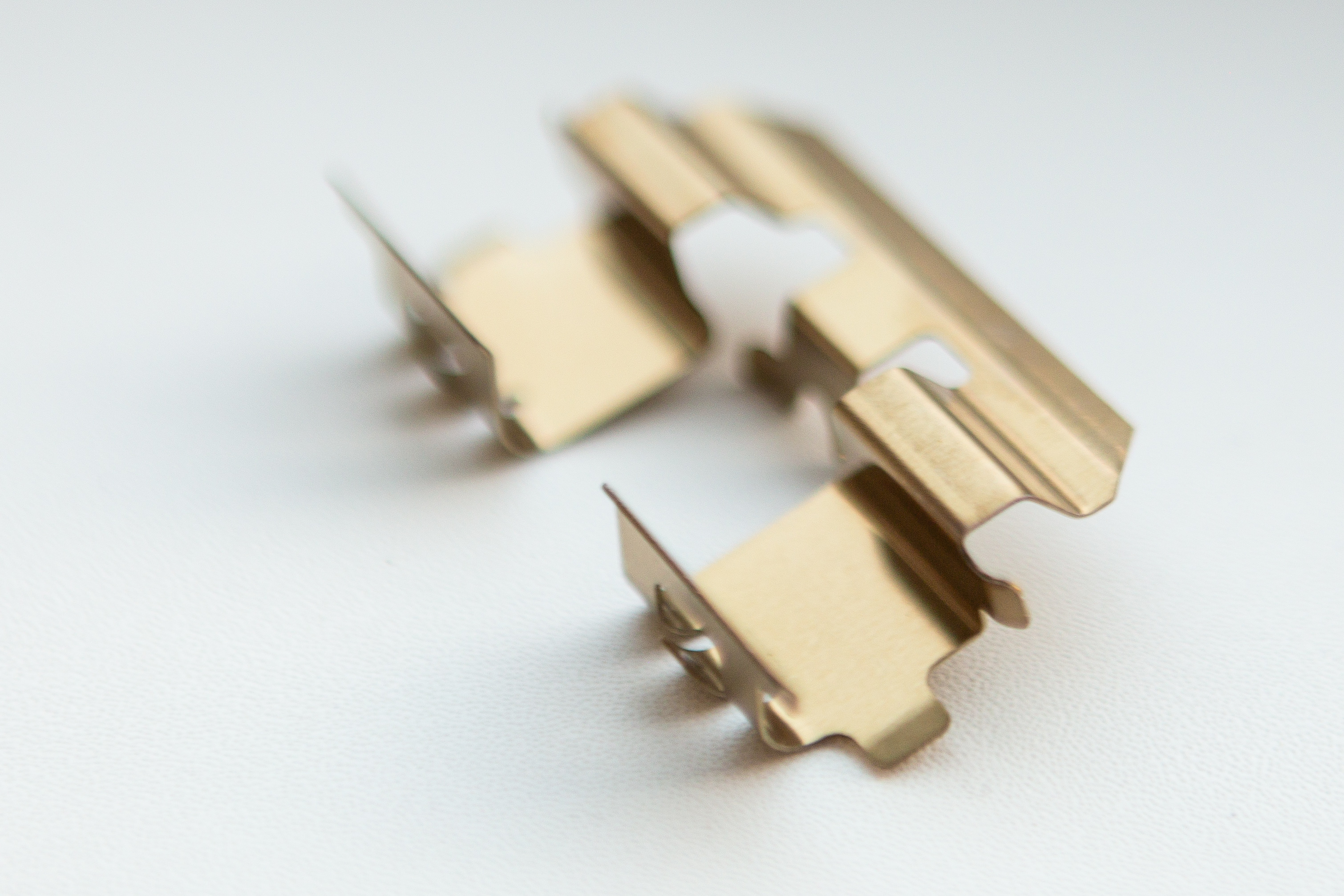

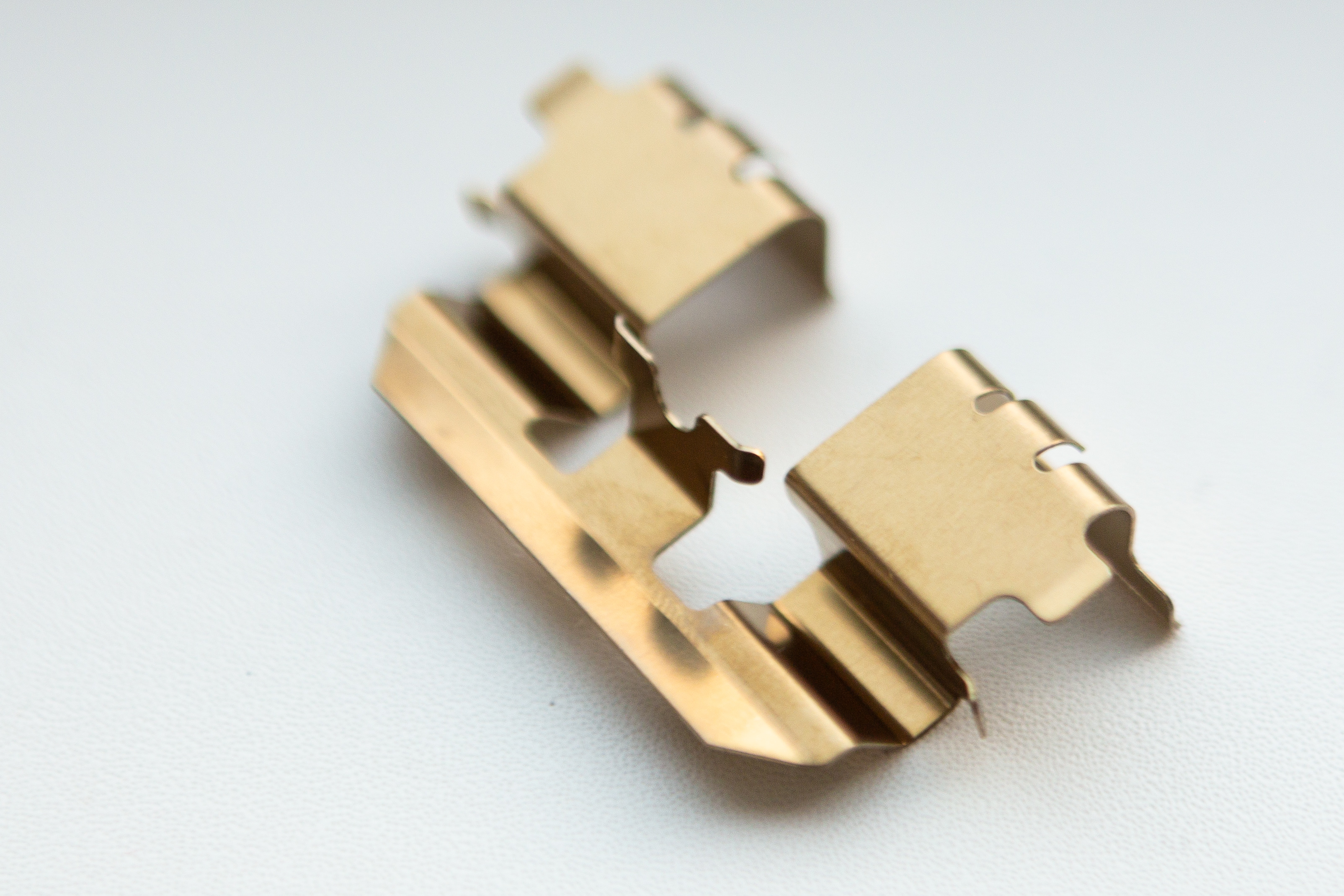

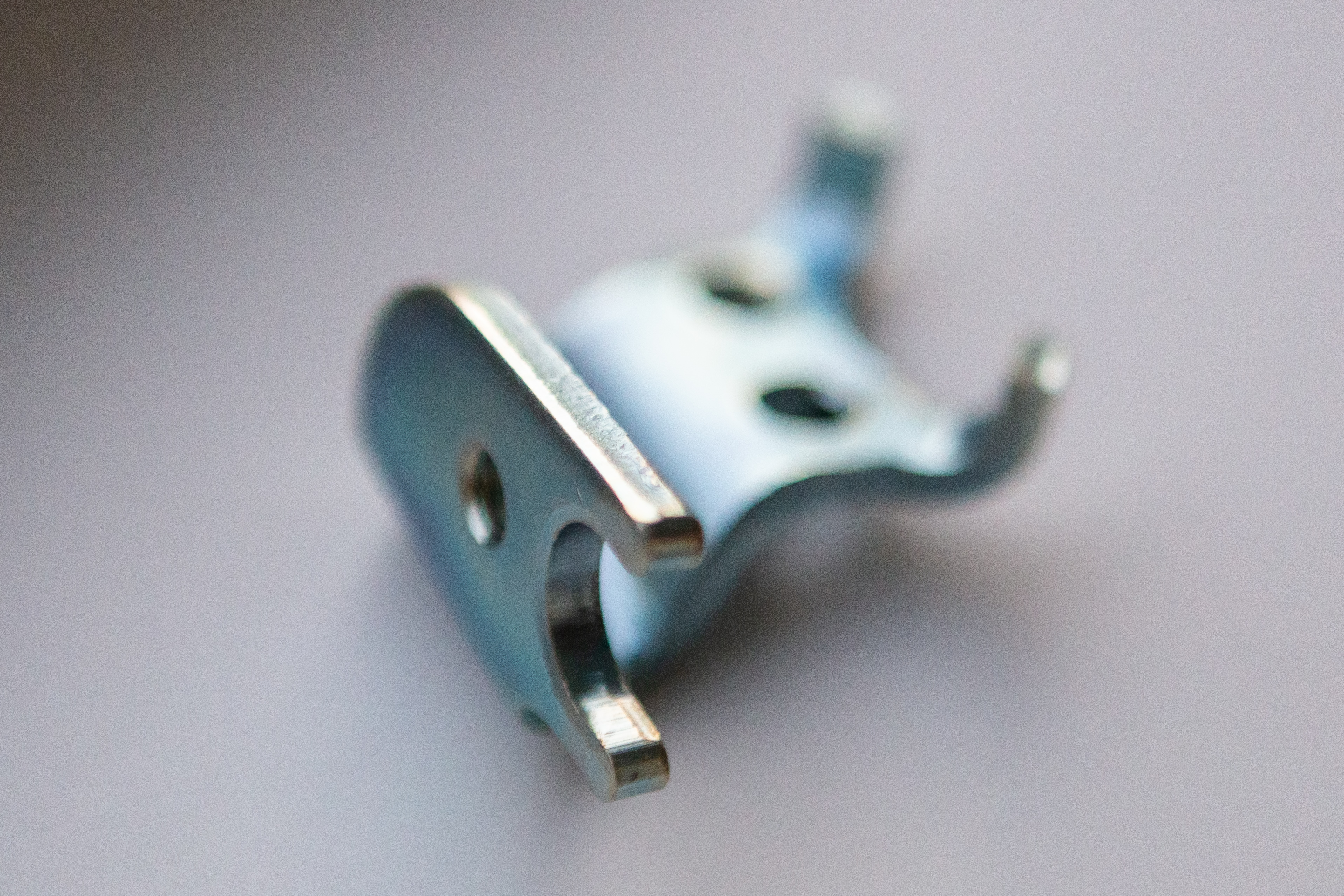

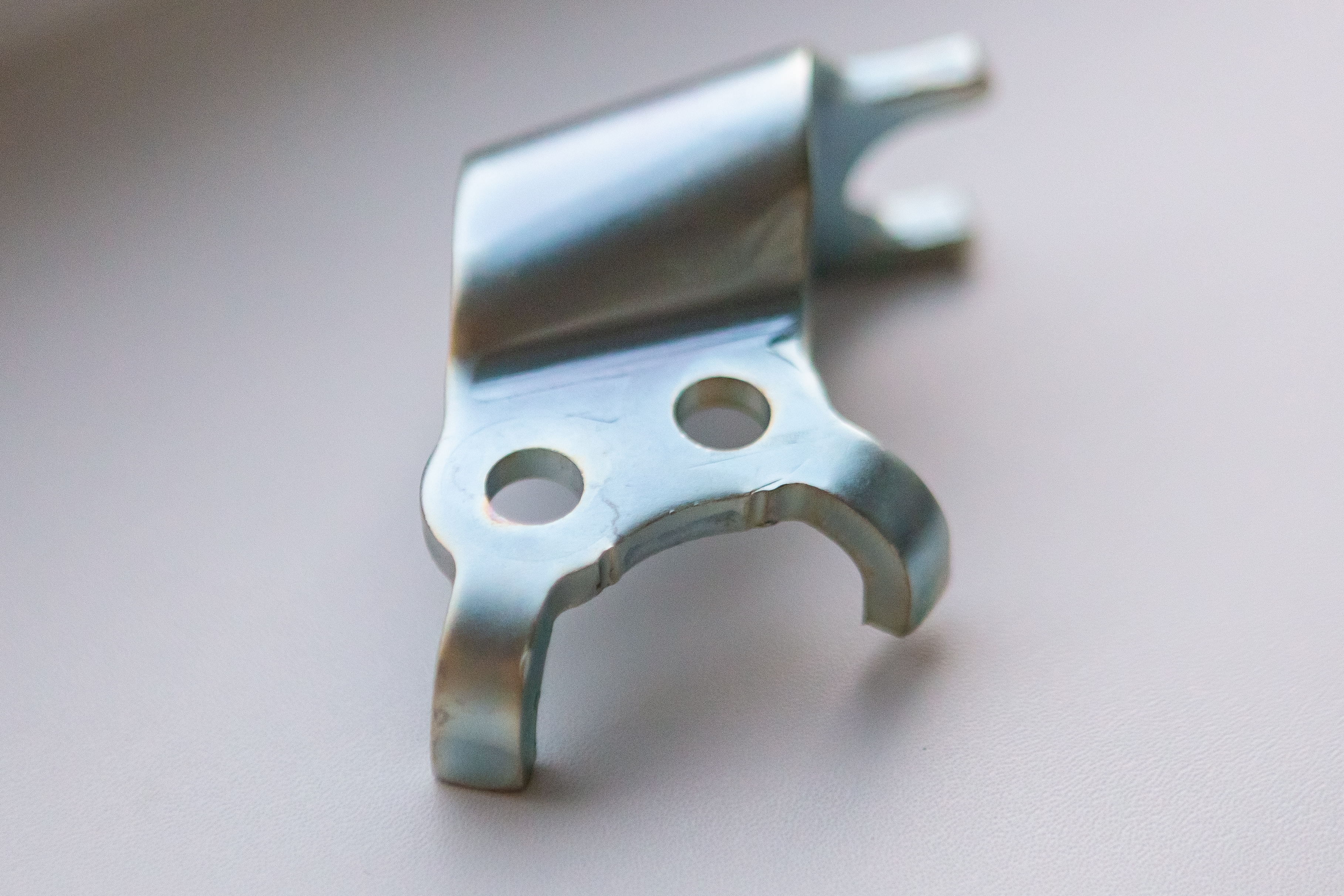

  • Front caliper retainer #7 / Honda 45005-TL1-G01 / 9x2 USD

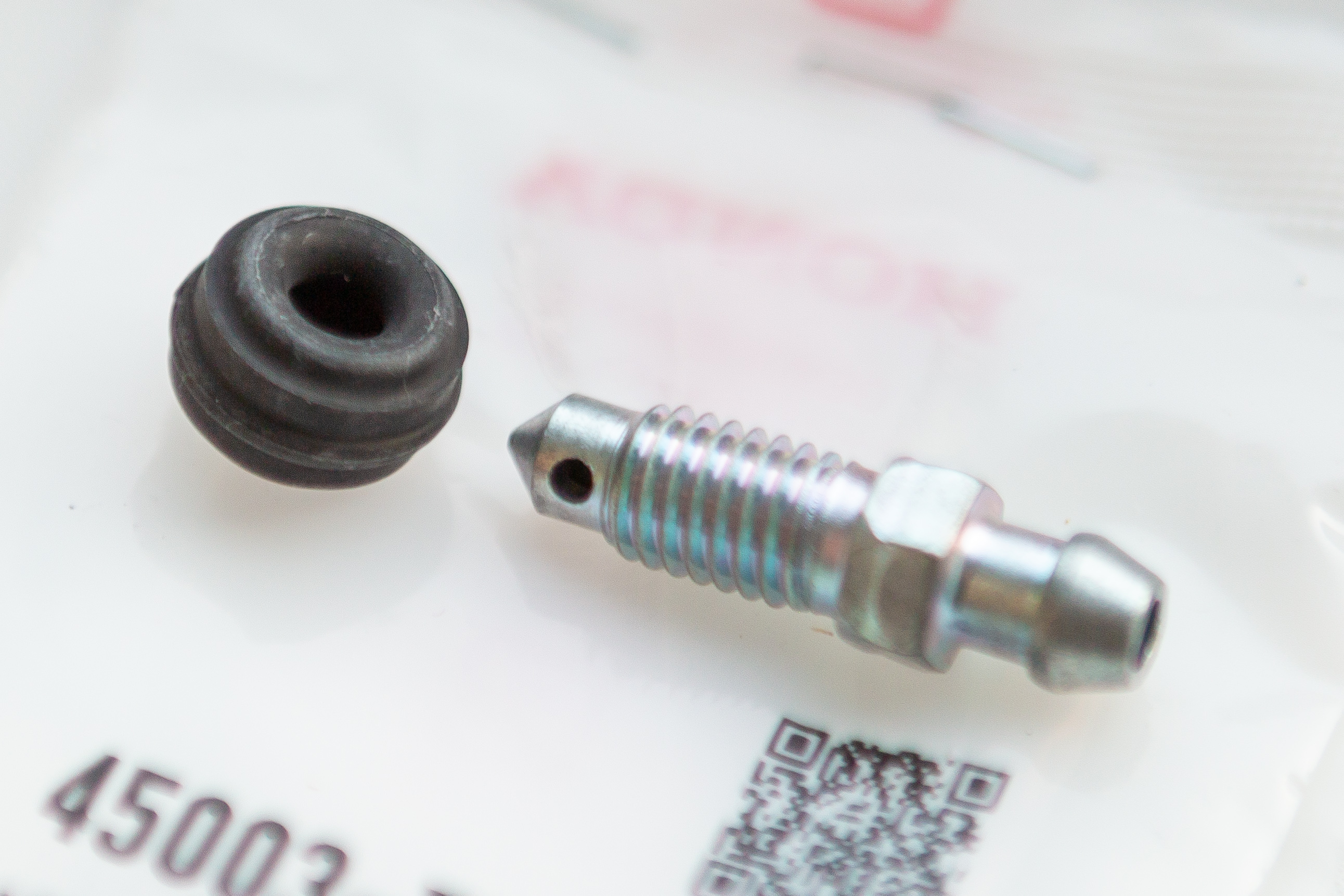

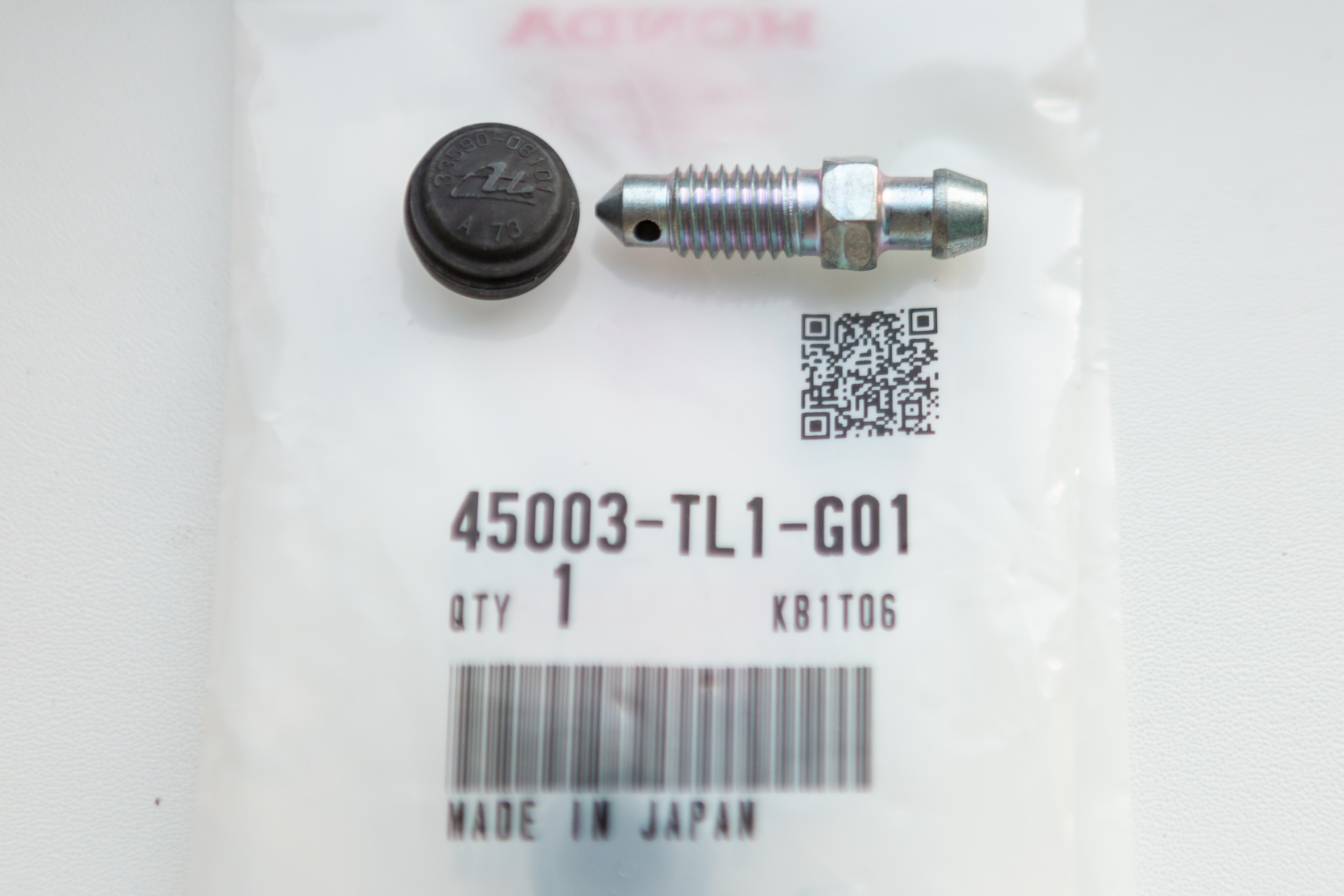

  • Front caliper bleeder valve #5 / Honda 45003-TL1-G01 / 11x2 USD

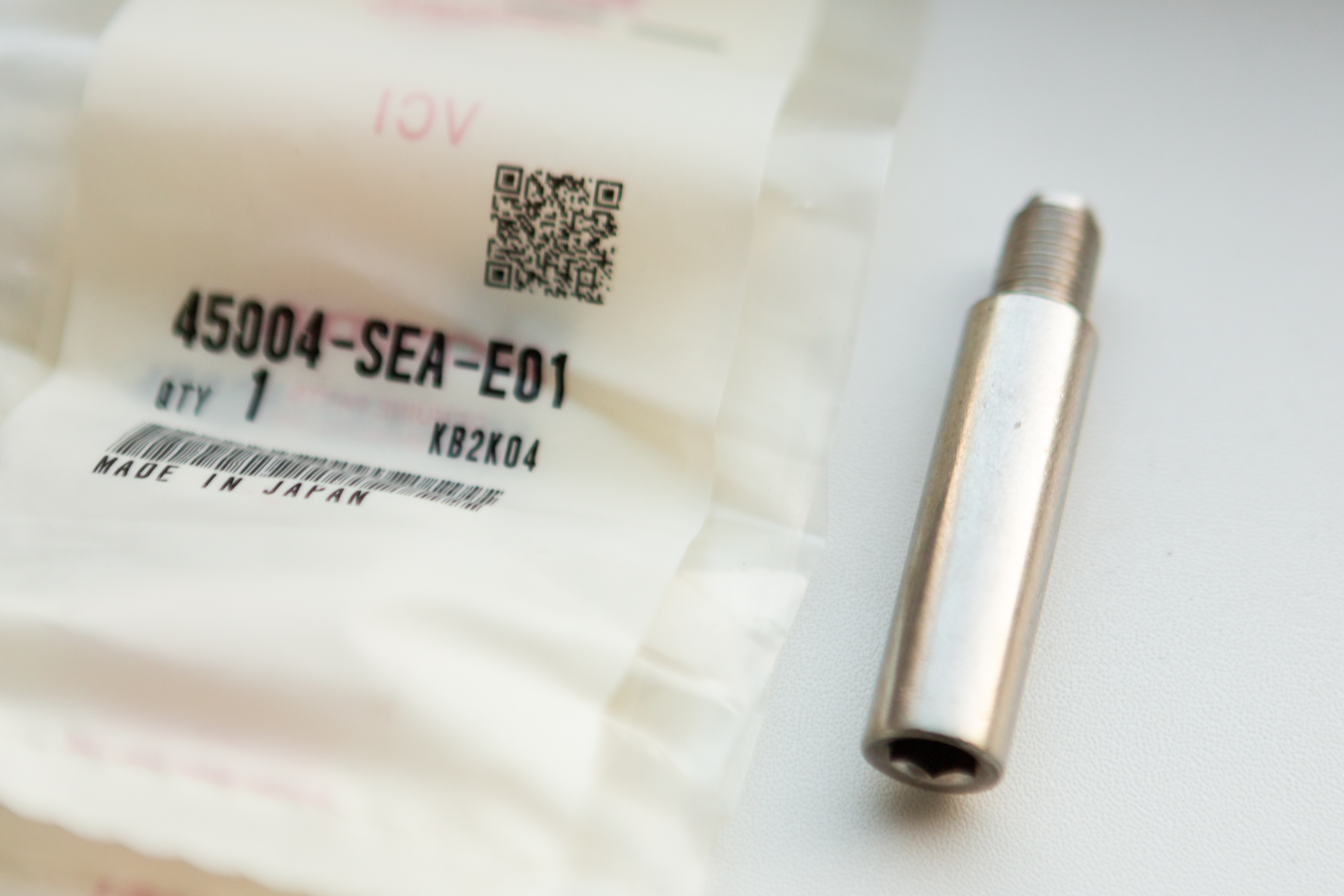

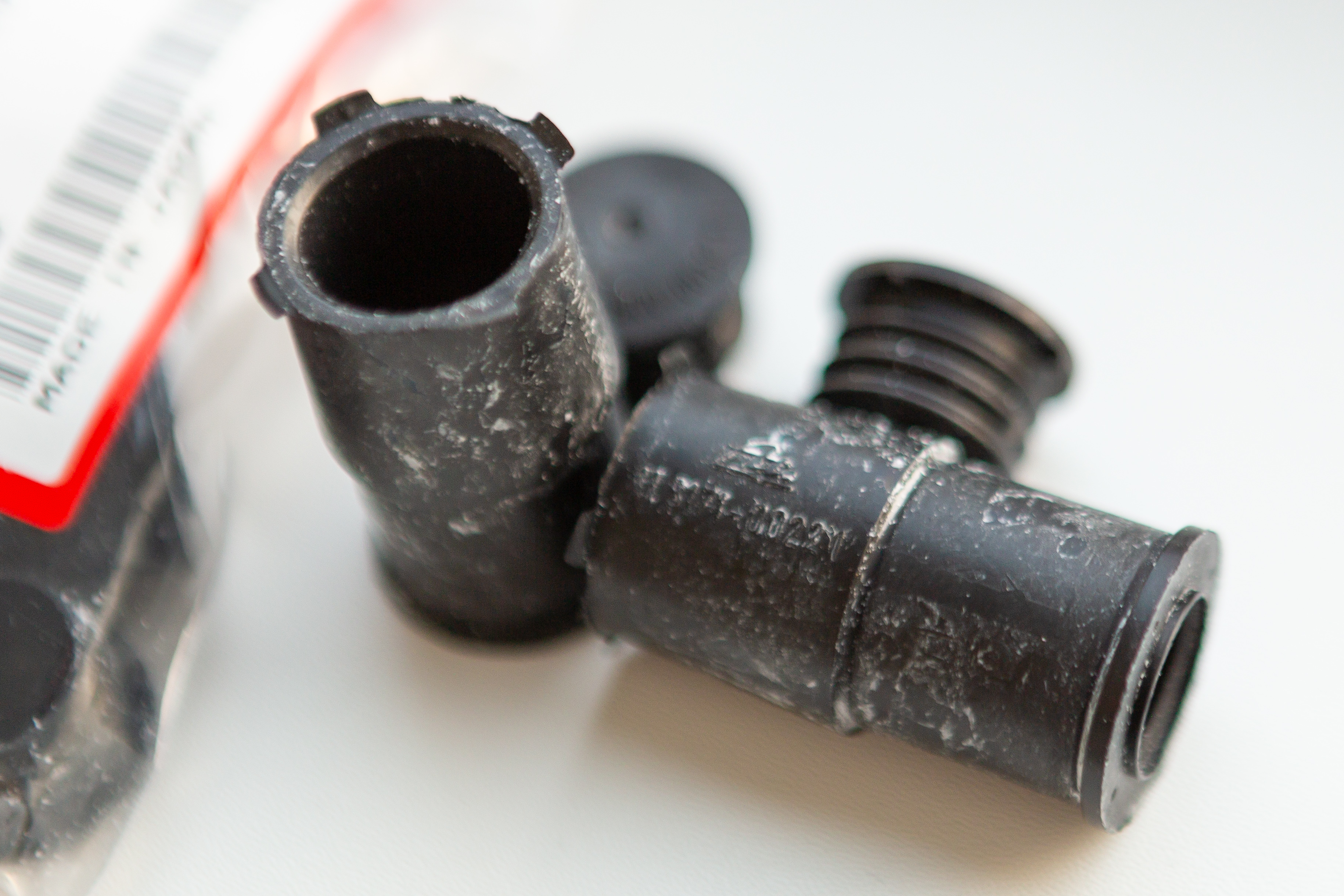

  • Front caliper bushings #6 / Honda 45004-SEA-E01 / 20x4 USD

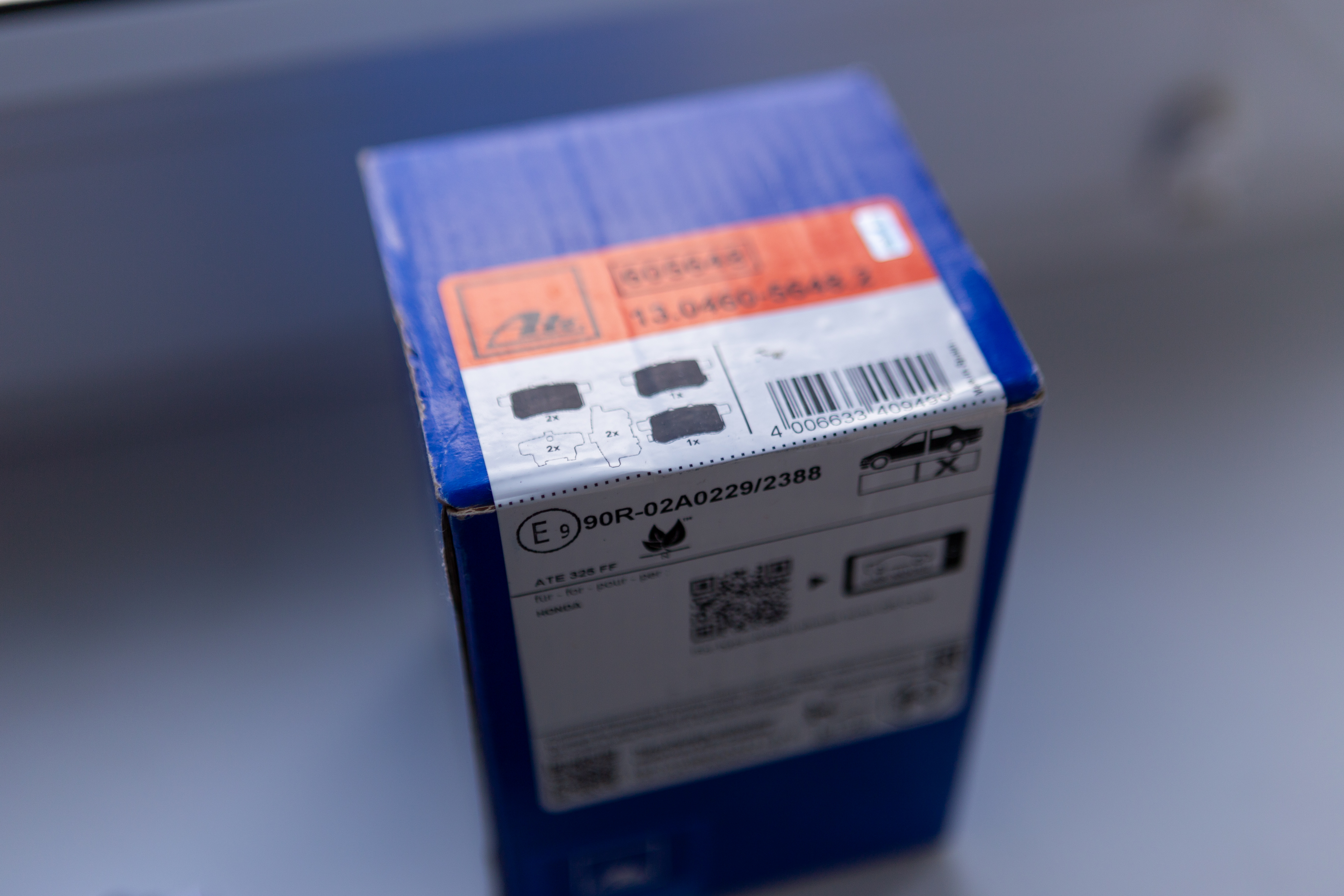

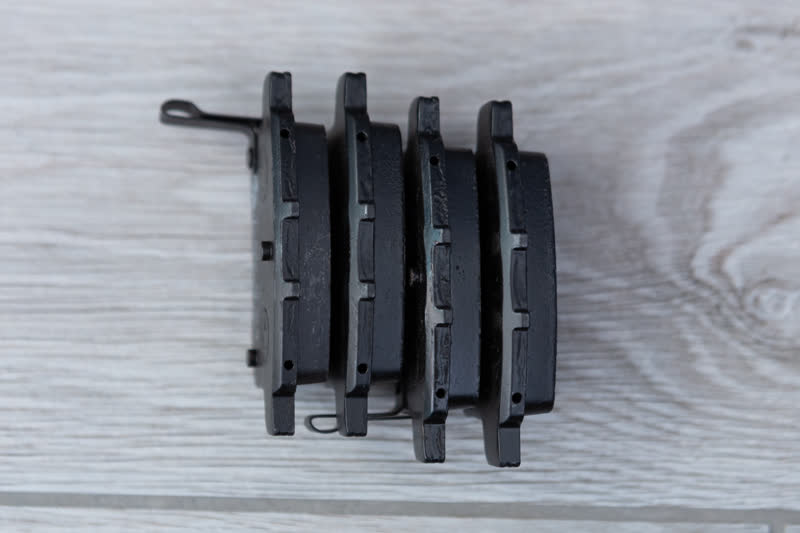

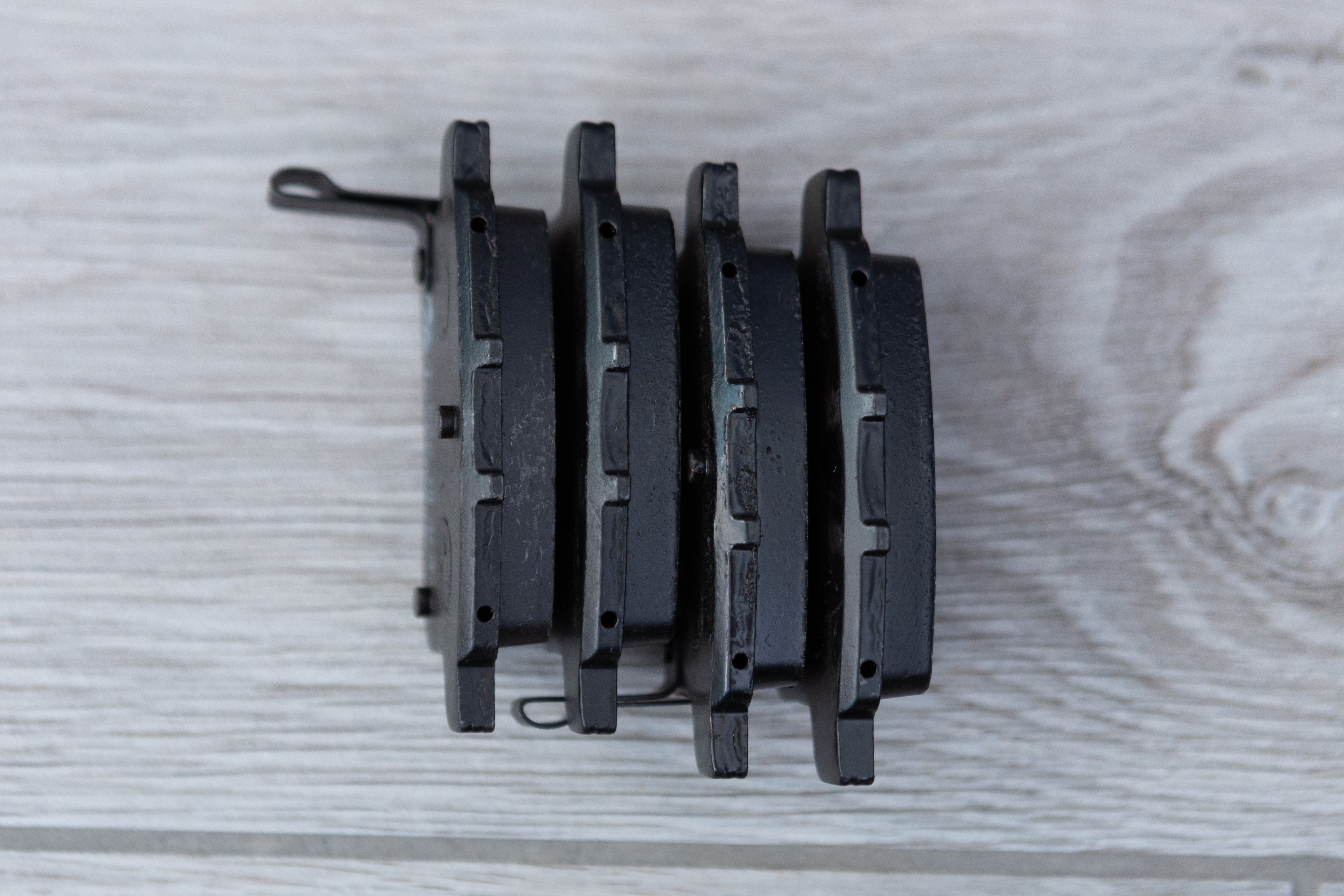

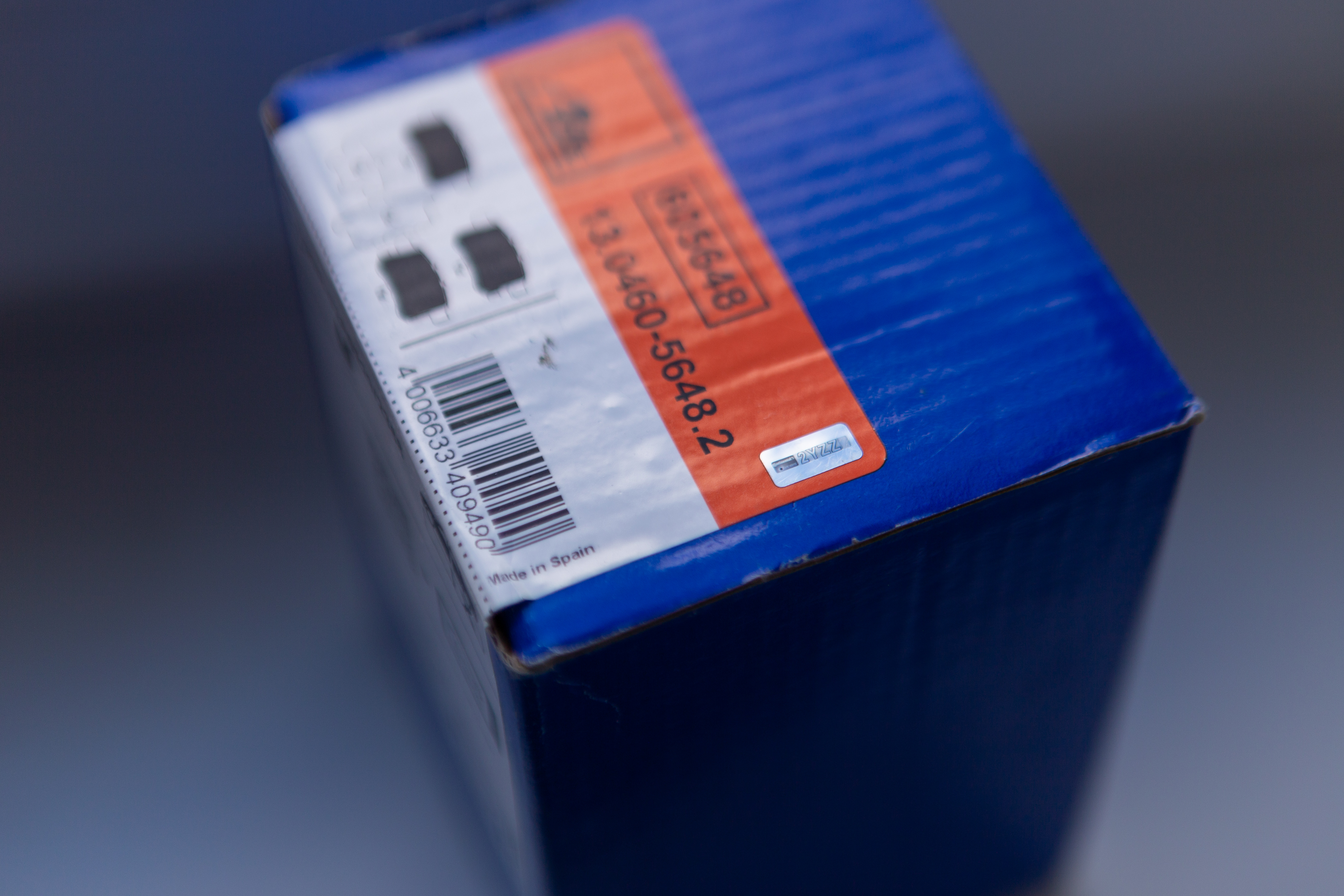

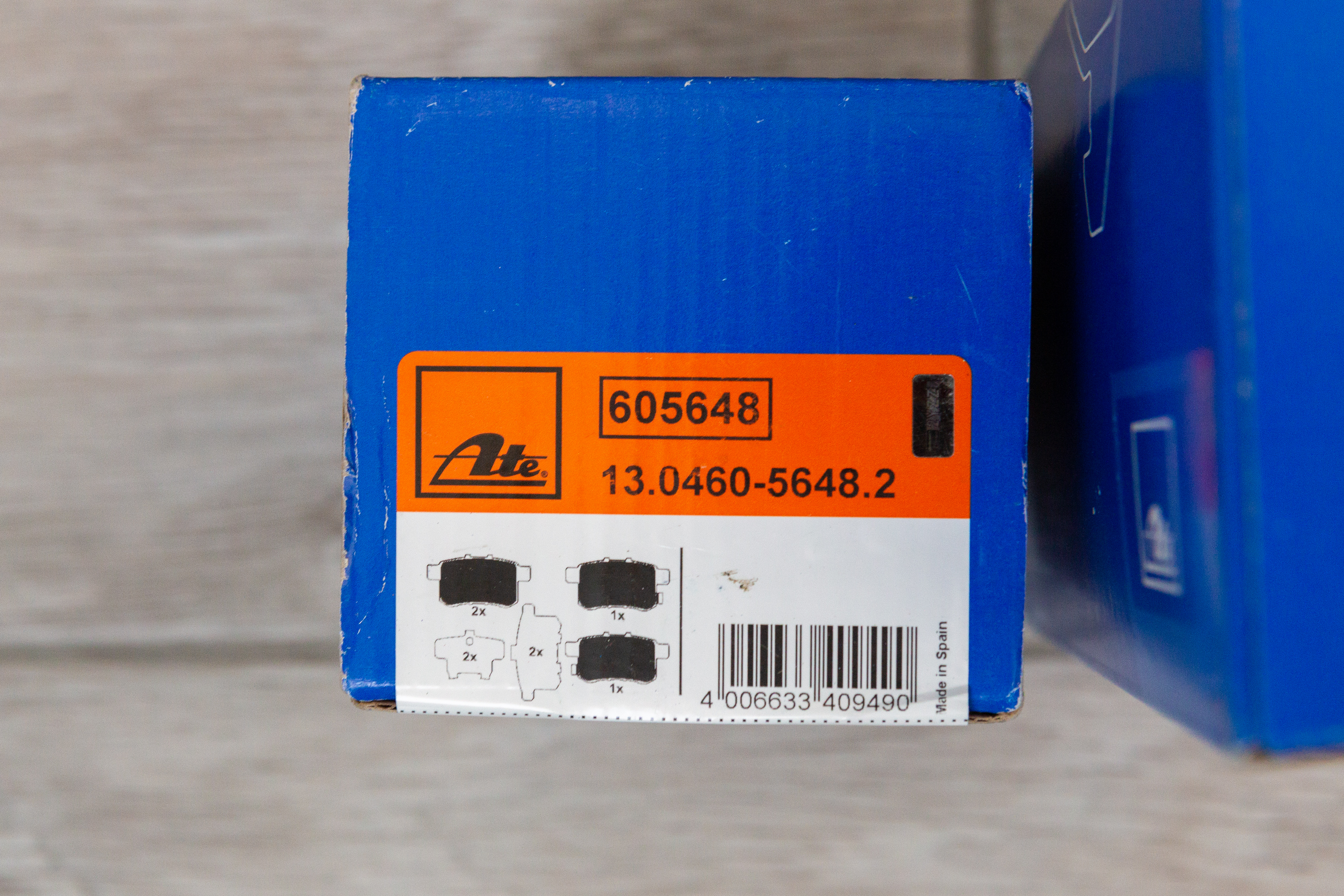

  • Rear brake pads #7 / ATE 13.0460-5648.2 / 36 USD

  • Rear caliper repair kit #1 / Honda 01473-TA0-A51 / 38x2 USD

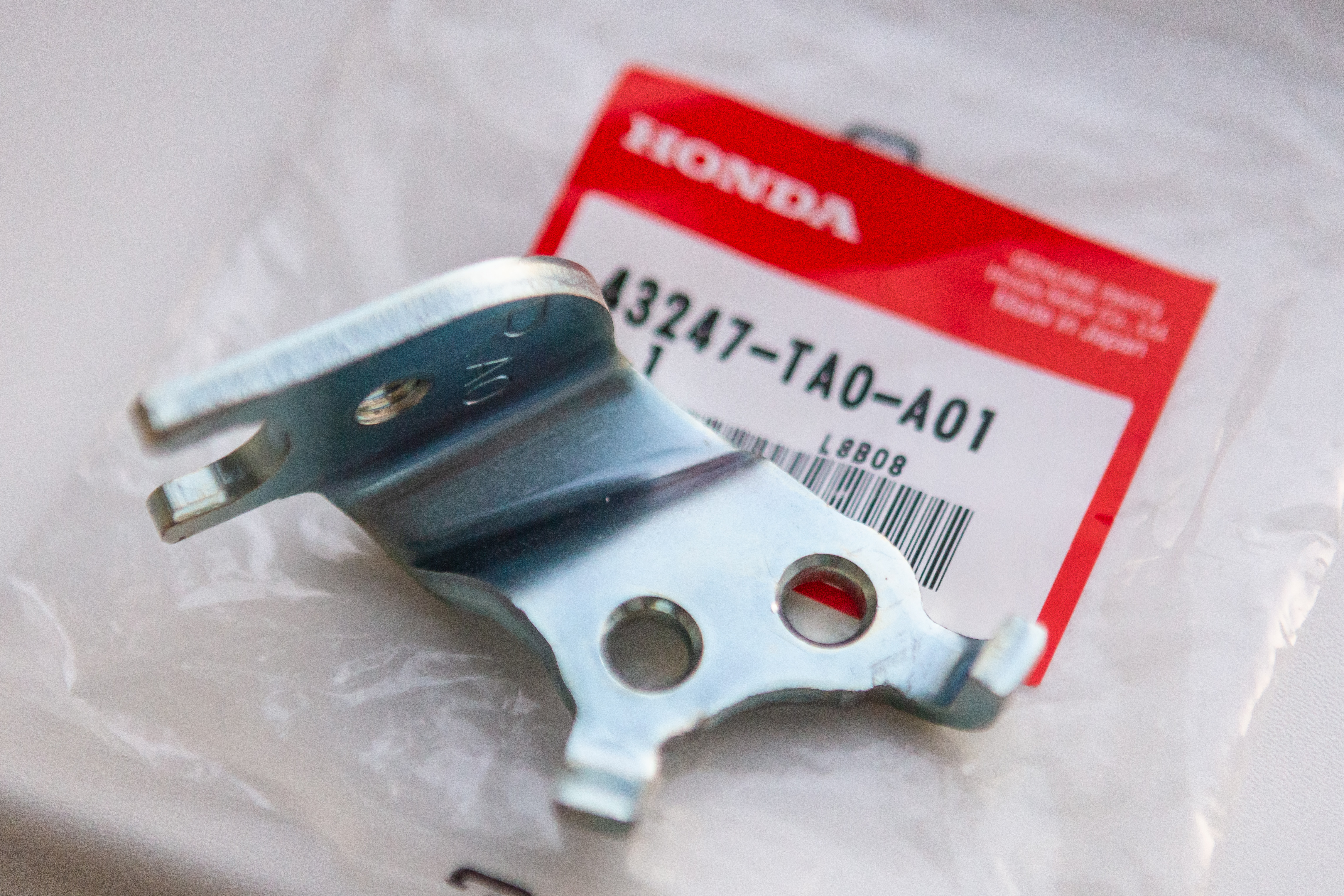

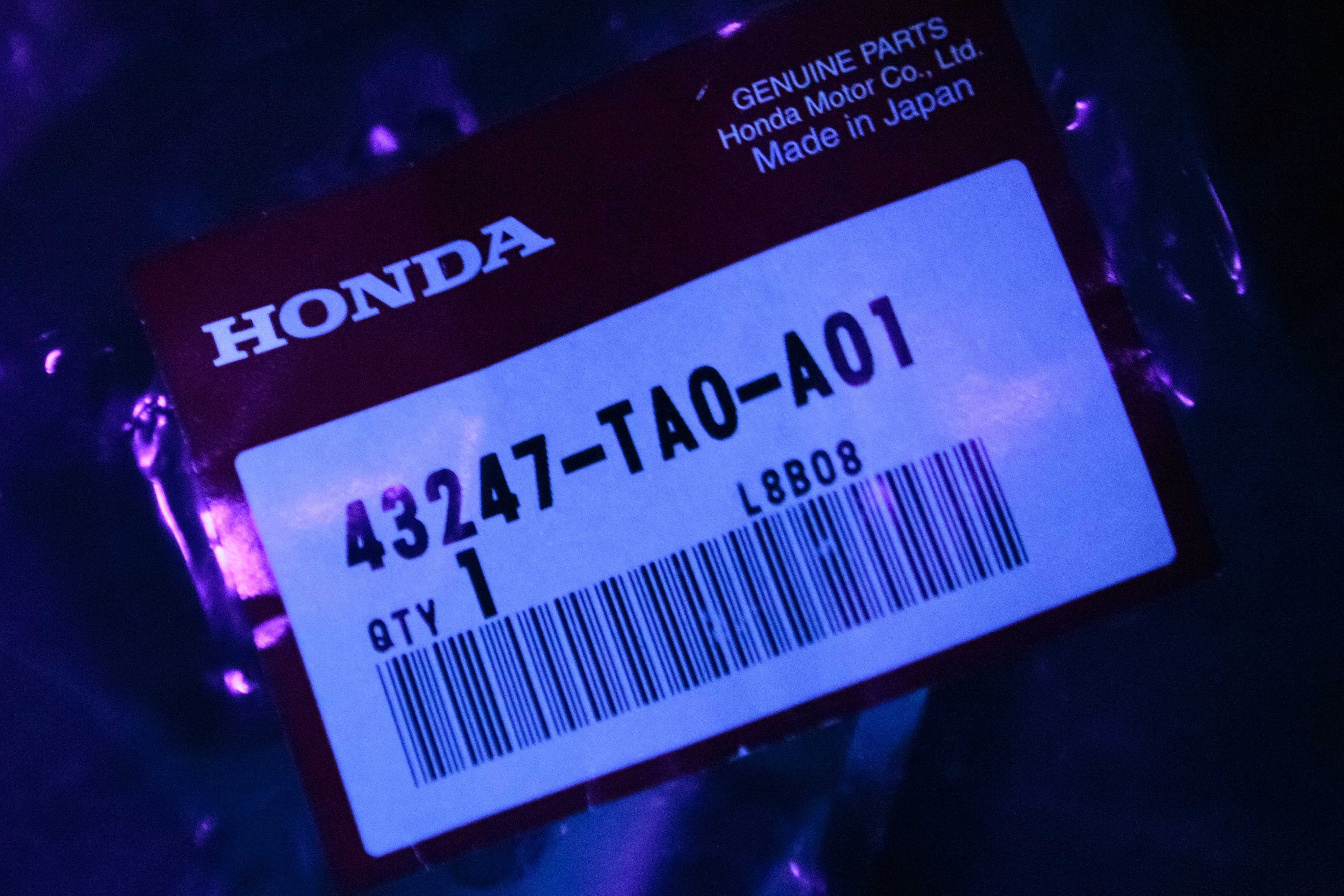

  • Lever #11 / Honda 43247-TA0-A01 / 9 USD

  • Lever #14 / Honda 43267-TA0-A01 / 9 USD

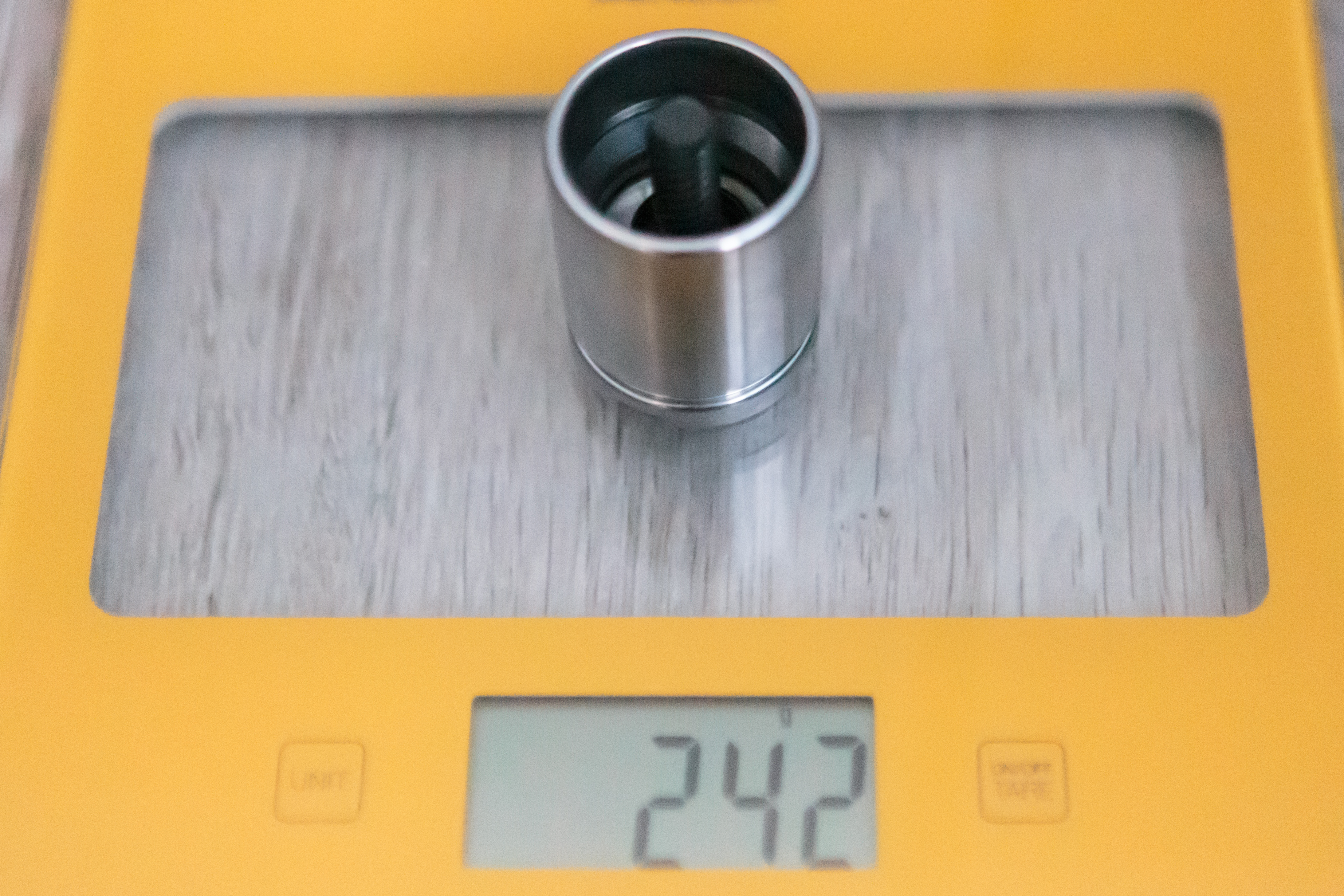

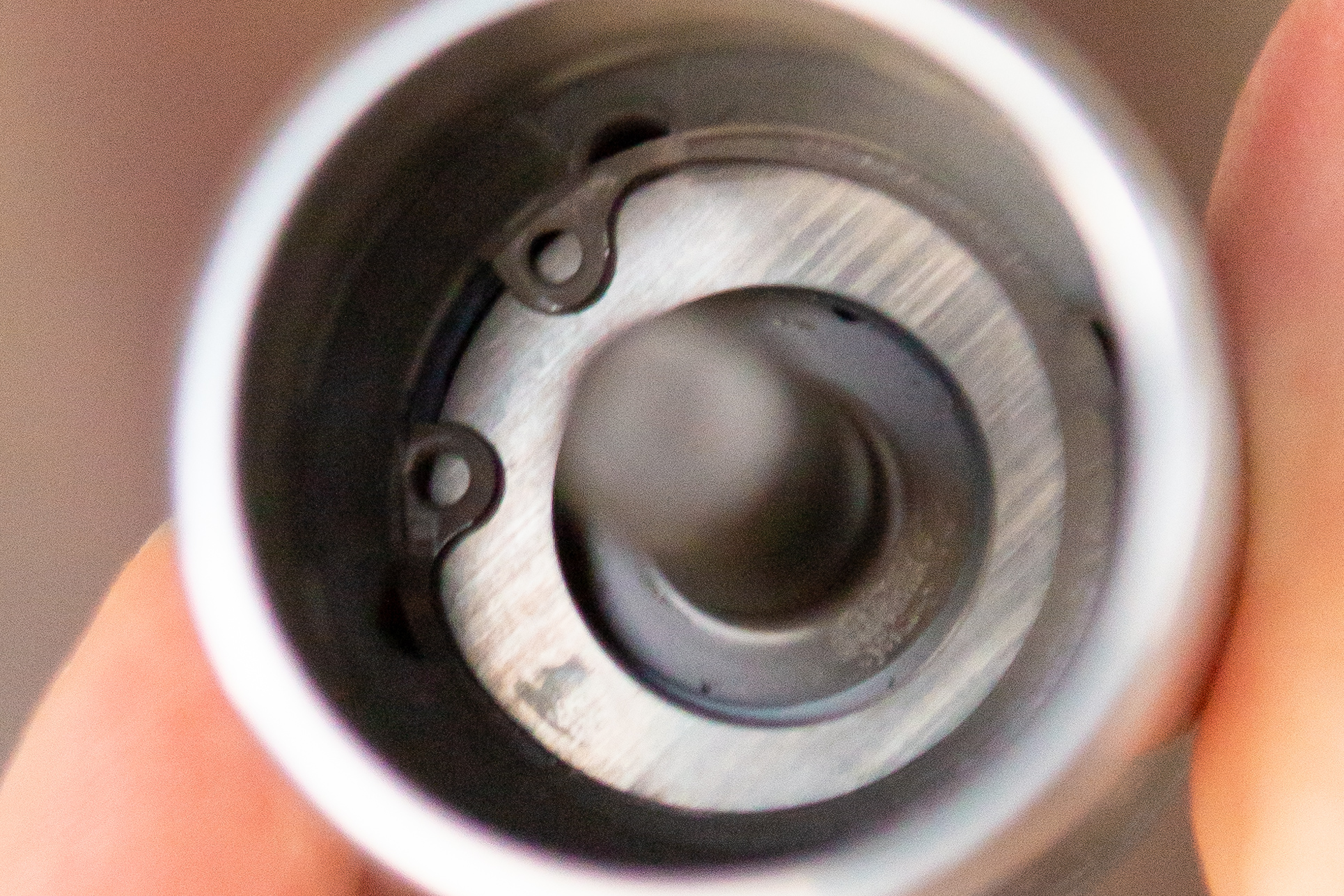

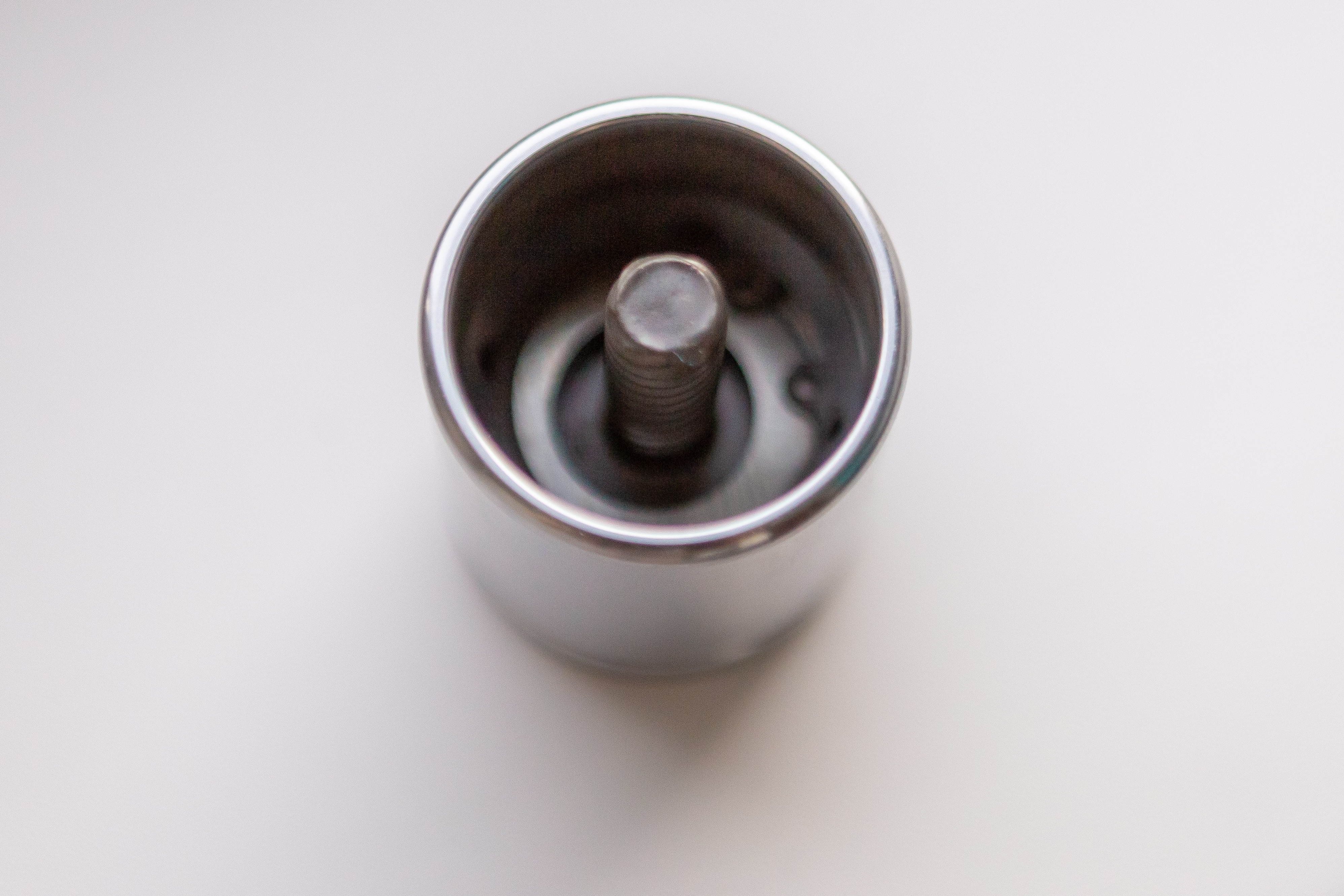

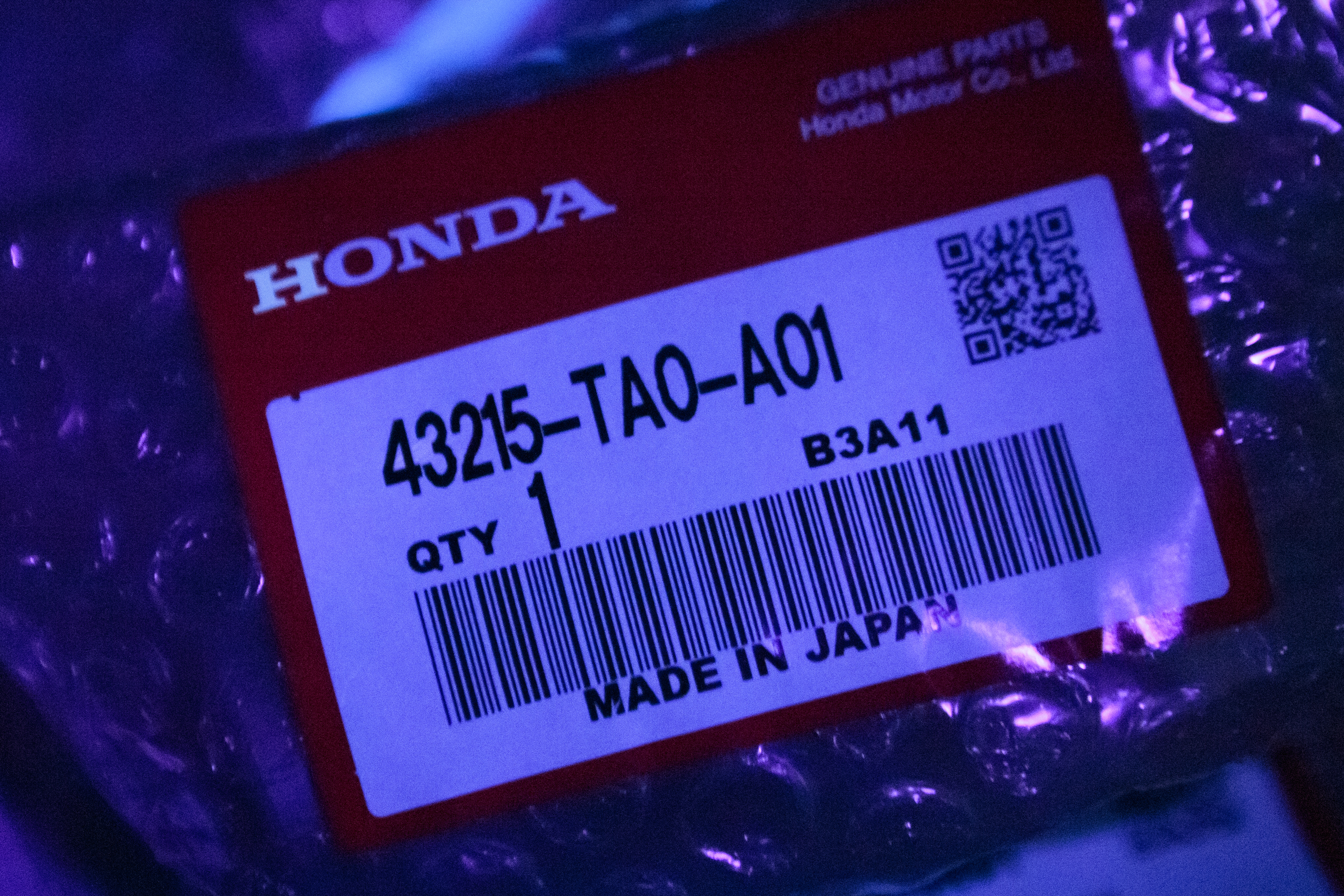

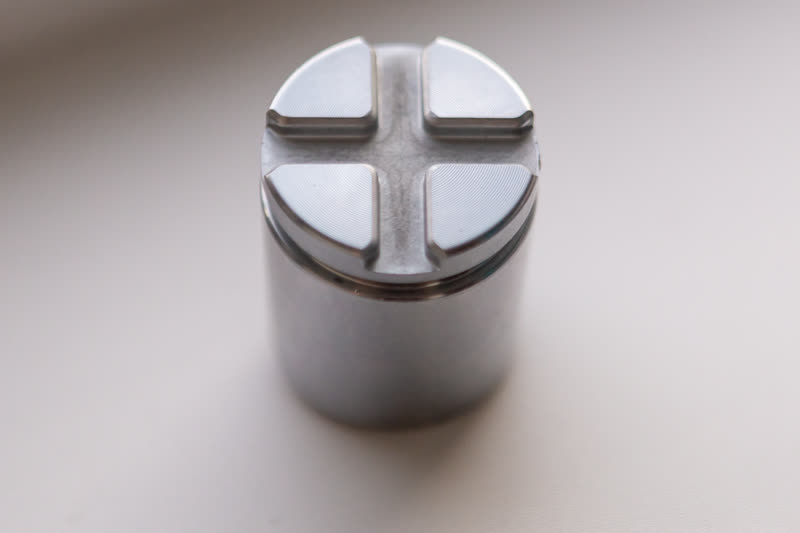

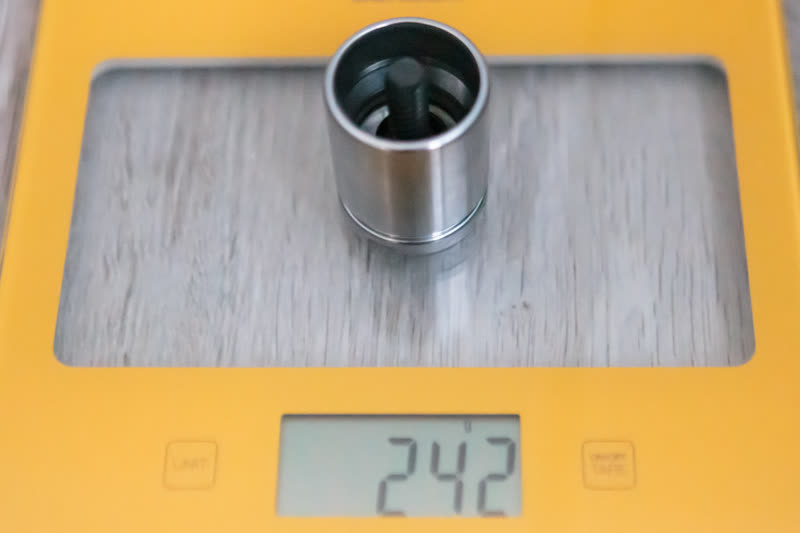

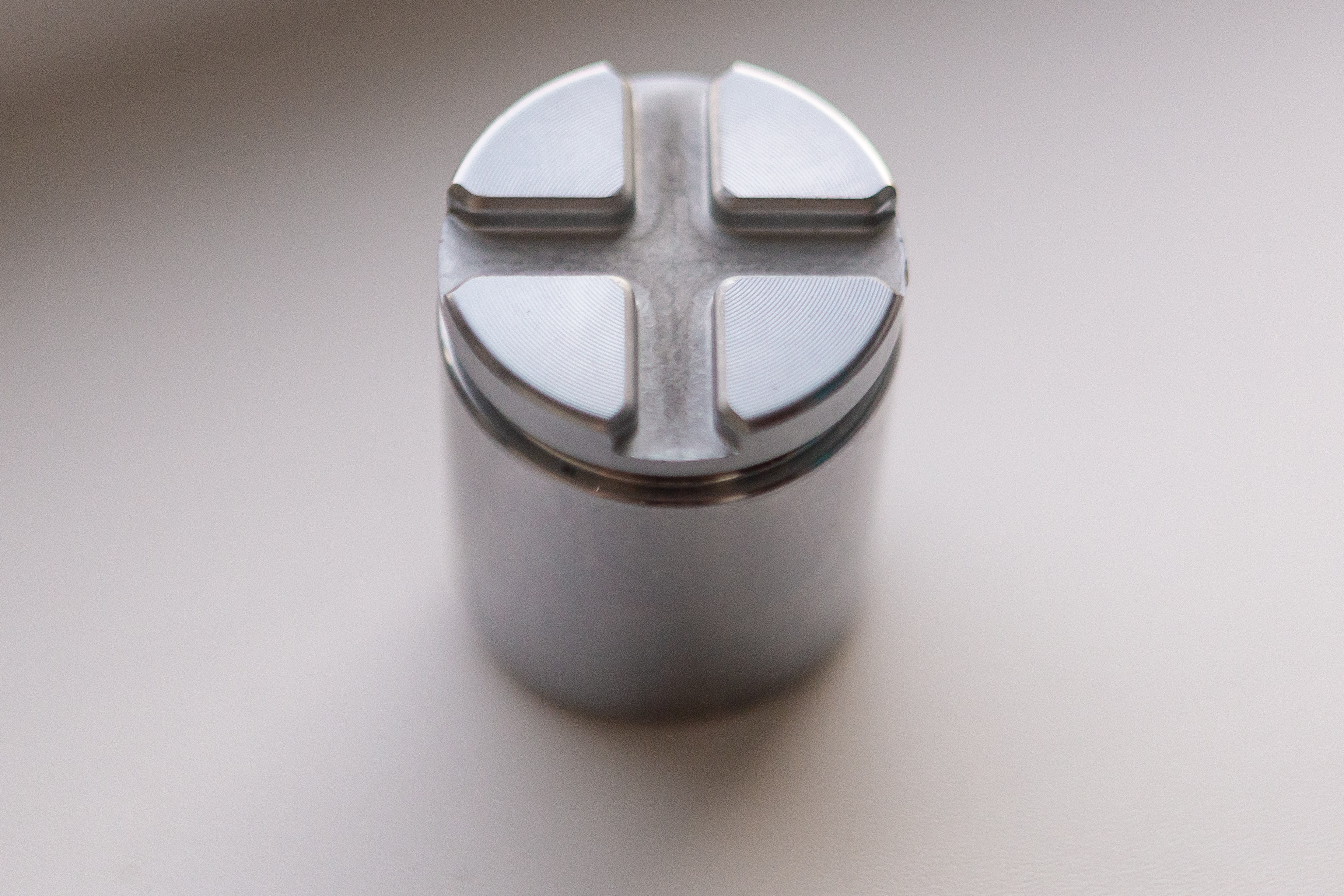

  • Rear caliper piston #8 / Honda 43215-TA0-A01 / 26x2 USD

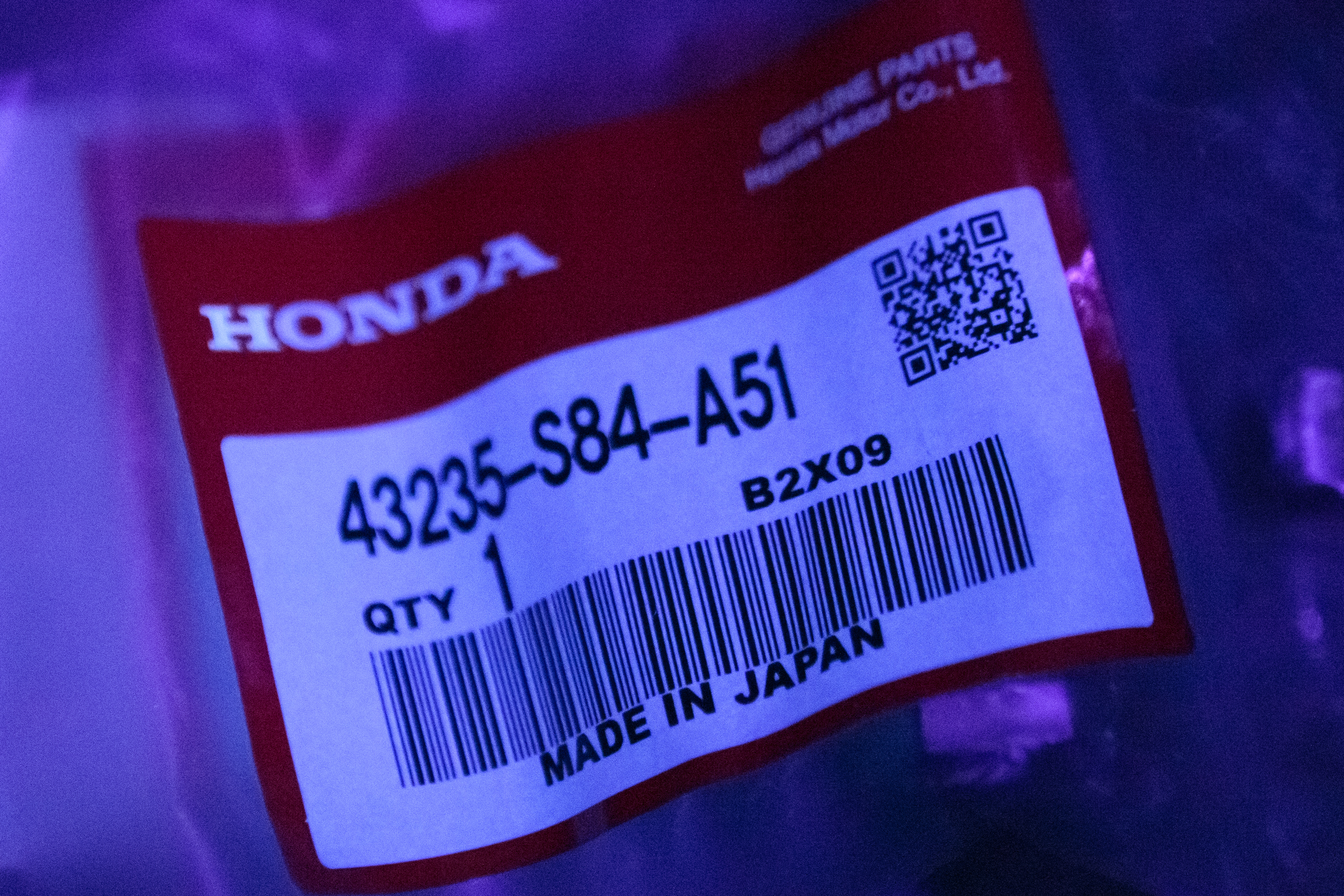

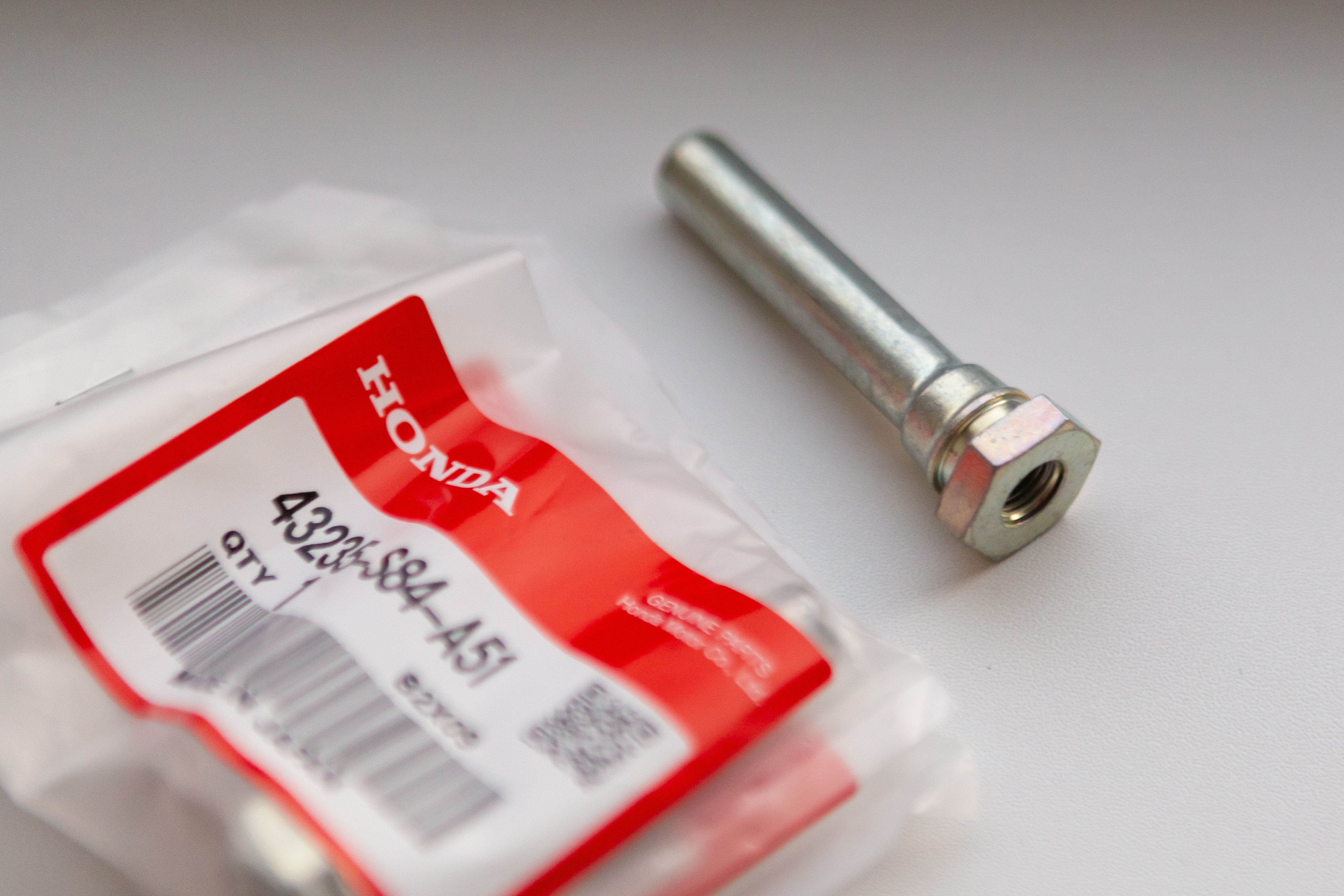

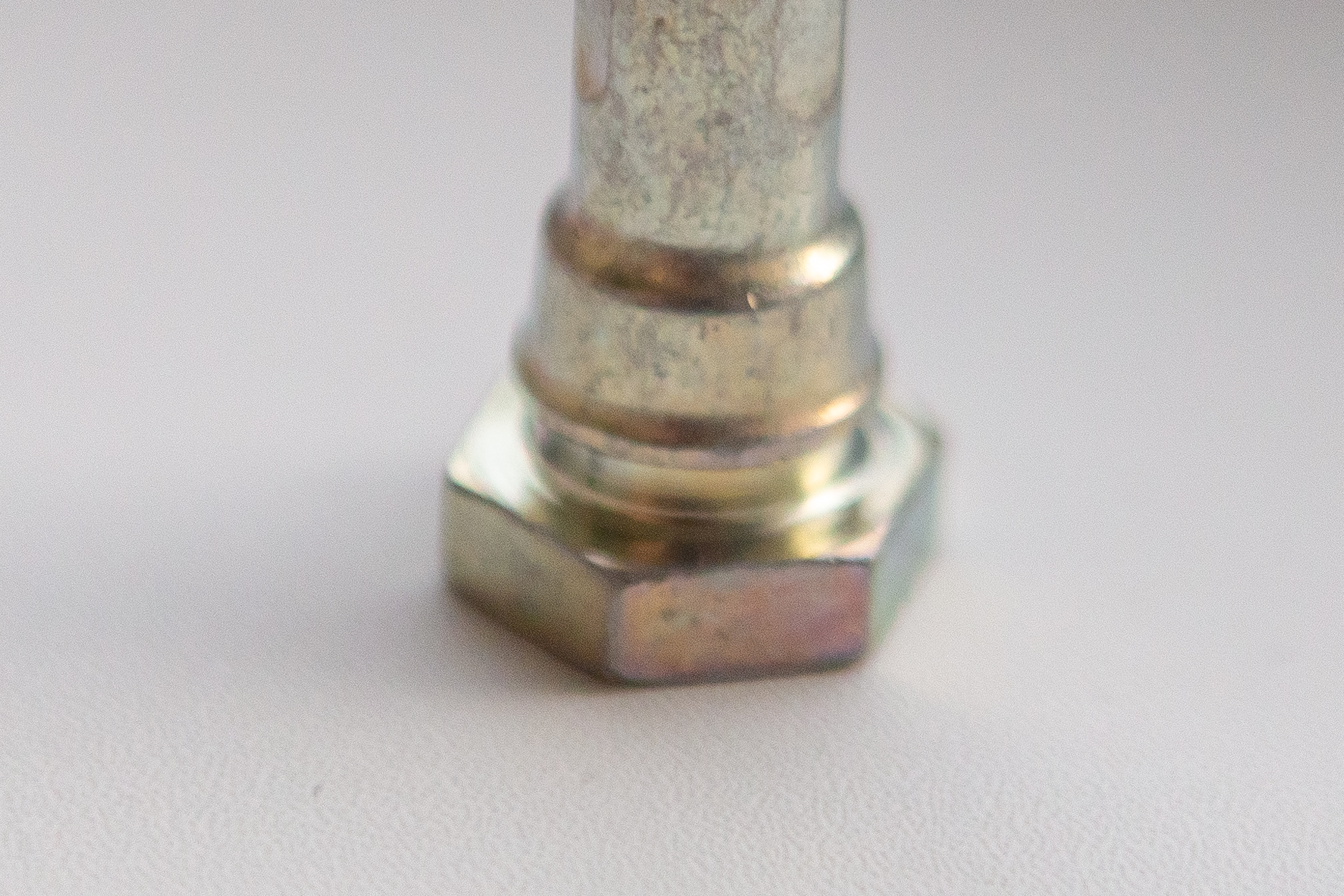

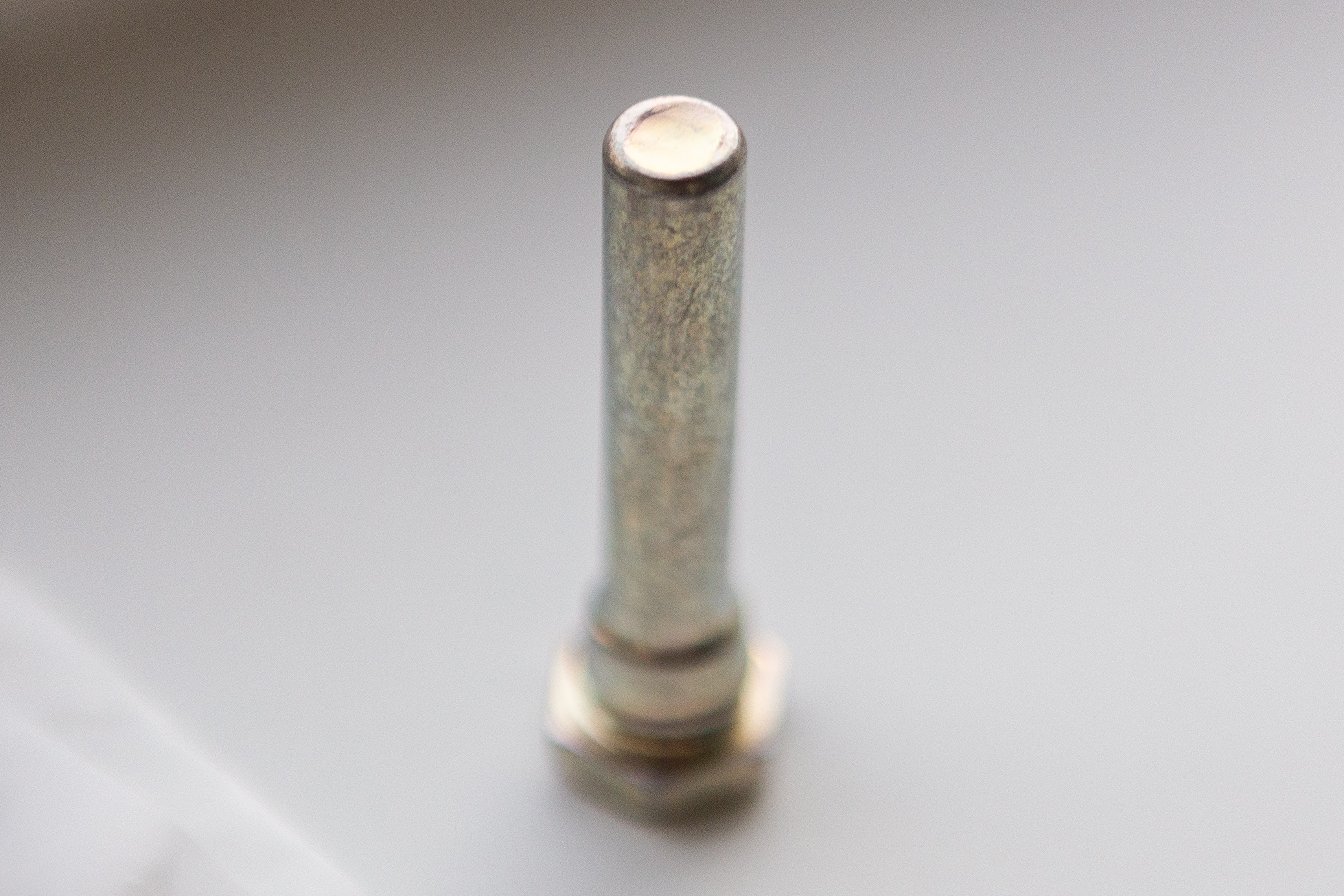

  • Rear caliper guide pin A #9 / Honda 43235-S84-A51 / 6x2 USD

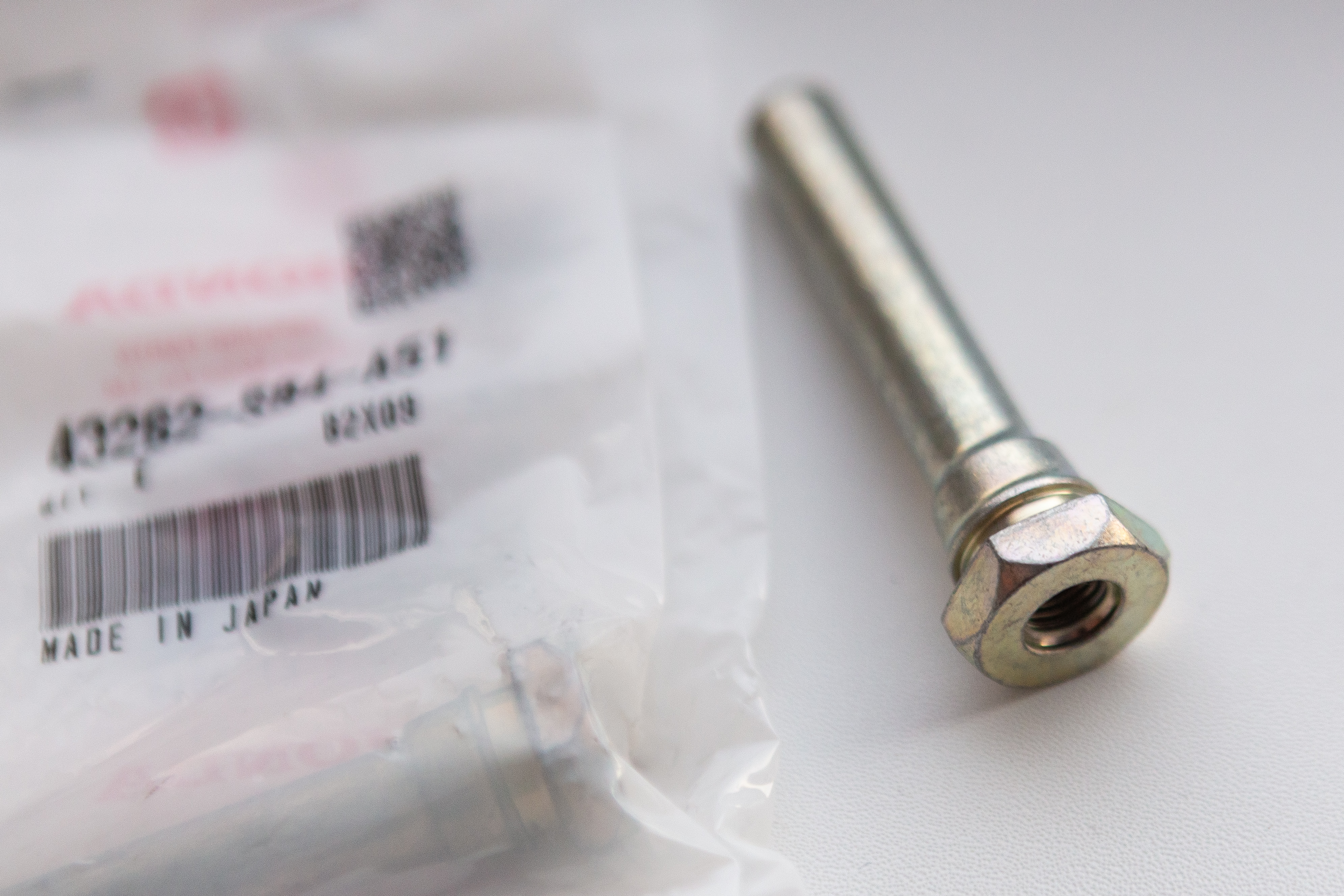

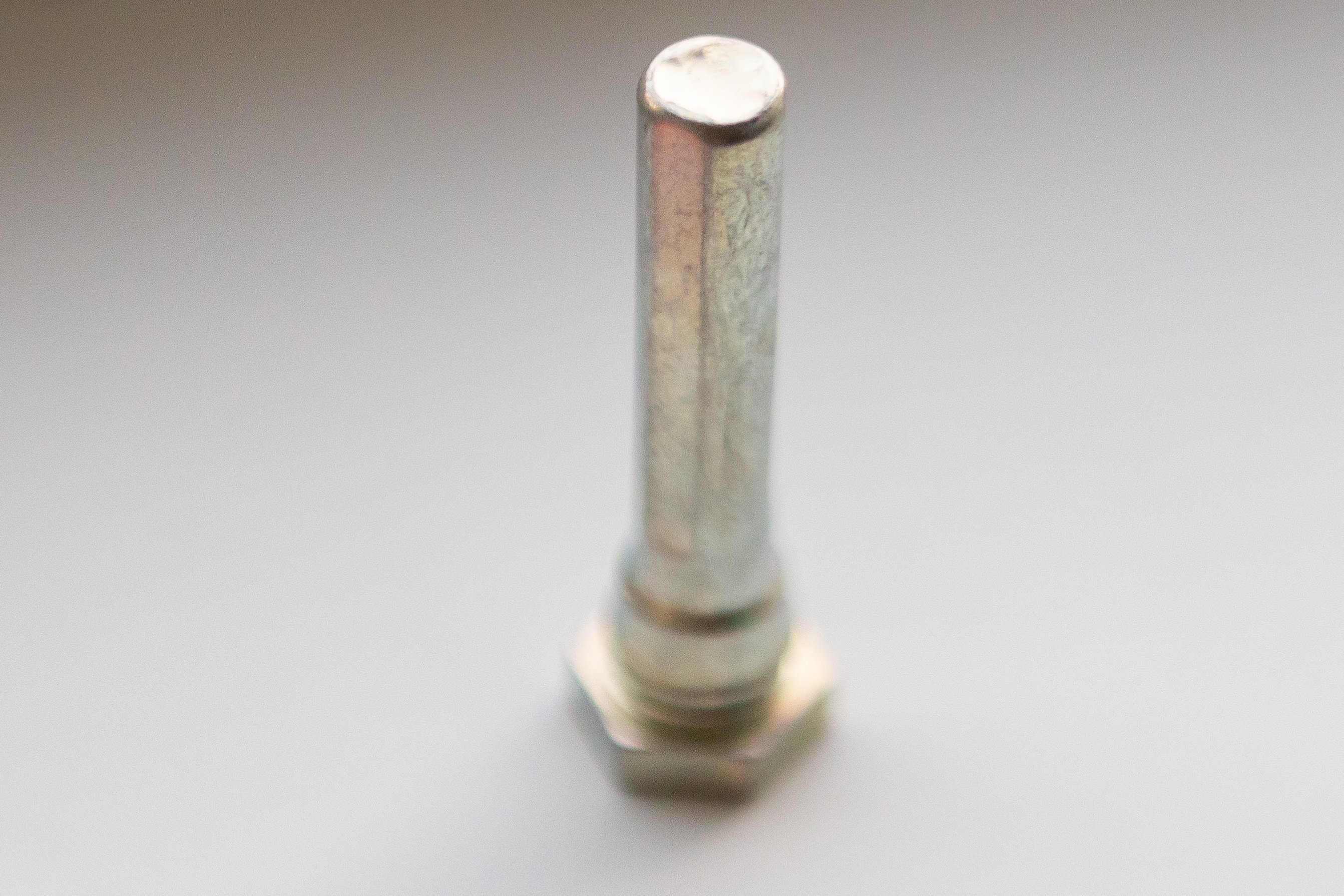

  • Rear caliper guide pin B #13 / Honda 43262-S84-A51 / 6x2 USD

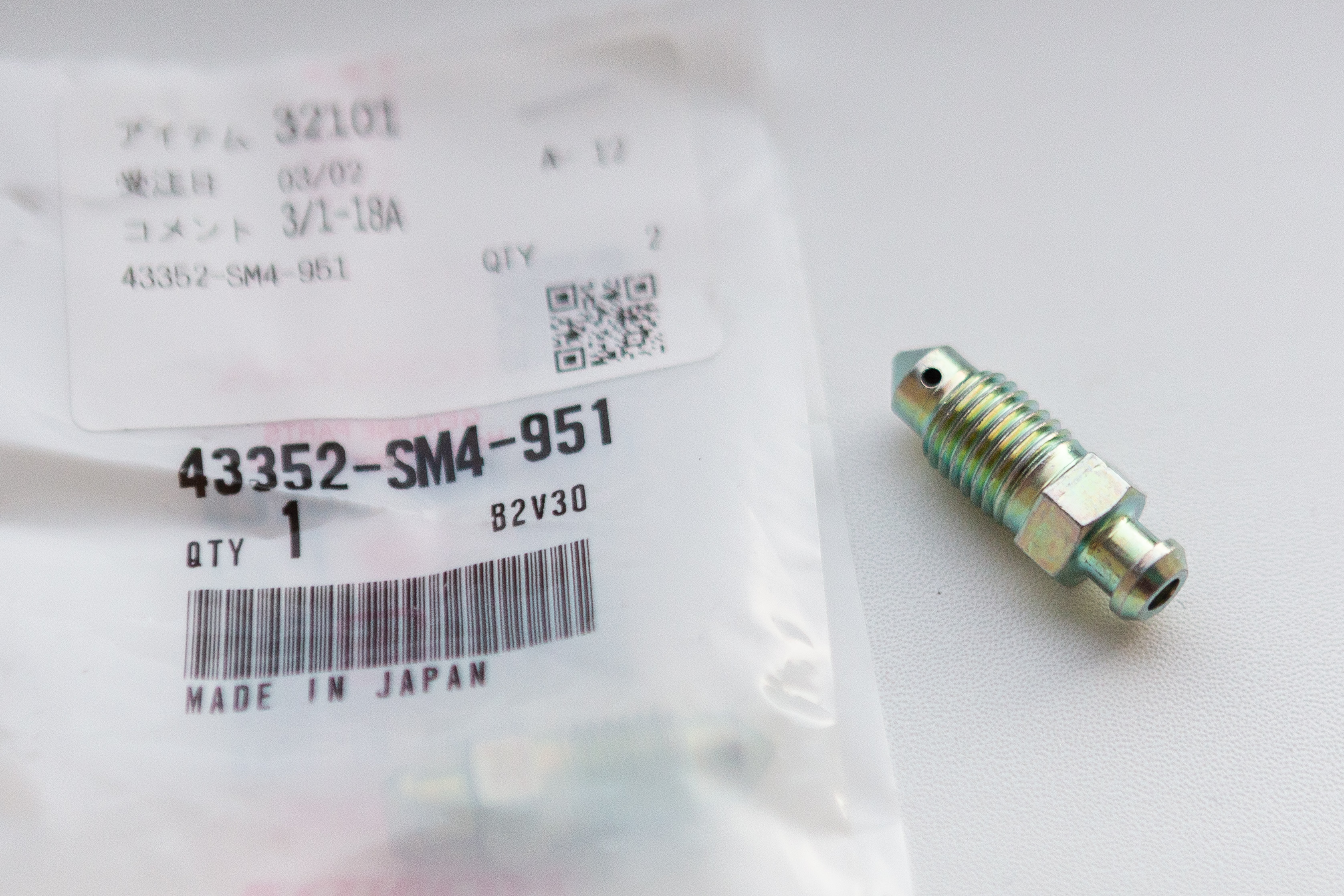

  • Rear caliper bleeder valve #15 / Honda 43352-SM4-951 / 3x2 USD

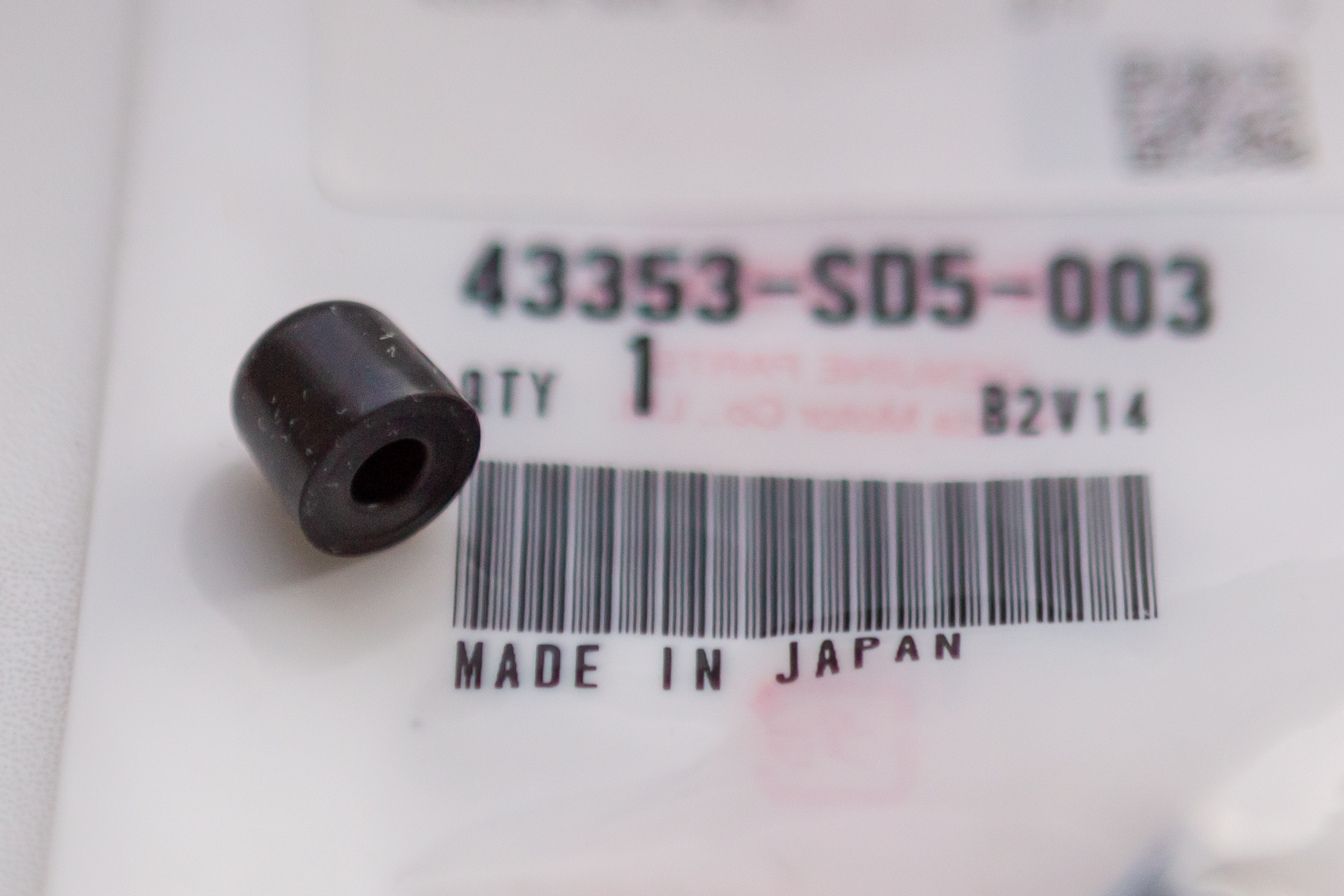

  • Bleeder valve cap #16 / Honda 43353-SD5-003 / 2x2 USD

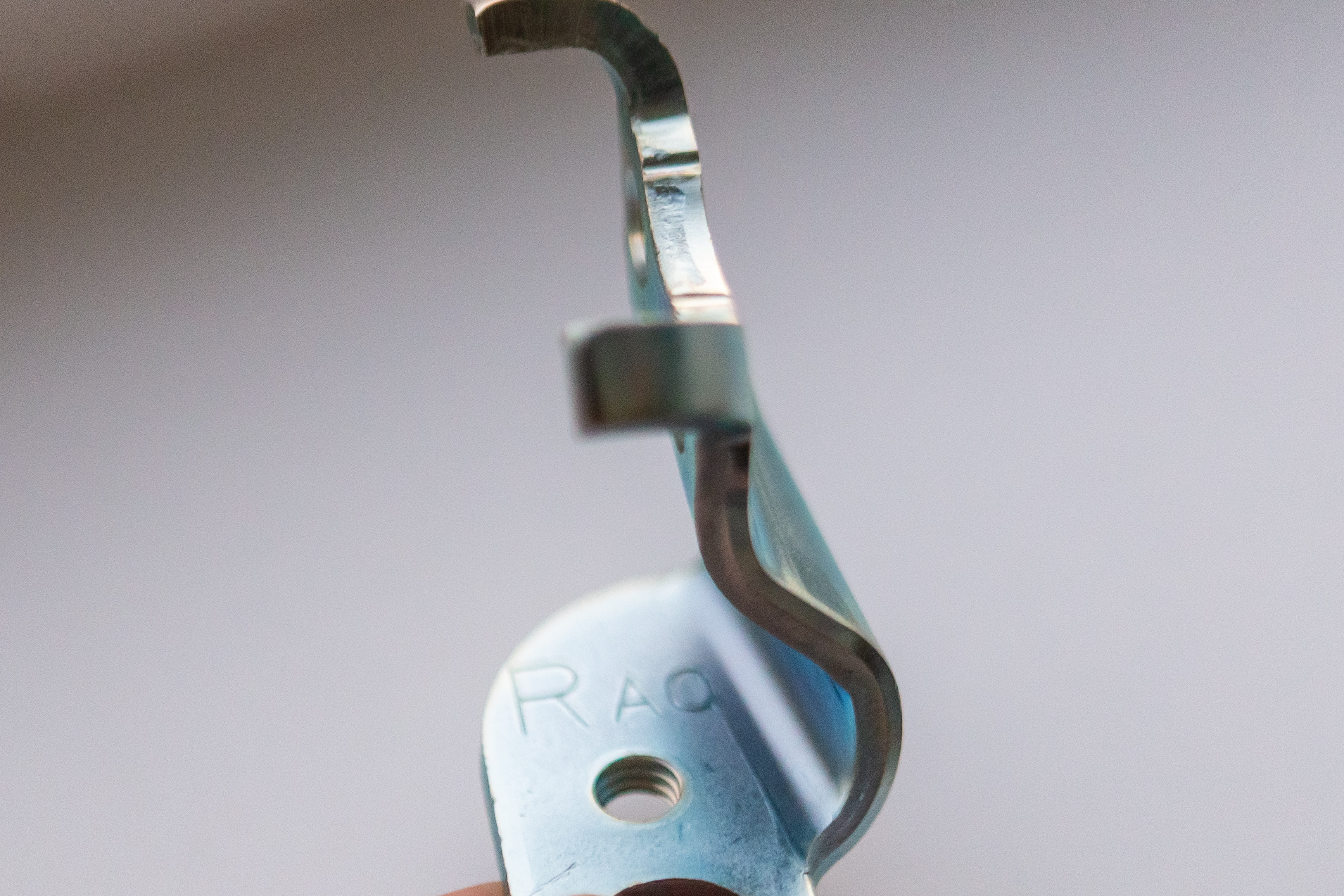

  • Rear caliper retainer #10 / Honda 43244-TA0-A02 / 4x4 USD

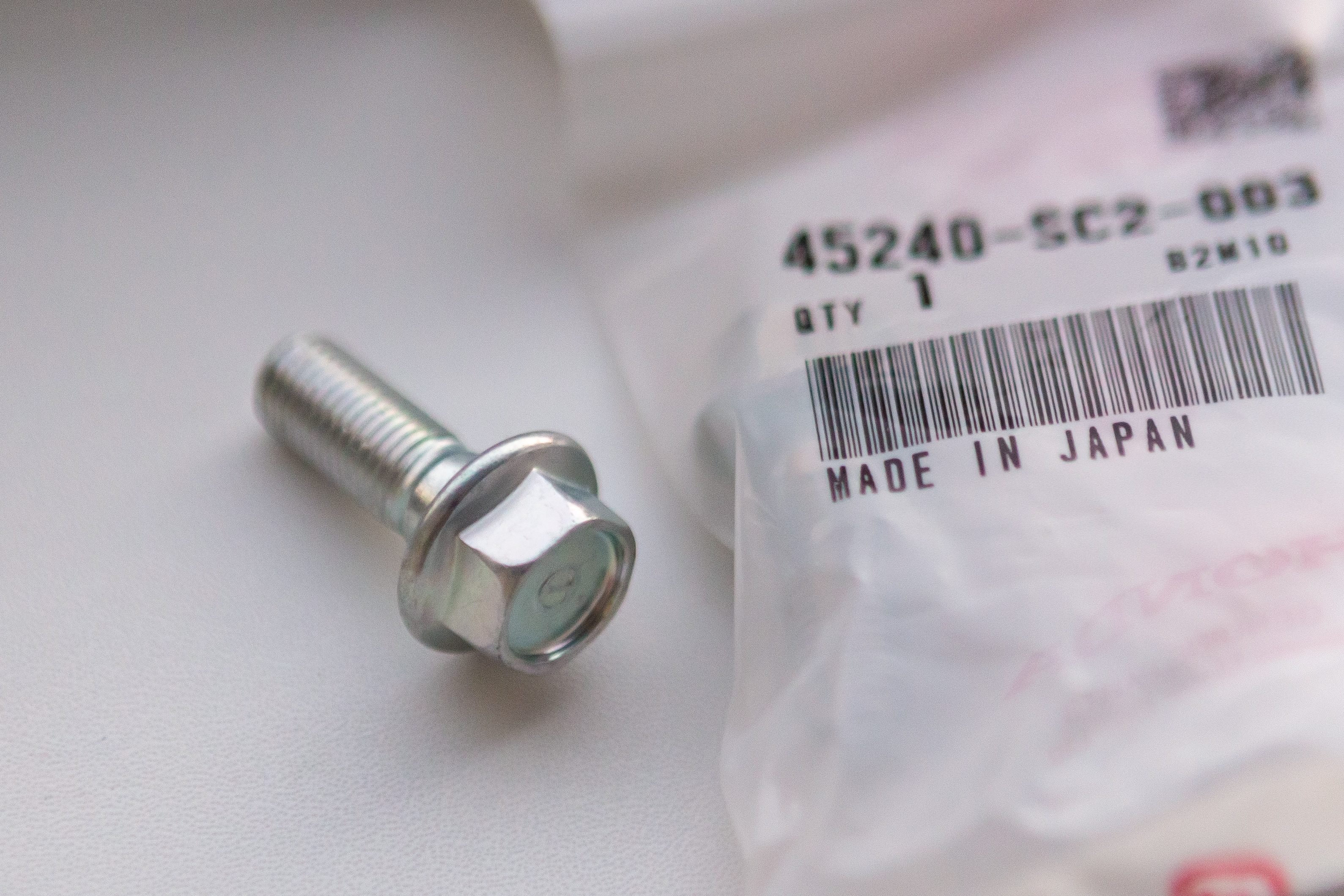

  • Bolt #17 / Honda 45240-SC2-003 / 2x6 USD

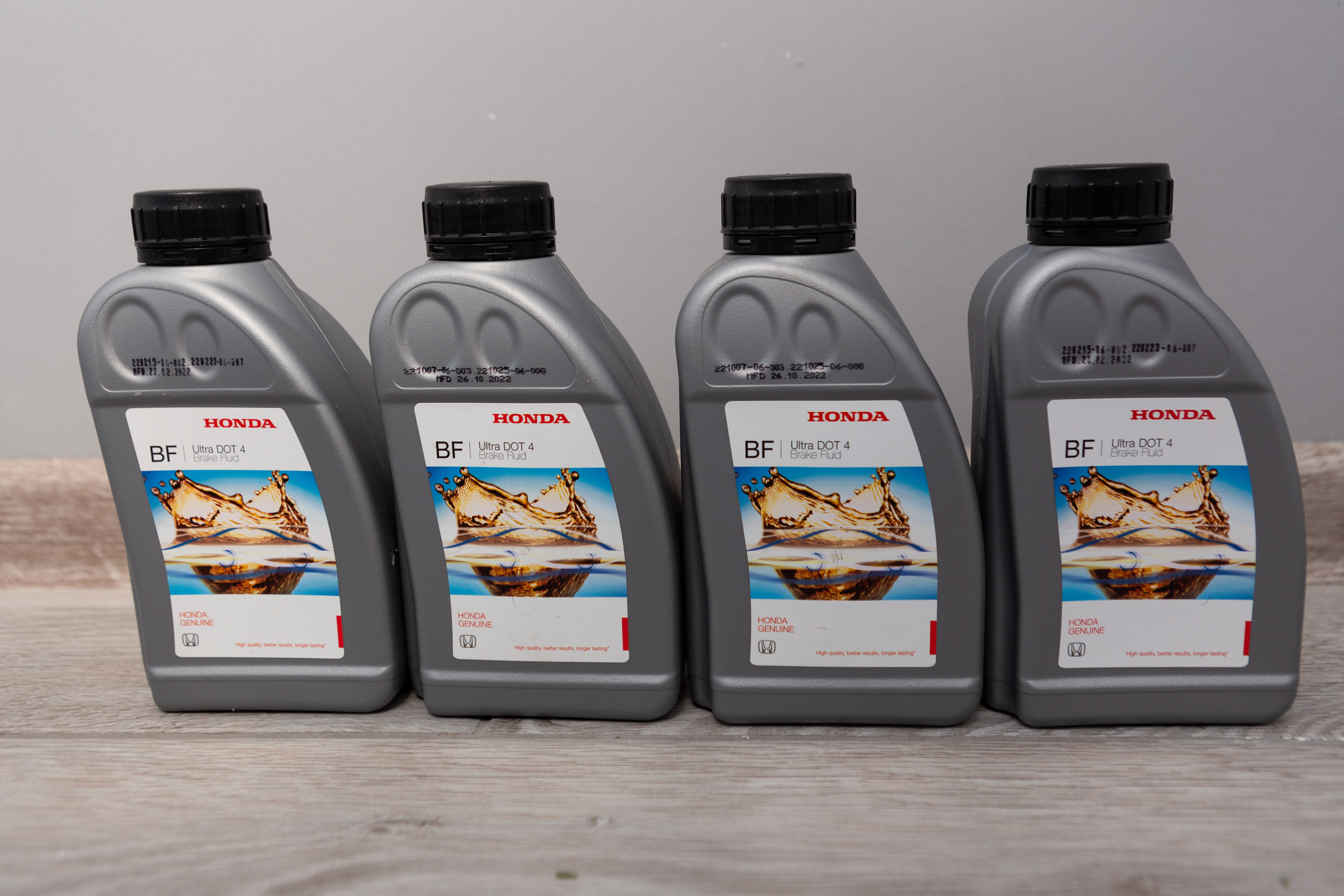

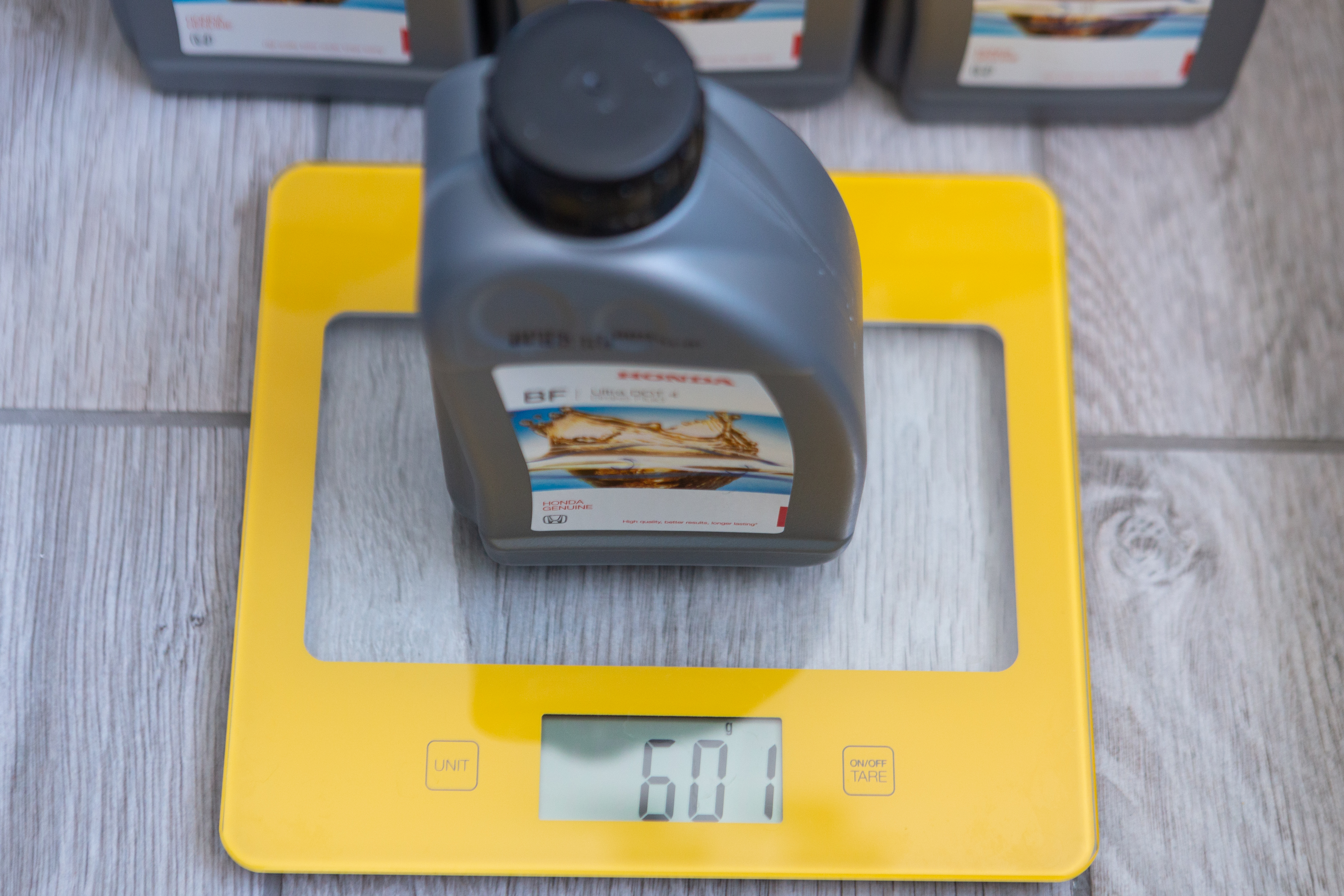

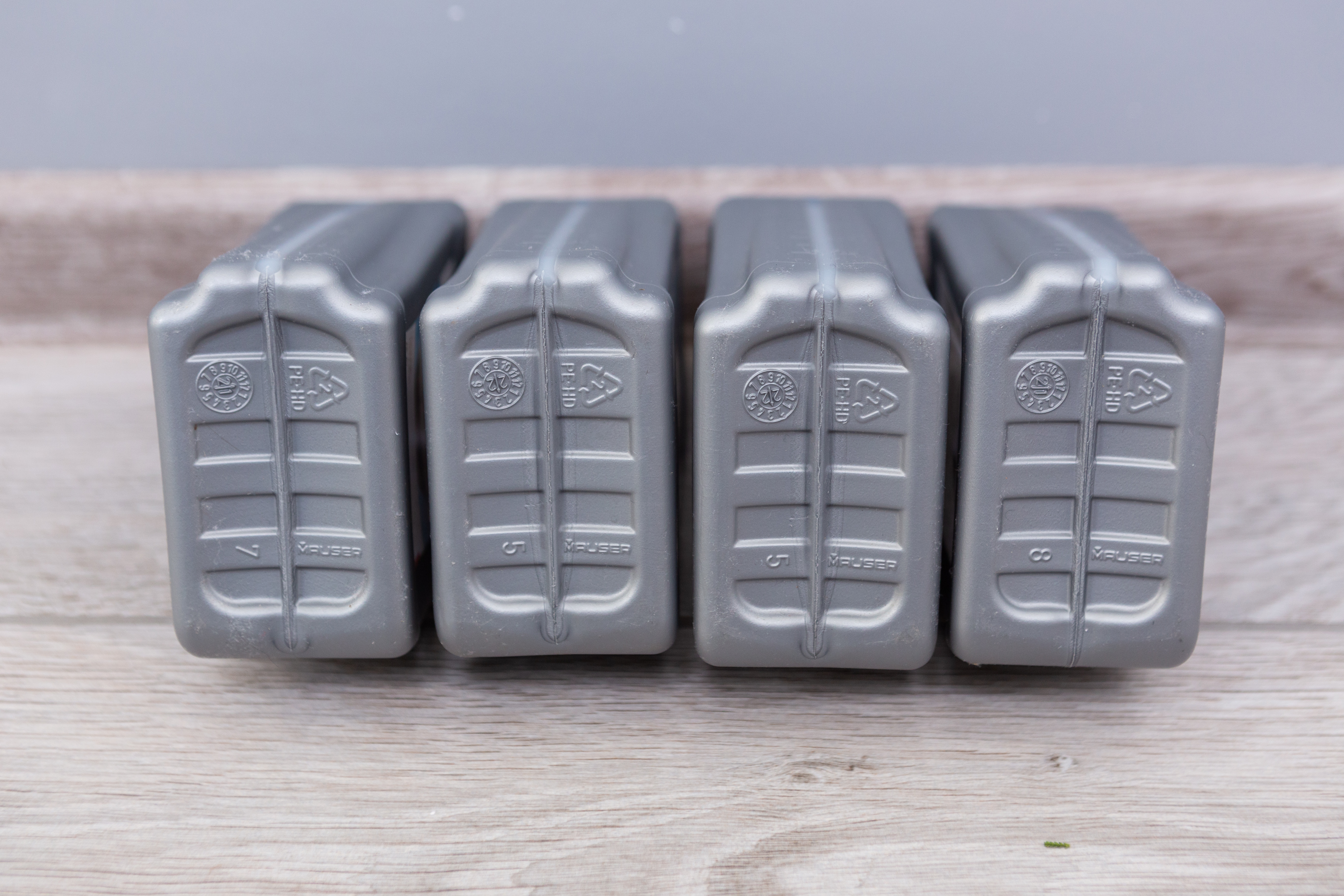

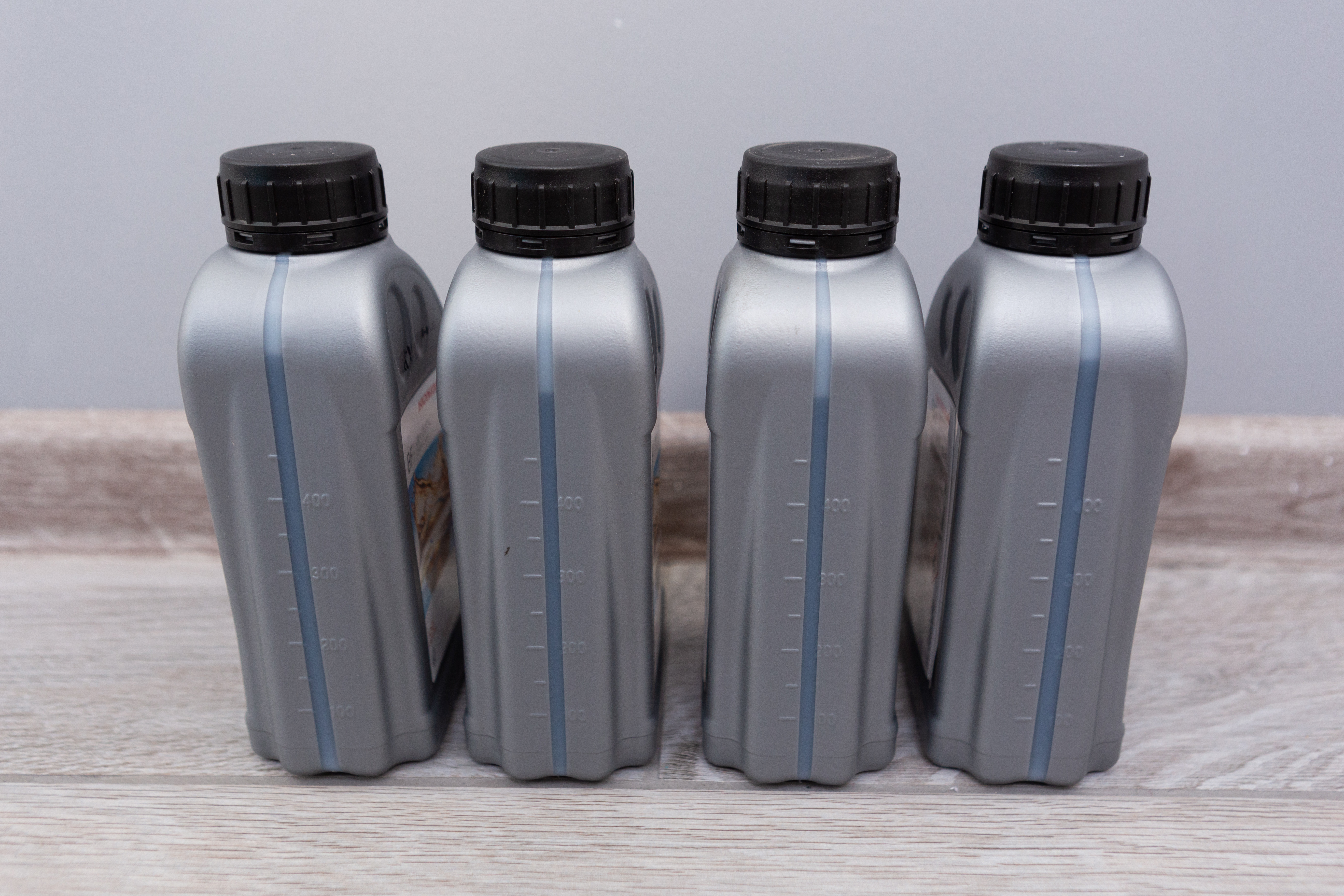

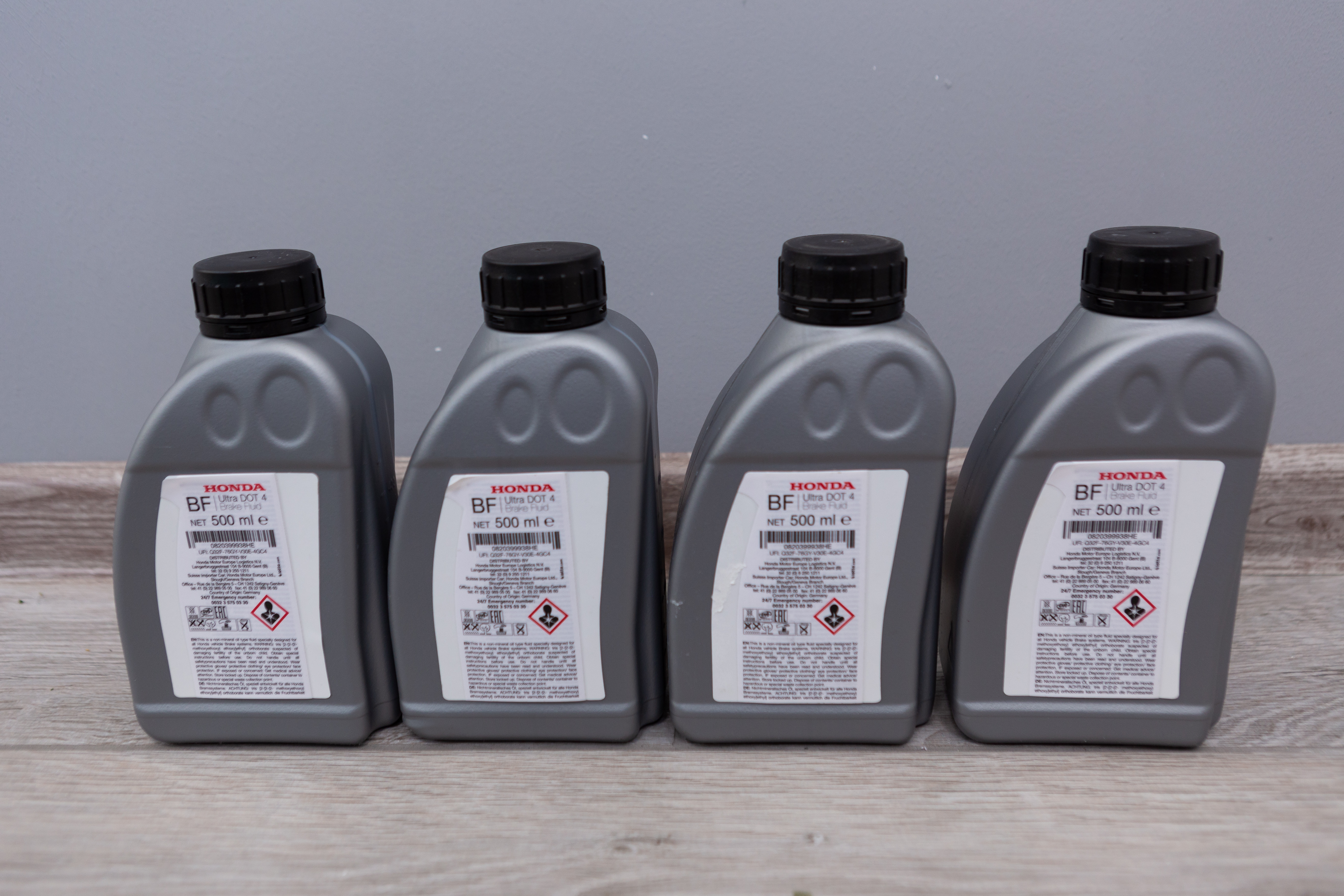

  • Brake fluid / Honda DOT4 (0820399938HE, 0.5 l) / 2 l / 63 USD


  • Total cost: 721 USD
  • Mileage: 243,788 km
