Fog Lamp Bulbs and Exhaust System

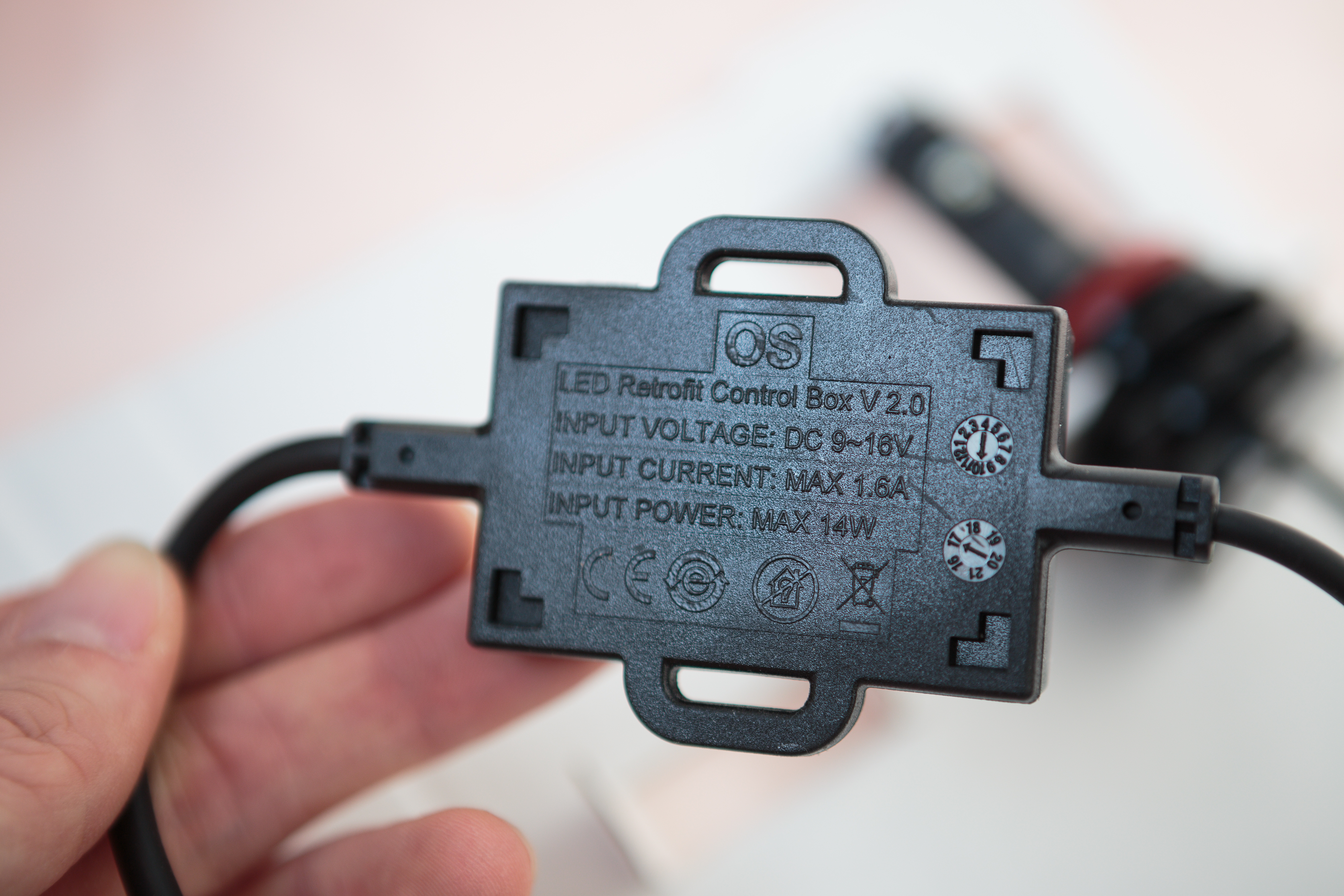

The left fog lamp went out. After dismantling the “non-serviceable” housing, it was found that moisture had entered the control unit through the power cable. The driver was repaired, and the lamps worked for another month.

Soon, the left lamp failed again, this time taking a 10A fuse (driver’s side No. 26) with it. Moisture was again the culprit, causing almost everything inside the block to burn out.

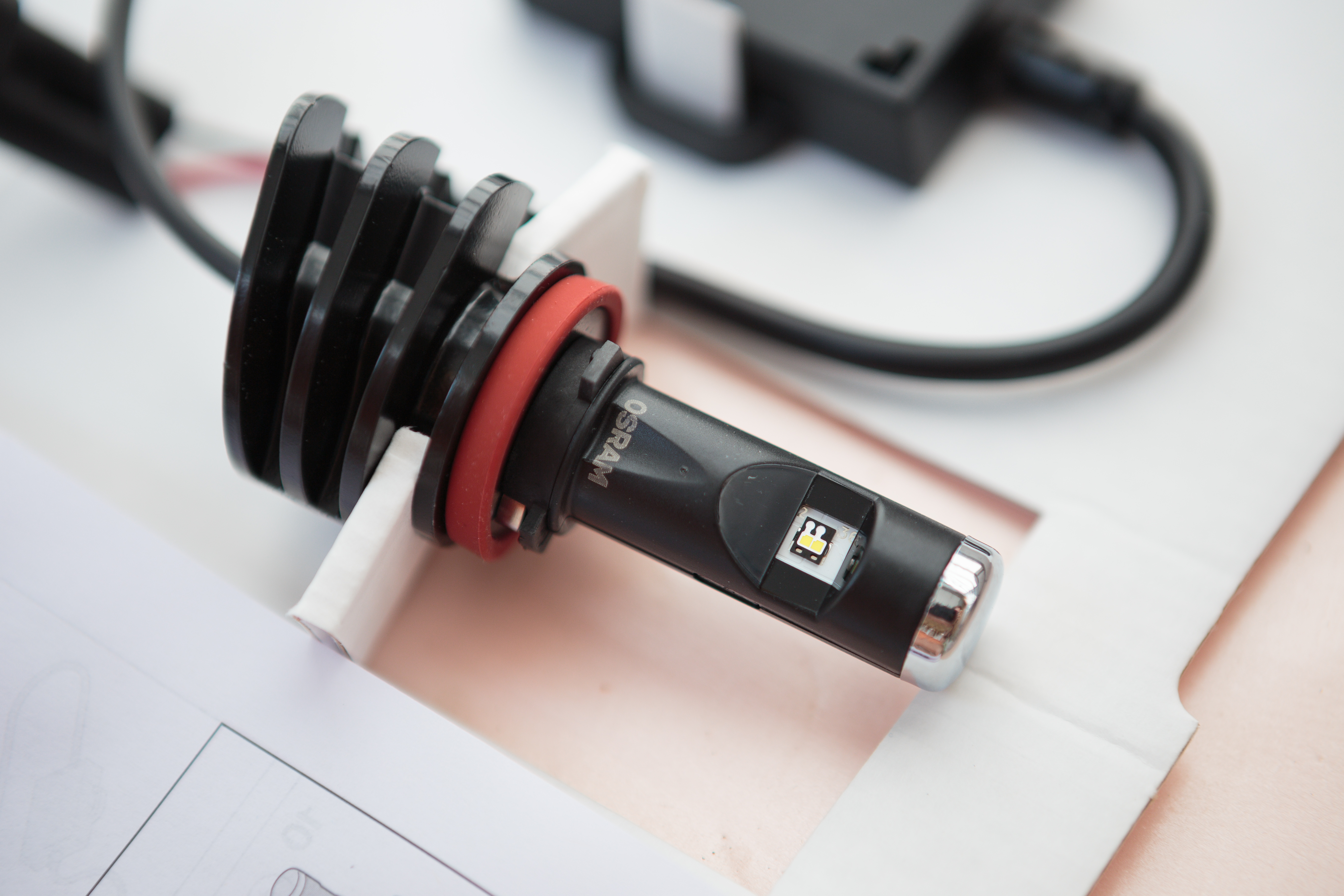

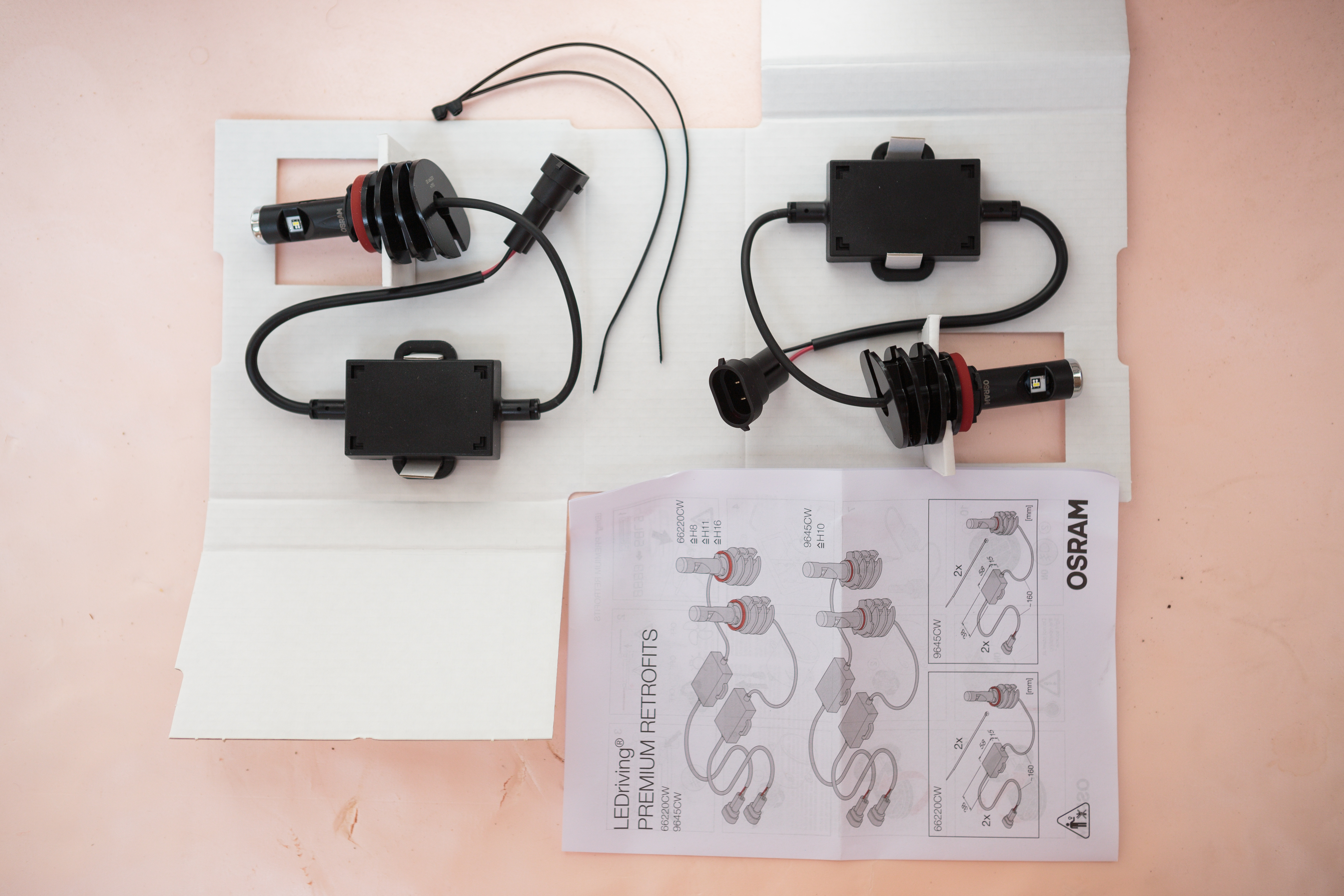

The same type of lamps was ordered.

/posts/car/011/01.jpg /posts/car/011/02.jpg /posts/car/011/03.jpg /posts/car/011/04.jpg

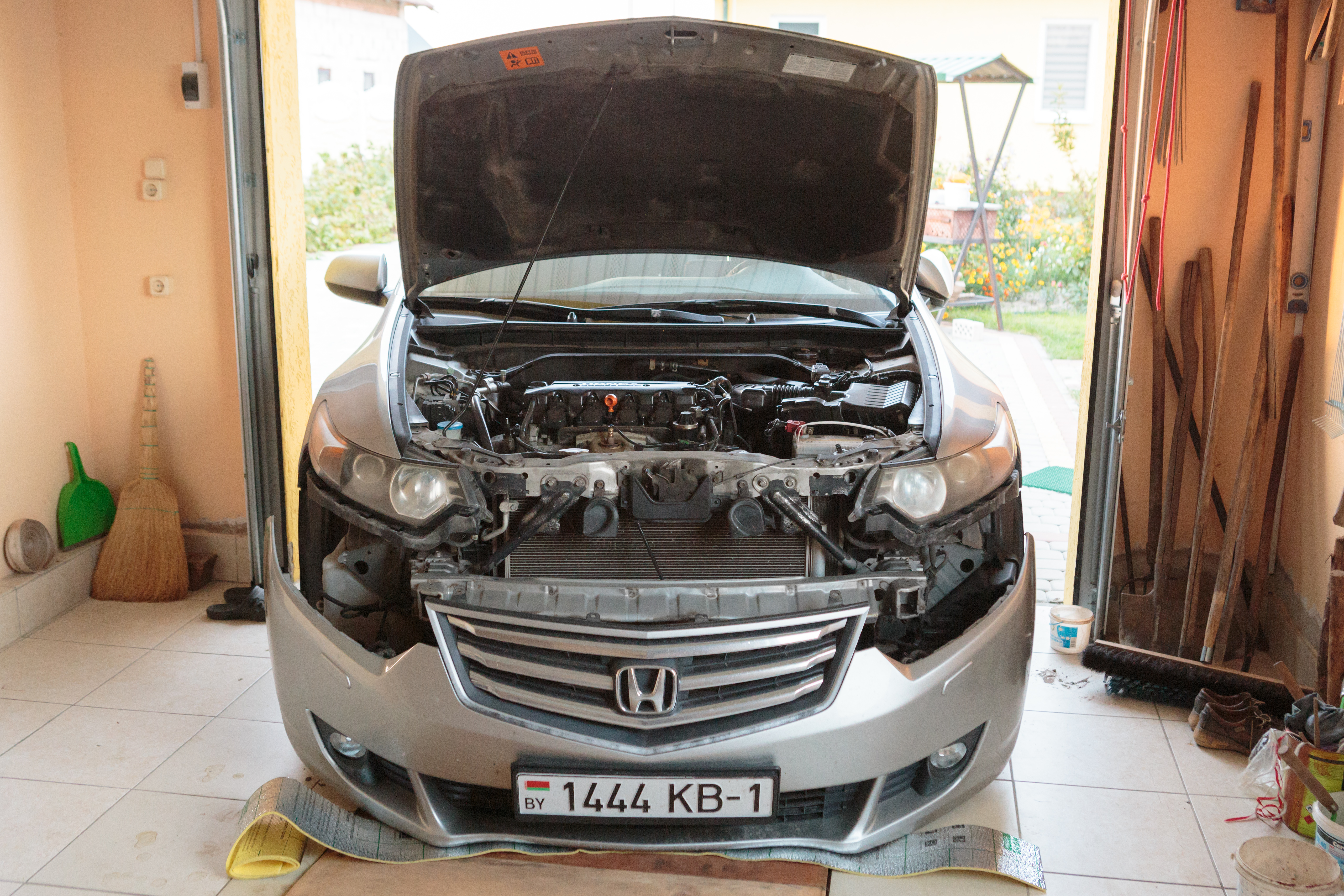

During installation, the wire entry point into the control unit was sealed with silicone, suspecting that liquid entered from the headlight washer hose.

/posts/car/011/05.jpg

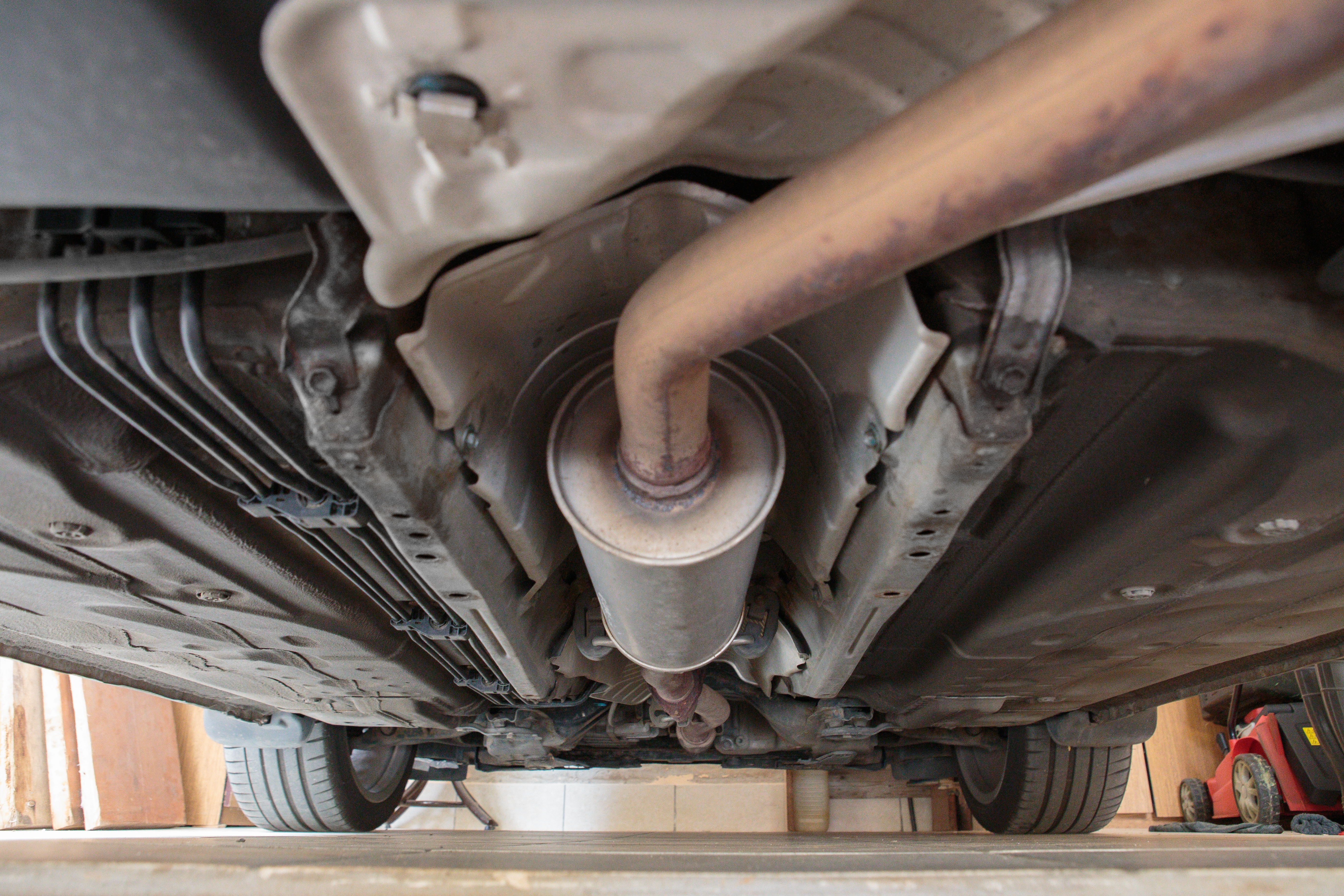

Preventative measures:

  • Anti-corrosion update on beams and welds / Dinitrol 4941
  • Headlight washer hoses, sealing rubbers, and wires were coated with silicone / LiquiMoly 3312
  • All bolts were lubricated with WD-40
/posts/car/011/06.jpg

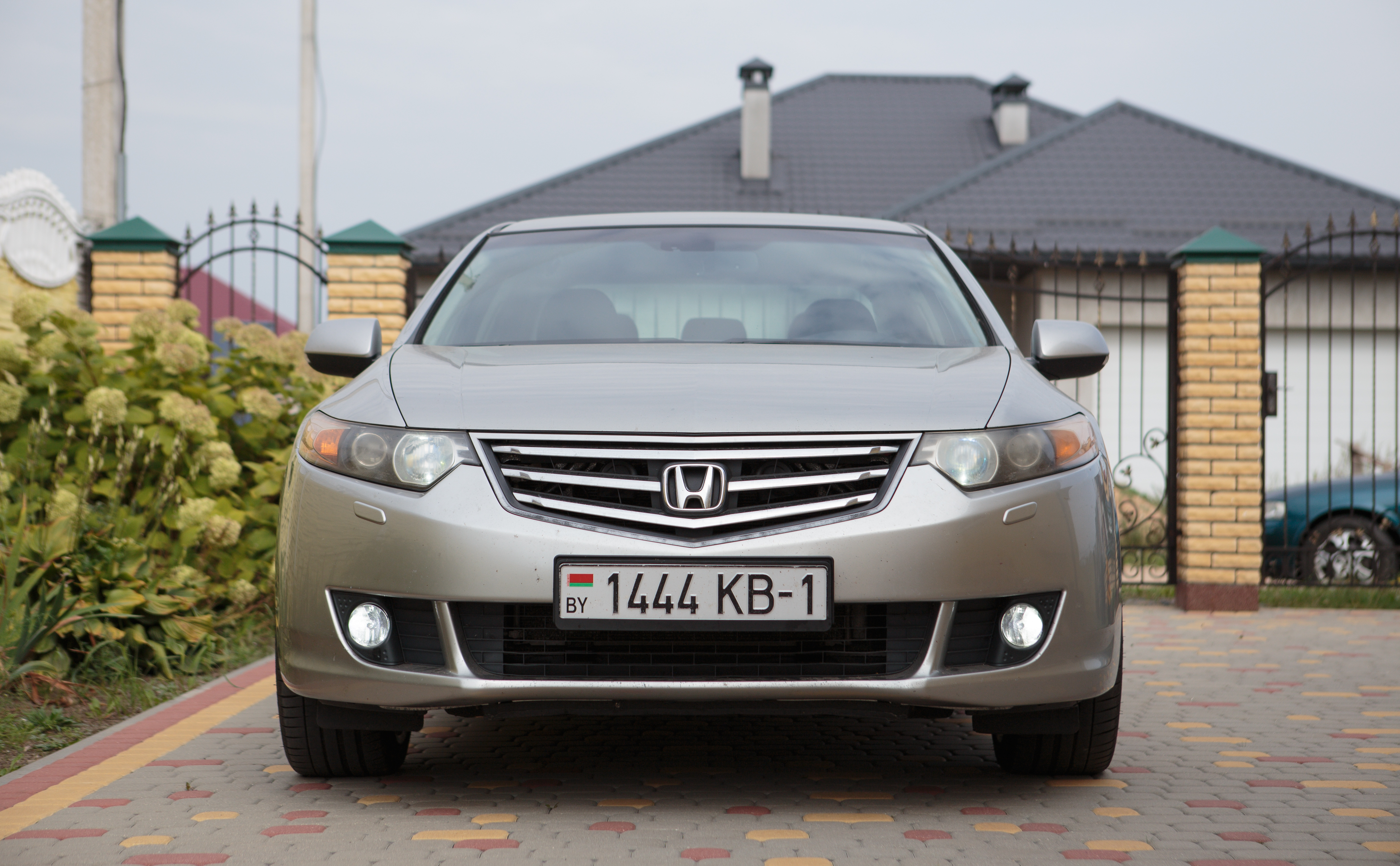

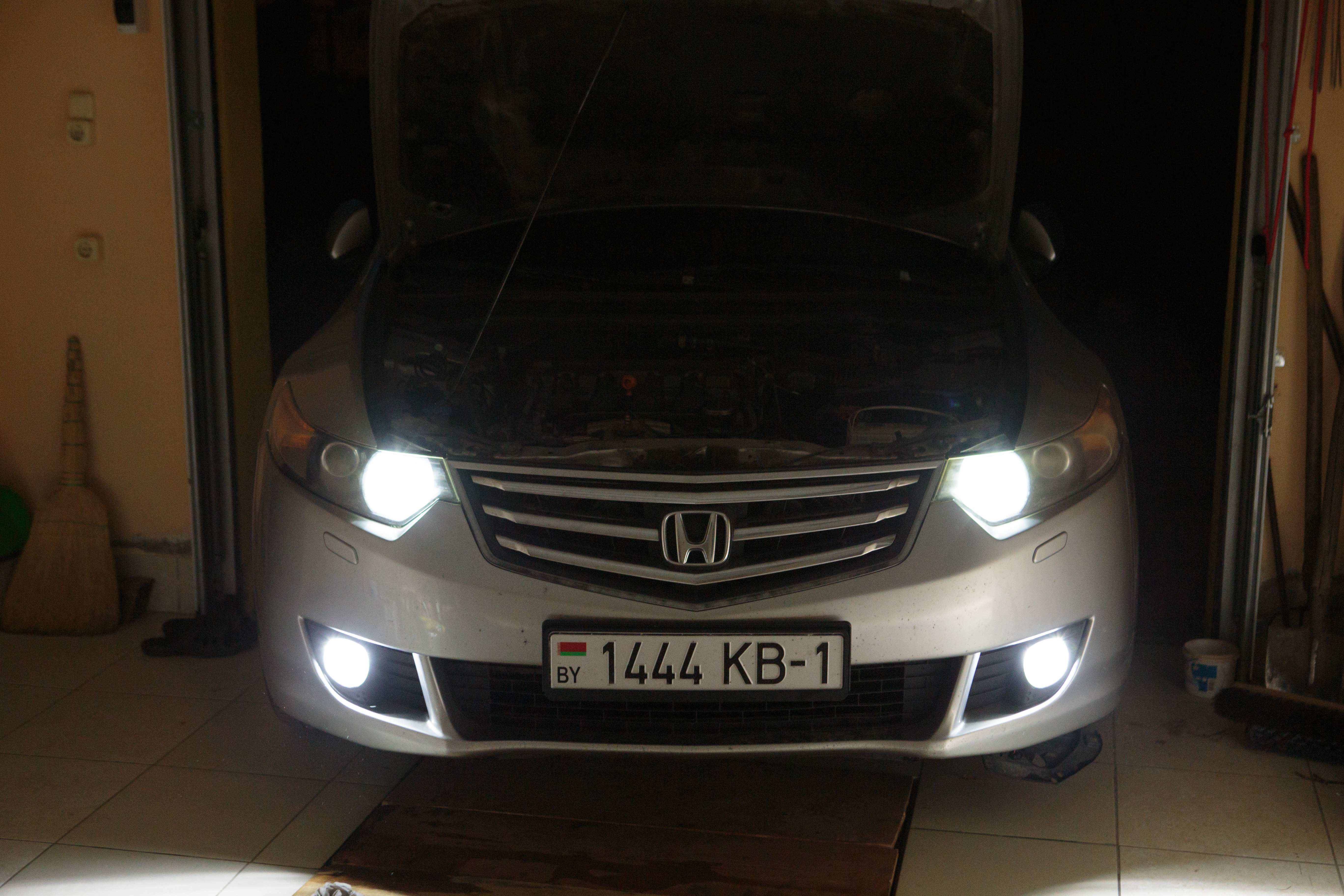

Although a lux meter wasn’t available, subjectively, the lamps are bright. The fog lamps were adjusted at the service station, not causing glare. The color is white, without any hint of blue or yellowness.

/posts/car/011/07.jpg /posts/car/011/08.jpg

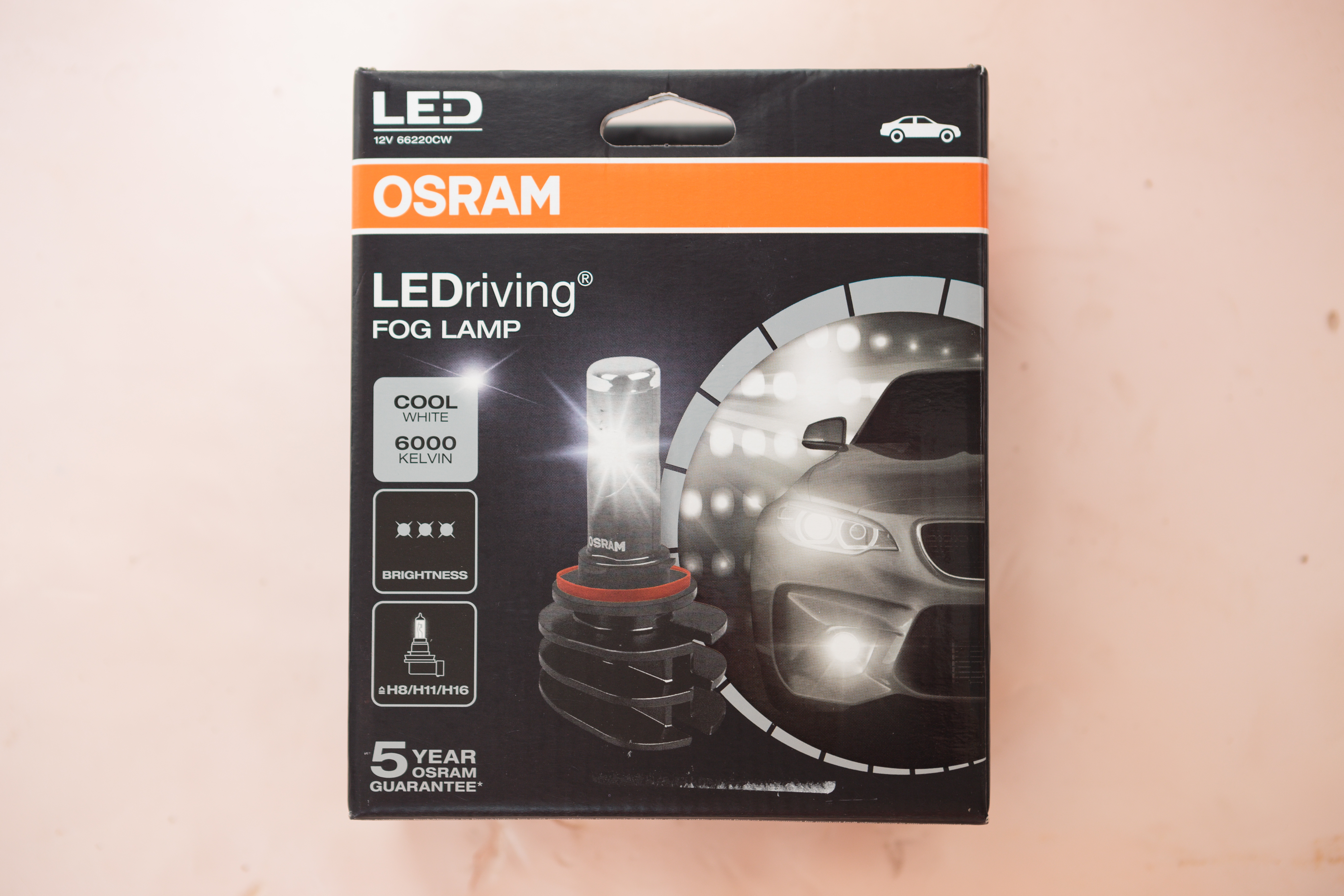

  • Fog lamp bulb set / Osram 66220CW / 83 USD

  • 10A Fuse / Honda 38221SNAA41 / 2.4 USD

  • Thixotropic corrosion inhibitor / Dinitrol 4941/CAR 500 ml / 6.6 USD

  • Silicone lubricant / Liqui Moly 3312 / 11.5 USD

  • Total cost: 103 USD

  • Mileage: 197 752 km
