Belt, Alternator Pulley, Bushings, Silent Blocks, Air Filter

During a routine inspection, it was recommended to replace the rear stabilizer bushings and silent blocks (bushings) of the rear hub. Obtaining the bushings posed no challenge, but the original silent blocks come pre-assembled with arms, stabilizers, and hubs.

The delivery time for the Honda 52210-TC0-T00 steering knuckle ranges from 57 to 129 days. Consequently, Febest HAB-201 lower rear hub silent blocks were temporarily installed. The bolts and fittings for the bushings were replaced, too.

/posts/car/007/01.jpg /posts/car/007/02.jpg /posts/car/007/03.jpg

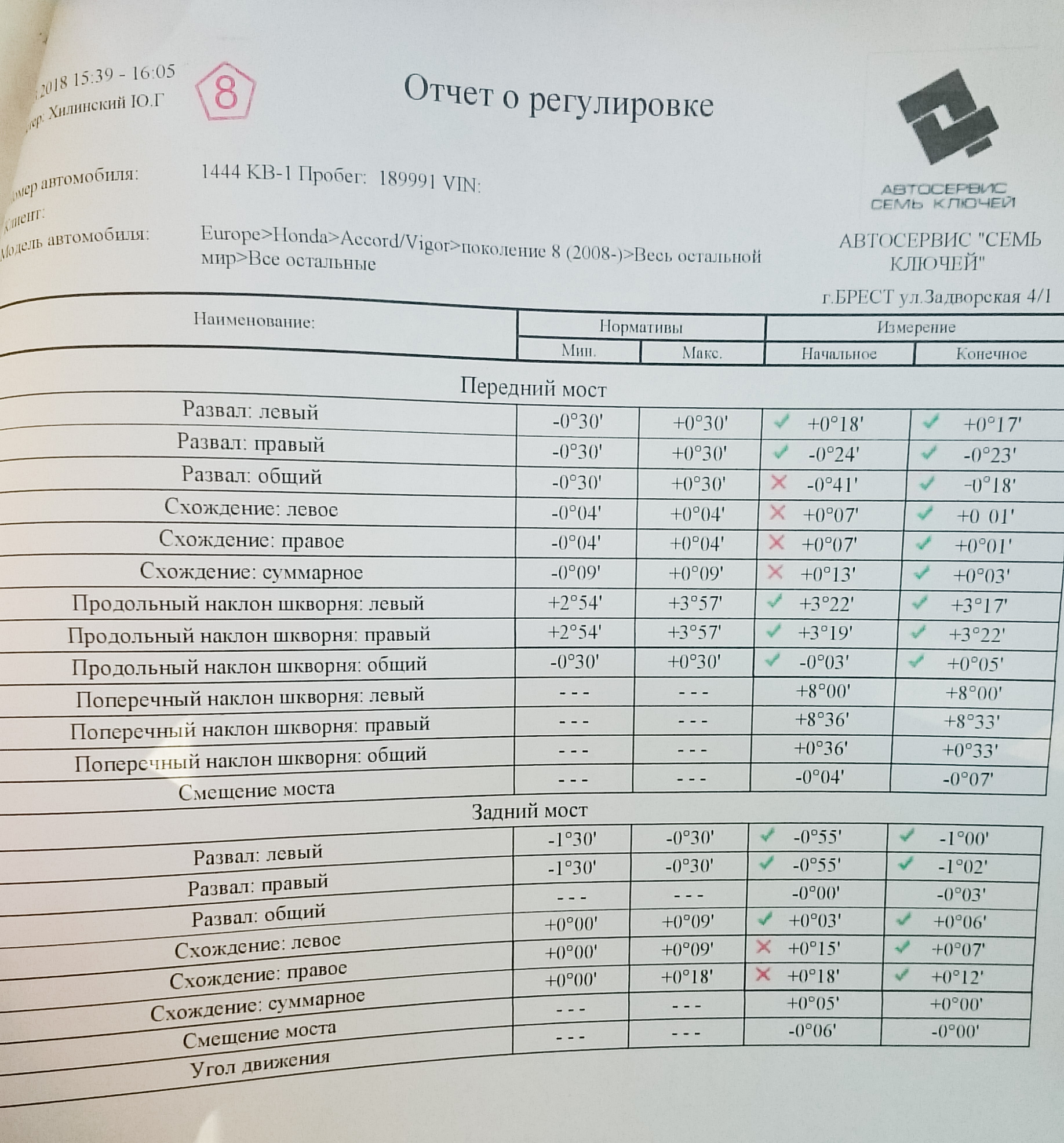

Following the suspension work, a wheel alignment was conducted to correct a slight drift to the right.

/posts/car/007/04.jpg

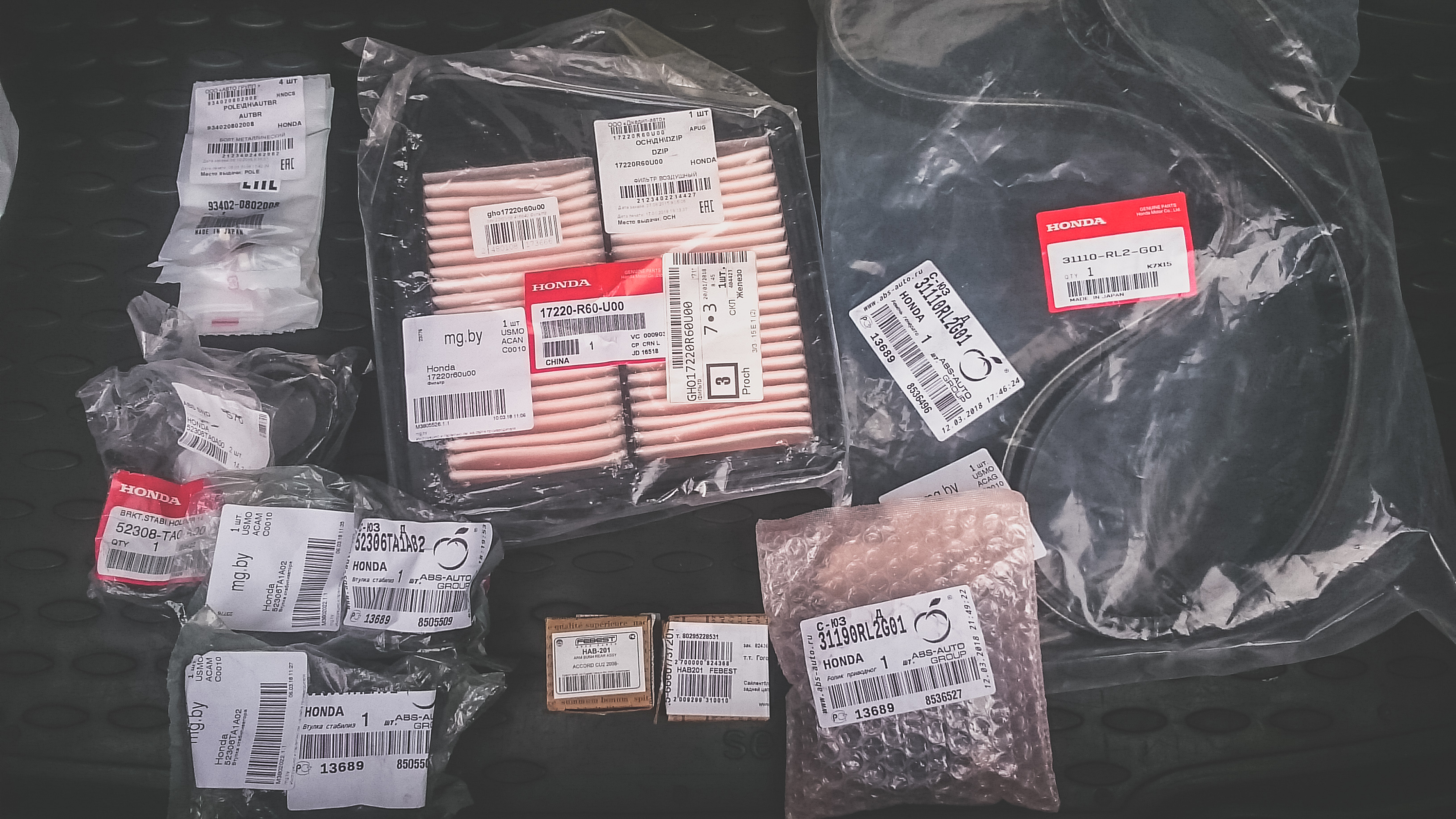

Parts replaced:

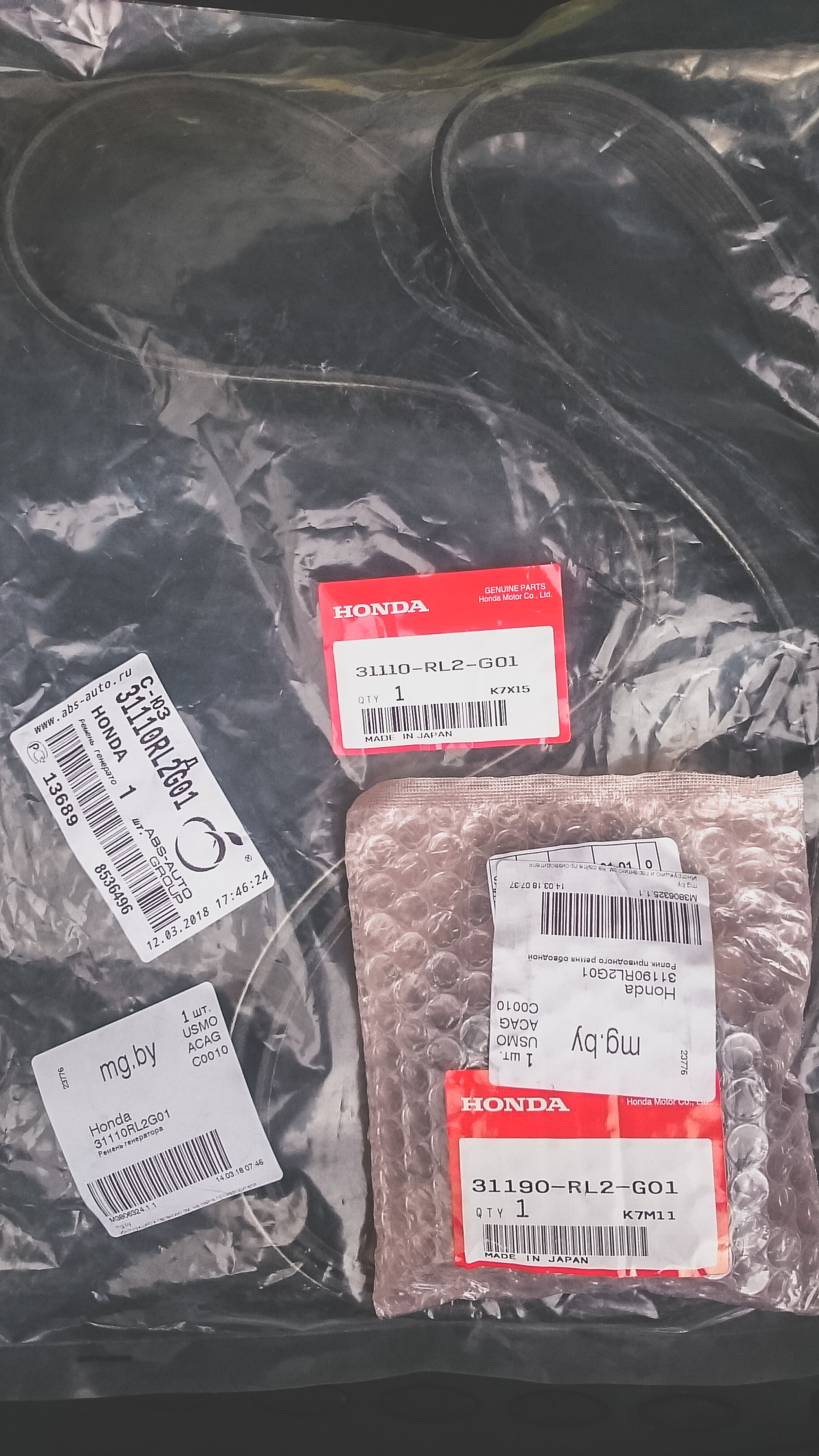

  • Idler pulley / Honda 31190-RL2-G01
  • Alternator belt / Honda 31110-RL2-G01

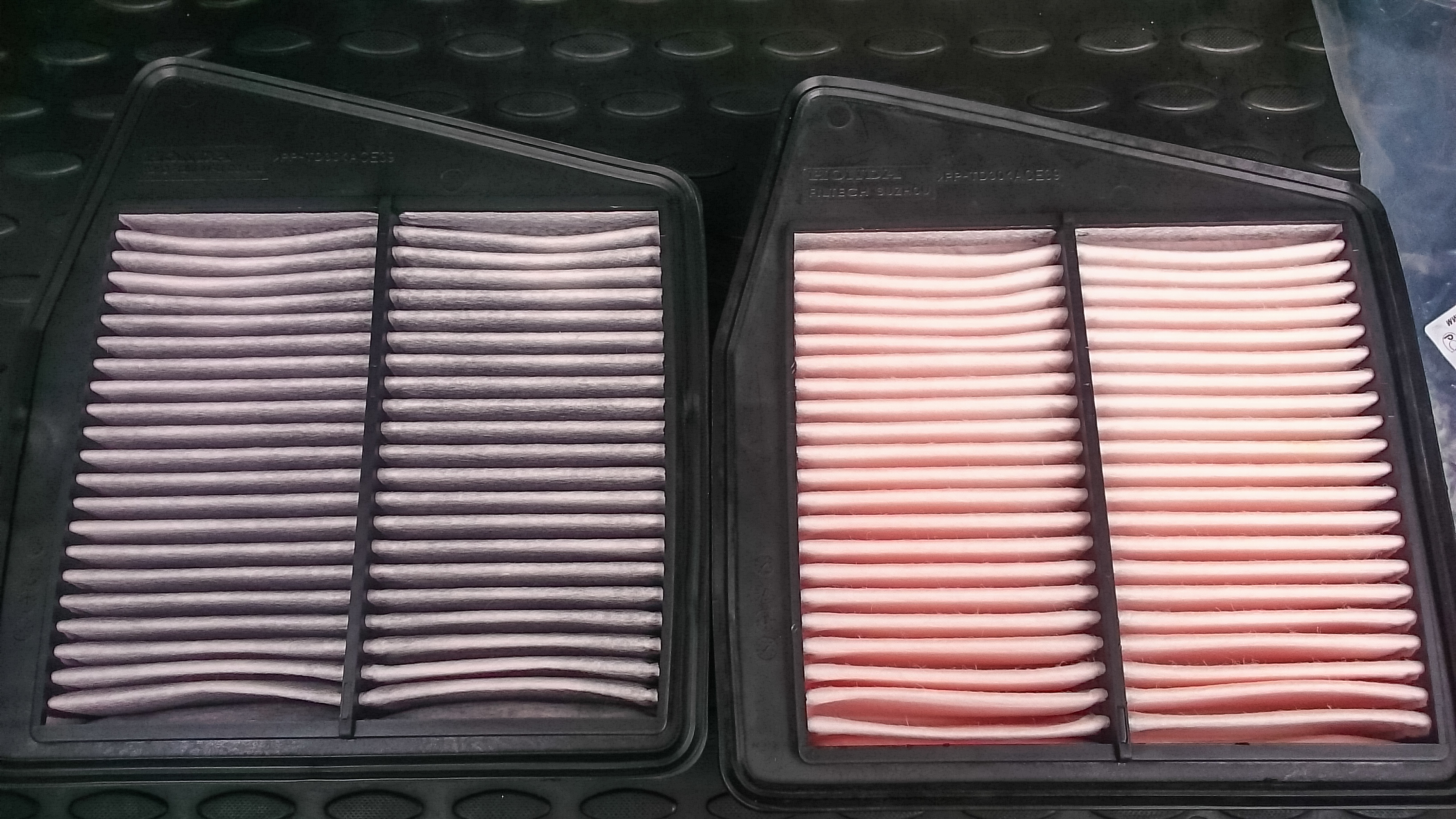

  • Air filter / Honda 17220-R60-U00
  • Stabilizer bushing / Honda 52306-TA1-A02
  • Stabilizer bushing bracket / Honda 52308-TA0-A00
  • Bolt 8x20 / Honda 934020802008
  • Rear hub silent block / Febest HAB-201
